Contact for Pricing
Minimum Qty: 10
Multiplier: 10
*Contact for lower quantities*

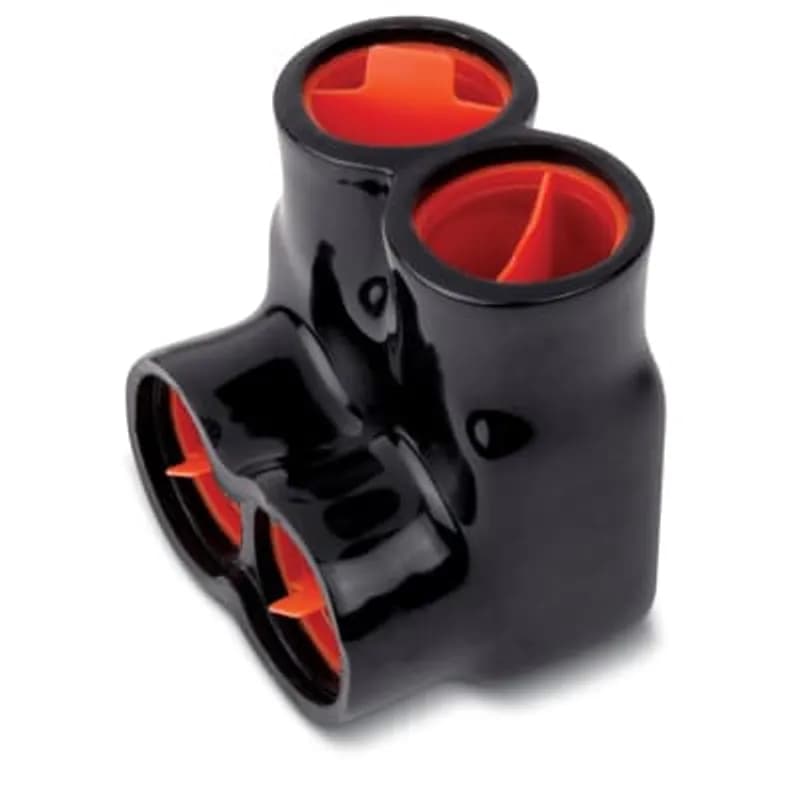

Overview
- Accommodates wire ranges from 500 kcmil to 6 AWG stranded conductors
- 2-port same-side design simplifies wiring layouts and reduces clutter
- Compact dimensions: 2.71" L x 2.38" W x 2.75" H for tight panel spaces
- Black PVC insulation with UV resistance for outdoor or exposed installations
- 3/8-inch hex size for easy tightening with standard tools
Specifications
Color | Black |
Connection Type | Same Side Connector |
Current Rating | 500 kcmil |
Material | PVC |
Series | AMT |
Size | 2.71 Inches (Length) x 2.38 Inches (Width) x 2.75 Inches (Height), Hex Size 3/8 Inch |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.6300 L |
Package Weight (Metric) | 0.2860 kg |
AMTD35064
AMT 4 Multi-Port Both Sides PVC Connector, Ultraviolet Resistant, Wire Range 350 kcmil-6 Str, Length 4.26 Inches, Width 3.0 Inches, Height 2.5 Inches, Hex Size 3/8 Inch, Black Insulation
IPCS7501
Insulation Piercing Connector 750 MCM - 3/0 AWG Insulation piercing connectors are made for use with copper-copper, copper to aluminum and aluminum to aluminum applications. They are safe to use and are completely insulated, no need to strip wire. They can be installed on energized conductors with no contact at any point. No spacer required between connections. Exclusive "turbo spacer" keeps tap side open while main conductor is being tightened. Watertight and corrosion-free.
CSR 500
Aluminum Multi-Tap Encapsulated Splice One-Way Configuration - 2 Outlets, Wire Range 2/0-500, Screw Size 3/8 Hex
AMTS4145
AMT 5 Port Same Side PVC Connector for Wire Range 4-14 Str, Length 2.61 Inches, Width 1.25 Inches, Height 1.25 Inches, Slotted Screw, Black InsulationAMTS4146
AMT 6 Port Same Side PVC Connector for Wire Range 4-14 Str, Length 3.09 Inches, Width 1.25 Inches, Height 1.25 Inches, Slotted Screw, Black InsulationAMTS35066
AMT 6 Port Same Side PVC Connector, Ultraviolet Resistant, Wire Range 350 kcmil-10 Str, Length 6.30 Inches, Width 2.37 Inches, Height 2.50 Inches, Hex Size 5/16 Inch, Black InsulationAMTS50046
AMT 6 Port Same Side PVC Connector, Wire Range 500 kcmil-6 Str, Length 7.81 Inches, Width 2.38 Inches, Height 2.75 Inches, Hex Size 5/16 Inch, Black Insulation
AMTS50044
AMT 4 Port Same Side PVC Connector, Ultraviolet Resistant, Wire Range 500 kcmil-6 Str, Length 5.26 Inches, Width 2.38 Inches, Height 2.75 Inches, Hex Size 5/16 Inch, Black InsulationFrequently Asked Questions
What wire sizes does this connector support?
The connector supports wire sizes from 500 kcmil to 6 AWG stranded conductors.
What is the hex size for tightening the connector?
The hex size for tightening is 3/8 inch.
What are the dimensions of the connector?
The connector measures 2.71 inches in length, 2.38 inches in width, and 2.75 inches in height.
Is this connector suitable for outdoor use?
Yes, the connector features UV-resistant PVC insulation for outdoor applications.
What is the insulation material?
The insulation is made of black PVC, providing durability and UV resistance.
