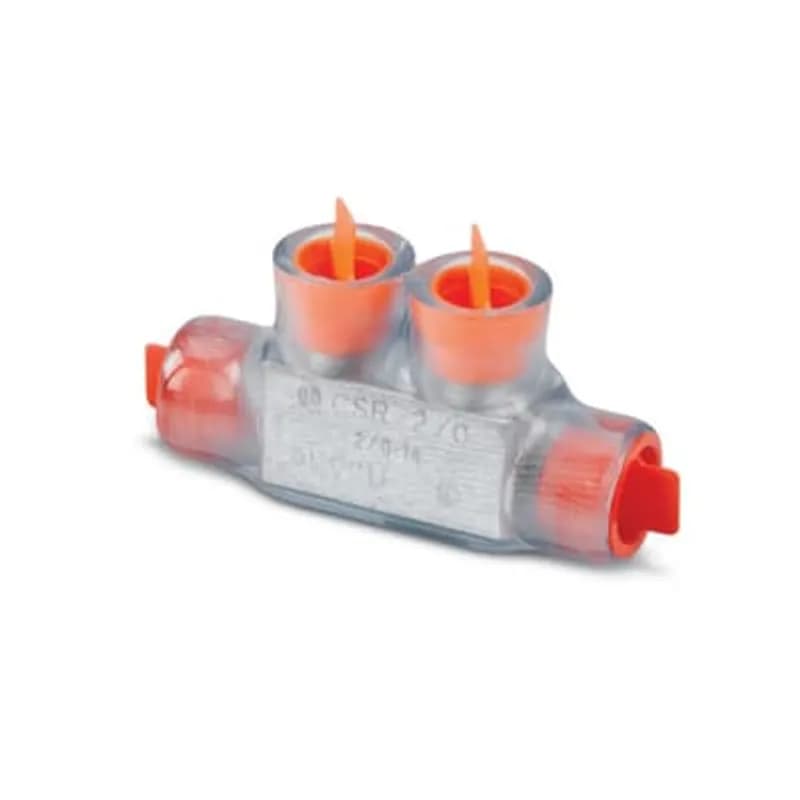

ABB - Installation Products CSR 2/0 - Aluminum Multi-Tap Encapsulated Splice One-Way Configuration - 2 Outlets, Wire Range #14-2/0, Screw Size 3/8 Hex

ABB Installation Products CSR 2/0 Aluminum Multi-Tap Encapsulated Splice One-Way Configuration - 2 Outlets, Wire Range…

UPC: 783786715305


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 10

Multiplier: 10

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB CSR 2/0 is a dual-rated, one-way encapsulated aluminum multi-tap splice designed for reliable electrical connections. It features two outlets and accommodates a wire range from #14 AWG to 2/0 AWG, making it suitable for branching conductors from a main run. The splice utilizes 3/8" hex screws for secure termination, ensuring long-term performance and resistance to vibration. Its encapsulated design provides protection against environmental factors, enhancing longevity and reducing maintenance. The compact dimensions are 0.95" L x 0.45" W x 0.56" H, with an internal dimension (I) of 0.53". A solid barrier wire stop is integrated to prevent conductor over-insertion, improving installation consistency and reducing the risk of short circuits. This splice has a 90°C rating, making it suitable for applications requiring elevated temperature resistance, such as industrial machinery, HVAC systems, and renewable energy installations. The design simplifies splicing tasks, reducing labor time and improving system reliability.
  • Accommodates wire range #14 AWG to 2/0 AWG
  • Two outlets for branching conductors
  • 3/8" hex screws for secure termination
  • Encapsulated design for environmental protection
  • Integrated solid barrier wire stop
  • 90°C temperature rating
  • Compact dimensions: 0.95" L x 0.45" W x 0.56" H

Specifications

Connection Type
Screw
Material
Aluminum
Poles
2 Outlets
Series
CSR
Size
#14-2/0
Size
#14-2/0 AWG
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.0800 L
Package Weight (Metric)
0.0360 kg
