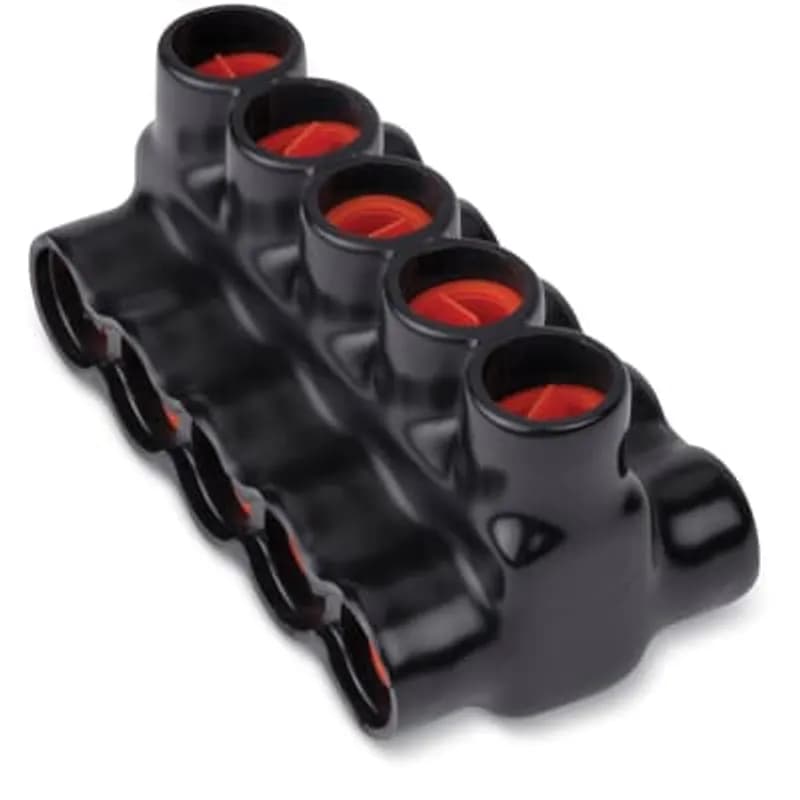

ABB Installation Products AMTD50045 AMT 5 Multi-Port Both Sides PVC Connector, Ultraviolet Resistant, Wire Range 500 kcmil-4…
UPC: 783786524235
Documents & Media
Contact for Pricing
Minimum Qty: 10
Multiplier: 10
*Contact for lower quantities*
Call (262) 252-1600 or email [email protected] for pricing and availability.
Overview
- UV Resistant PVC Construction for Durability
- Multi-Port Design for Versatile Wiring
- Accommodates Wire Range 500 kcmil - 4 Stranded
- Compact Dimensions: 6.53" L x 3.0" W x 2.75" H
- 3/8 Inch Hex Size for Easy Installation
Specifications
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.6000 L |
Package Weight (Metric) | 0.7260 kg |
IPCS7501
Insulation Piercing Connector 750 MCM - 3/0 AWG Insulation piercing connectors are made for use with copper-copper, copper to aluminum and aluminum to aluminum applications. They are safe to use and are completely insulated, no need to strip wire. They can be installed on energized conductors with no contact at any point. No spacer required between connections. Exclusive "turbo spacer" keeps tap side open while main conductor is being tightened. Watertight and corrosion-free.
54740TP
Copper C-Tap for 600V Applications, Wire Range Main: 2-1/0, Branch 2-12, Length 1-1/16 Inches, Height 31/32 Inch, Tin Plated, Die Code 50, Die Color Code Orange
AMTD25068
AMT 8 Multi-Port Both Sides PVC Connector, Ultraviolet Resistant, Wire Range 250 kcmil-6 Str, Length 7.95 Inches, Width 2.64 Inches, Height 2.13 Inches, Hex Size 5/16 Inch, Black Insulation
AMTS50042
AMT 2 Port Same Side PVC Connector, Ultraviolet Resistant, Wire Range 500 kcmil-6 Str, Length 2.71 Inches, Width 2.38 Inches, Height 2.75 Inches, Hex Size 3/8 Inch, Black Insulation
CSR 500
Aluminum Multi-Tap Encapsulated Splice One-Way Configuration - 2 Outlets, Wire Range 2/0-500, Screw Size 3/8 Hex
AMTS4145
AMT 5 Port Same Side PVC Connector for Wire Range 4-14 Str, Length 2.61 Inches, Width 1.25 Inches, Height 1.25 Inches, Slotted Screw, Black InsulationAMTS4146
AMT 6 Port Same Side PVC Connector for Wire Range 4-14 Str, Length 3.09 Inches, Width 1.25 Inches, Height 1.25 Inches, Slotted Screw, Black InsulationAMTS35066
AMT 6 Port Same Side PVC Connector, Ultraviolet Resistant, Wire Range 350 kcmil-10 Str, Length 6.30 Inches, Width 2.37 Inches, Height 2.50 Inches, Hex Size 5/16 Inch, Black InsulationFrequently Asked Questions
What wire sizes does the ABB AMT 5 connector support?
The ABB AMT 5 Multi-Port Connector supports a wire range from 500 kcmil down to 4 Stranded wire.
Is this ABB connector suitable for outdoor use?
Yes, the connector is made of Ultraviolet (UV) resistant PVC, making it suitable for outdoor or sun-exposed applications.
What are the dimensions of the AMT 5 connector?
The connector has a length of 6.53 inches, a width of 3.0 inches, and a height of 2.75 inches.
What tool is needed for installation?
A 3/8 inch hex tool is required for the installation of this connector.
What is the insulation color of this connector?
The insulation color of the ABB AMT 5 Multi-Port Connector is black.
