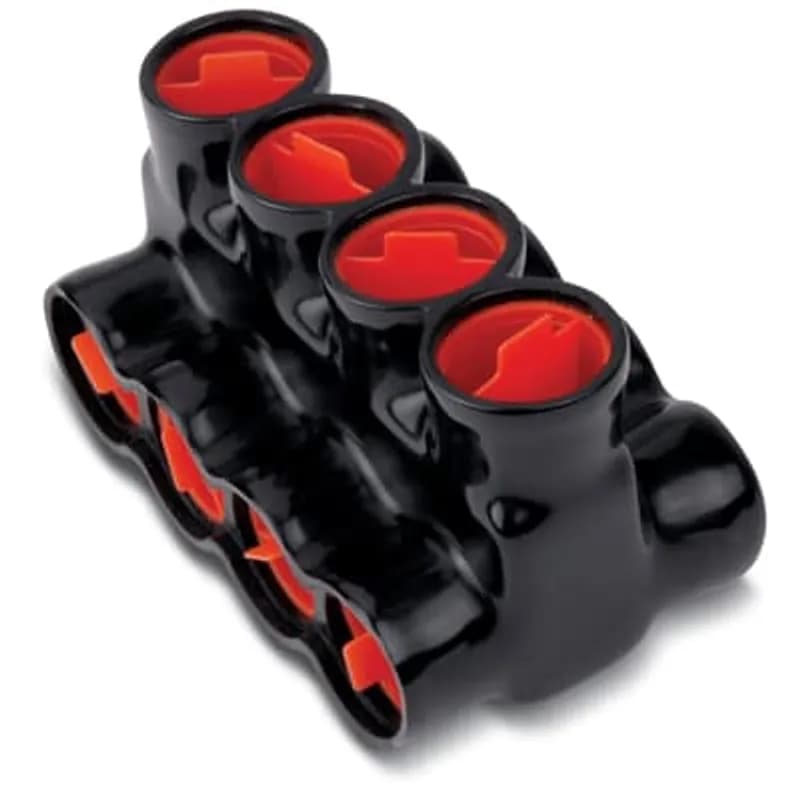

ABB - Installation Products AMTD50044 - AMT 4 Multi-Port Both Sides PVC Connector, Ultraviolet Resistant, Wire Range 500 kcmil-4 Str, Length 5.26 Inches, Width 3.0 Inches, Height 2.75 Inches, Hex Size 3/8 Inch, Black Insulation

ABB Installation Products AMTD50044 AMT 4 Multi-Port Both Sides PVC Connector, Ultraviolet Resistant, Wire Range 500 kcmil-4…

UPC: 783786503124

Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 10

Multiplier: 10

*Contact for lower quantities*

Call (262) 252-1600 or email [email protected] for pricing and availability.

Overview

The ABB AMTD50044 is a 4-port PVC compression connector designed for terminating 500 kcmil-4 stranding wires on both sides. This multi-port connector provides a secure, weatherproof termination for industrial and commercial wiring systems where UV resistance and long-term durability are required. Key specifications include a compact 5.26-inch length, 3.0-inch width, and 2.75-inch height, making it suitable for tight installation spaces. The connector features a 3/8-inch hex size for tool compatibility with standard compression tools. The black insulation provides electrical insulation and UV resistance, ensuring reliable performance in outdoor or exposed environments. This connector is ideal for applications such as power distribution panels, motor control centers, and renewable energy systems where multiple large conductors must be terminated efficiently. The multi-port design reduces the need for multiple single-port connectors, simplifying installation and reducing material costs. The compression design ensures a gas-tight, corrosion-resistant connection that meets industry standards for electrical conductivity and mechanical strength.
  • 4-port design for terminating 500 kcmil-4 stranding wires on both sides
  • UV-resistant black PVC insulation for outdoor and exposed environments
  • Compact dimensions: 5.26" length x 3.0" width x 2.75" height
  • 3/8" hex size for compatibility with standard compression tools
  • Compression design ensures gas-tight, corrosion-resistant connections

Specifications

Color
Black
Material
PVC
Series
AMT 4 Multi-Port Both Sides
Size
Length 5.26 Inches, Width 3.0 Inches, Height 2.75 Inches
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.3000 L
Package Weight (Metric)
0.5900 kg
