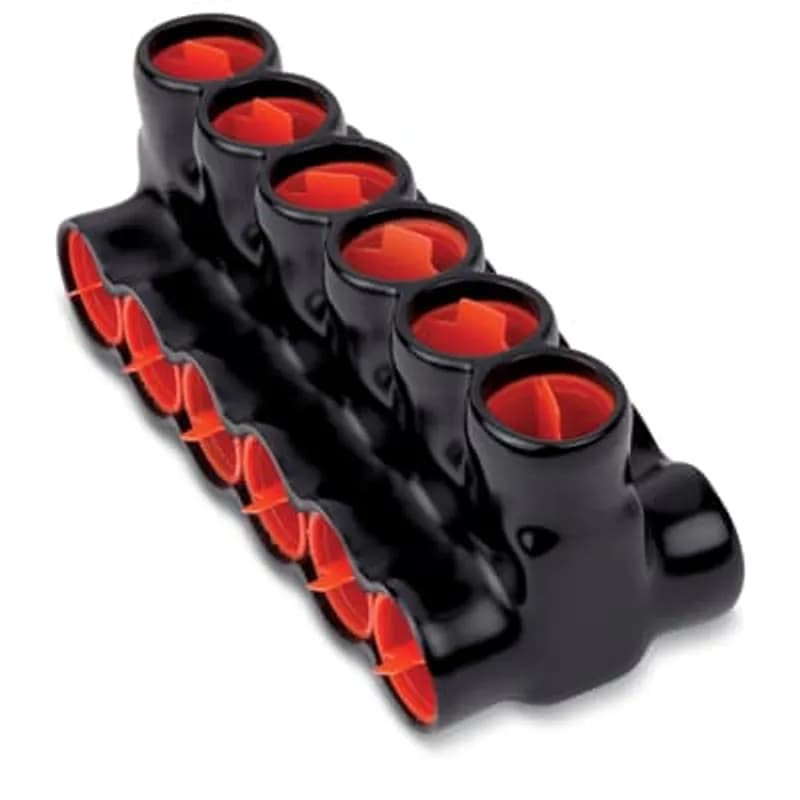

ABB - Installation Products AMTD50046 - AMT 6 Multi-Port Both Sides PVC Connector, Ultraviolet Resistant, Wire Range 500 kcmil-4 Str, Length 7.81 Inches, Width 3.0 Inches, Height 2.75 Inches, Hex Size 3/8 Inch, Black Insulation

ABB Installation Products AMTD50046 AMT 6 Multi-Port Both Sides PVC Connector, Ultraviolet Resistant, Wire Range 500 kcmil-4…

UPC: 783786503131

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 10

Multiplier: 10

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB AMTD50046 is a 6-port, both-sides PVC connector designed for terminating 500 kcmil-4 conductor cables in industrial and commercial installations. This connector features ultraviolet-resistant PVC insulation, ensuring long-term performance in exposed outdoor environments without degradation from sunlight exposure. The 7.81-inch length, 3.0-inch width, and 2.75-inch height provide ample space for cable routing and termination, while the 3/8-inch hex size allows for secure tightening with standard tools. This connector is ideal for applications requiring multi-conductor terminations, such as motor control centers, switchgear, and distribution panels. The PVC construction offers electrical insulation and mechanical protection, reducing the risk of short circuits and physical damage. The 500 kcmil wire range accommodates large conductors commonly used in high-current industrial circuits. ABB’s Installation Products line delivers reliable, code-compliant solutions for electrical installations. The AMTD50046 is a direct replacement for applications requiring a multi-port, both-sides connector with UV resistance and high-current capacity. For installations where environmental durability and conductor management are critical, this connector provides a proven, cost-effective solution.
  • 6-port both-sides design for multi-conductor terminations
  • UV-resistant PVC insulation for outdoor and exposed installations
  • Accommodates 500 kcmil-4 conductor cables
  • Dimensions: 7.81" L x 3.0" W x 2.75" H
  • Hex size 3/8" for secure tool tightening

Specifications

Color
Black
Material
PVC
Series
AMT 6 Multi-Port Both Sides
Size
Length 7.81 Inches, Width 3.0 Inches, Height 2.75 Inches
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
2.1300 L
Package Weight (Metric)
0.9660 kg
