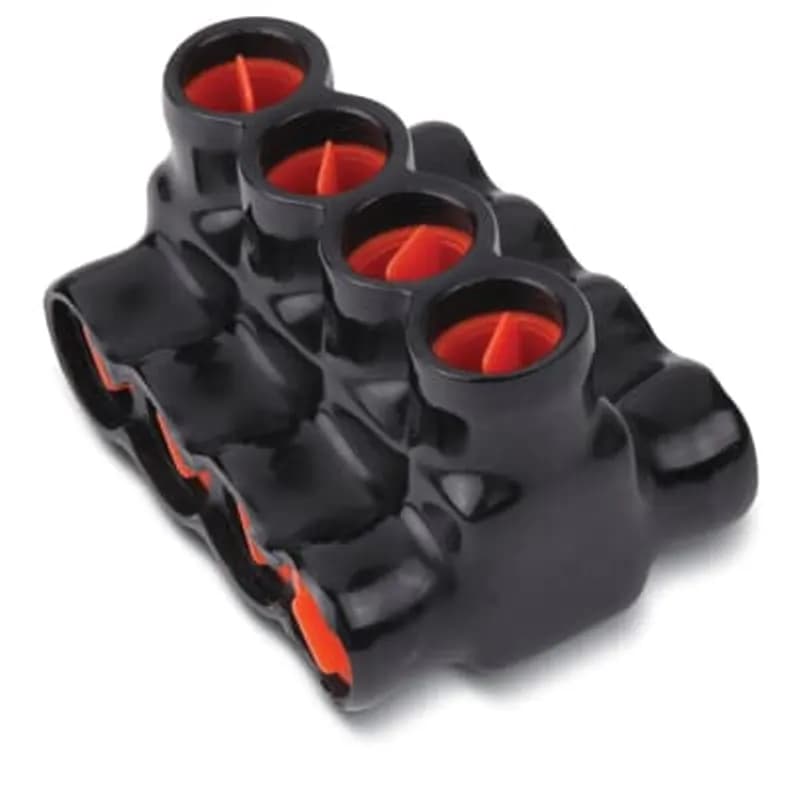

ABB - Installation Products AMTD35063 - AMT 3 Multi-Port Both Sides PVC Connector, Ultraviolet Resistant, Wire Range 350 kcmil-6 Str, Length 3.24 Inches, Width 3.0 Inches, Height 2.5 Inches, Hex Size 3/8 Inch, Black Insulation

ABB Installation Products AMTD35063 AMT 3 Multi-Port Both Sides PVC Connector, Ultraviolet Resistant, Wire Range 350 kcmil-6…

UPC: 783786524150

Documents & Media
Manufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB AMTD35063 AMT 3 Multi-Port Both Sides PVC Connector is a robust and reliable solution engineered for demanding electrical installations. This connector is specifically designed with ultraviolet resistance, ensuring its integrity and performance even when exposed to direct sunlight or artificial UV sources, preventing material degradation over time. It features a multi-port configuration, allowing for wire entry from both sides, which significantly streamlines complex wiring setups and enhances overall electrical connectivity. The connector is constructed from durable PVC material, providing a strong and resilient housing for electrical connections. The insulation is black, contributing to clear identification and organization within electrical systems. The AMTD35063 is engineered to accommodate a broad wire range, accepting stranded conductors from 350 kcmil down to 6 AWG. This wide compatibility makes it exceptionally versatile for a variety of high-current applications, including those found in industrial electrical panels, control cabinets, and junction boxes. The physical dimensions of the connector are precisely measured: a length of 3.24 inches, a width of 3.0 inches, and a height of 2.5 inches. For secure and reliable installation, it requires a 3/8 inch hex size. This combination of features ensures that the ABB AMTD35063 provides efficient power distribution and signal routing in commercial, industrial, and utility environments where dependable performance is paramount. Its compact dimensions also make it suitable for installations where space is a critical consideration, without compromising on its robust construction and operational reliability.
  • Accommodates wire range: 350 kcmil to 6 AWG stranded conductors
  • Ultraviolet-resistant PVC construction for outdoor and exposed environments
  • Multi-port both-sides design for flexible wire entry and routing
  • Compact dimensions: 3.24" (L) x 3.0" (W) x 2.5" (H)
  • Hex size 3/8 inch for secure mounting and tool compatibility

Specifications

Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.5600 L
Package Weight (Metric)
0.2540 kg
Insulation Piercing Connector 750 MCM - 3/0 AWG Insulation piercing connectors are made for use with copper-copper, copper to aluminum and aluminum to aluminum applications. They are safe to use and are completely insulated, no need to strip wire. They can be installed on energized conductors with no contact at any point. No spacer required between connections. Exclusive "turbo spacer" keeps tap side open while main conductor is being tightened. Watertight and corrosion-free.

IPCS7501

Insulation Piercing Connector 750 MCM - 3/0 AWG Insulation piercing connectors are made for use with copper-copper, copper to aluminum and aluminum to aluminum applications. They are safe to use and are completely insulated, no need to strip wire. They can be installed on energized conductors with no contact at any point. No spacer required between connections. Exclusive "turbo spacer" keeps tap side open while main conductor is being tightened. Watertight and corrosion-free.
Copper C-Tap for 600V Applications, Wire Range Main: 2-1/0, Branch 2-12, Length 1-1/16 Inches, Height 31/32 Inch, Tin Plated, Die Code 50, Die Color Code Orange

54740TP

Copper C-Tap for 600V Applications, Wire Range Main: 2-1/0, Branch 2-12, Length 1-1/16 Inches, Height 31/32 Inch, Tin Plated, Die Code 50, Die Color Code Orange
AMT 4 Multi-Port Both Sides PVC Connector, Ultraviolet Resistant, Wire Range 350 kcmil-6 Str, Length 4.26 Inches, Width 3.0 Inches, Height 2.5 Inches, Hex Size 3/8 Inch, Black Insulation

AMTD35064

AMT 4 Multi-Port Both Sides PVC Connector, Ultraviolet Resistant, Wire Range 350 kcmil-6 Str, Length 4.26 Inches, Width 3.0 Inches, Height 2.5 Inches, Hex Size 3/8 Inch, Black Insulation
AMT 6 Multi-Port Both Sides PVC Connector, Ultraviolet Resistant, Wire Range 350 kcmil-6 Str, Length 6.30 Inches, Width 3.0 Inches, Height 2.5 Inches, Hex Size 3/8 Inch, Black Insulation

AMTD35066

AMT 6 Multi-Port Both Sides PVC Connector, Ultraviolet Resistant, Wire Range 350 kcmil-6 Str, Length 6.30 Inches, Width 3.0 Inches, Height 2.5 Inches, Hex Size 3/8 Inch, Black Insulation
AMT 4 Multi-Port Same Side PVC Connector, Ultraviolet Resistant, Wire Range 350 kcmil-10 Str, Length 4.26 Inches, Width 2.37 Inches, Height 2.50 Inches, Hex Size 5/16 Inch, Black Insulation

AMTS35064

AMT 4 Multi-Port Same Side PVC Connector, Ultraviolet Resistant, Wire Range 350 kcmil-10 Str, Length 4.26 Inches, Width 2.37 Inches, Height 2.50 Inches, Hex Size 5/16 Inch, Black Insulation
AMT 2 Multi-Port Same Side PVC Connector, Ultraviolet Resistant, Wire Range 350 kcmil-10 Str, Length 2.22 Inches, Width 2.37 Inches, Height 2.50 Inches, Hex Size 5/16 Inch, Black Insulation

AMTS35062

AMT 2 Multi-Port Same Side PVC Connector, Ultraviolet Resistant, Wire Range 350 kcmil-10 Str, Length 2.22 Inches, Width 2.37 Inches, Height 2.50 Inches, Hex Size 5/16 Inch, Black Insulation
AMT 2 Multi-Port Same Side PVC Connector, Ultraviolet Resistant, Wire Range 250 kcmil-6 Str, Length 2.12 Inches, Width 2.13 Inches, Height 2.13 Inches, Hex Size 5/16 Inch

AMTS25062

AMT 2 Multi-Port Same Side PVC Connector, Ultraviolet Resistant, Wire Range 250 kcmil-6 Str, Length 2.12 Inches, Width 2.13 Inches, Height 2.13 Inches, Hex Size 5/16 Inch
AMT 2 Multi-Port Same Side PVC Connector, Ultraviolet Resistant, Wire Range 4-14 Str, Length 1.15 Inches, Width 1.25 Inches, Height 1.25 Inches, Slotted Screw, Black Insulation

AMTS4142

AMT 2 Multi-Port Same Side PVC Connector, Ultraviolet Resistant, Wire Range 4-14 Str, Length 1.15 Inches, Width 1.25 Inches, Height 1.25 Inches, Slotted Screw, Black Insulation

Frequently Asked Questions

What wire sizes does the AMTD35063 support?

The connector supports wire sizes ranging from 350 kcmil to 6 AWG stranded conductors.

What are the dimensions of the AMTD35063?

The connector measures 3.24 inches in length, 3.0 inches in width, and 2.5 inches in height.

What material is the AMTD35063 made from?

The AMTD35063 is made from PVC with black insulation.

Is the AMTD35063 suitable for outdoor use?

Yes, the AMTD35063 is constructed from ultraviolet-resistant PVC, making it suitable for outdoor and exposed environments.

What is the hex size for mounting the AMTD35063?

The hex size for mounting the AMTD35063 is 3/8 inch.
