Contact for Pricing
Minimum Qty: 10
Multiplier: 10
*Contact for lower quantities*

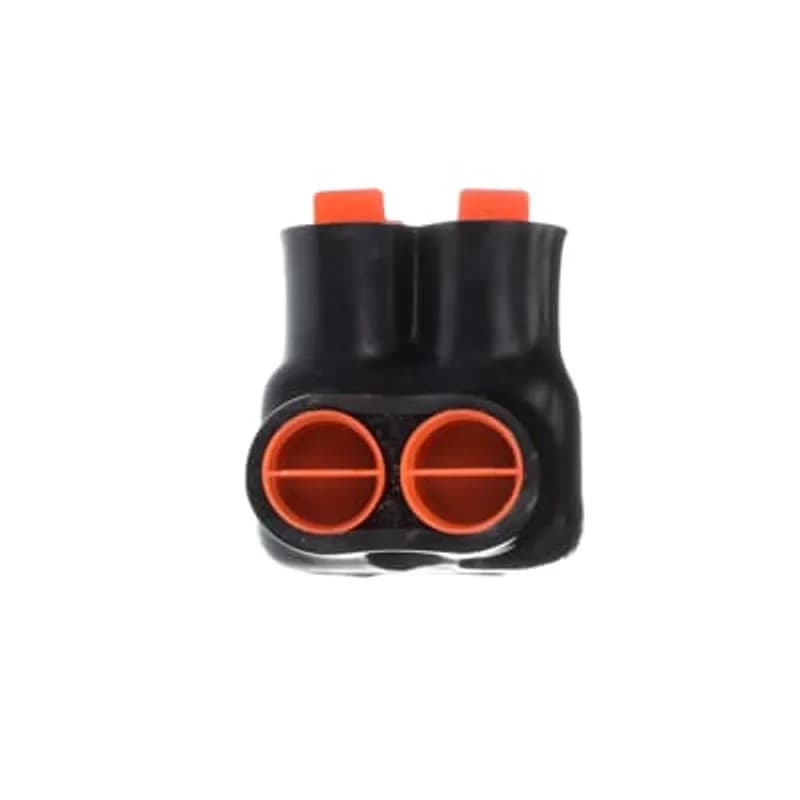

Overview
- Accommodates wire range: 250 kcmil to 6 AWG
- Ultraviolet-resistant PVC construction for outdoor durability
- Compact dimensions: 2.12" length, width, and height
- 5/16" hex size for standard tool compatibility
- Same-side port design for simplified parallel wiring
Specifications
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.2500 L |
Package Weight (Metric) | 0.1130 kg |
IPCS7501
Insulation Piercing Connector 750 MCM - 3/0 AWG Insulation piercing connectors are made for use with copper-copper, copper to aluminum and aluminum to aluminum applications. They are safe to use and are completely insulated, no need to strip wire. They can be installed on energized conductors with no contact at any point. No spacer required between connections. Exclusive "turbo spacer" keeps tap side open while main conductor is being tightened. Watertight and corrosion-free.
54740TP
Copper C-Tap for 600V Applications, Wire Range Main: 2-1/0, Branch 2-12, Length 1-1/16 Inches, Height 31/32 Inch, Tin Plated, Die Code 50, Die Color Code Orange
AMTS4142
AMT 2 Multi-Port Same Side PVC Connector, Ultraviolet Resistant, Wire Range 4-14 Str, Length 1.15 Inches, Width 1.25 Inches, Height 1.25 Inches, Slotted Screw, Black Insulation
AMTD7502505
AMT 5 Multi-Port Both Sides PVC Connector, Ultraviolet Resistant, Wire Range 750-250 kcmil, Length 7.21 Inches, Width 3.13 Inches, Height 2.38 Inches, Hex Size 3/8 Inch, Black Insulation
AMTD7502506
AMT 6 Multi-Port Both Sides PVC Connector, Ultraviolet Resistant, Wire Range 750-250 kcmil, Length 8.62 Inches, Width 3.13 Inches, Height 2.38 Inches, Hex Size 3/8 Inch, Black Insulation
AMTD7502504
AMT 4 Multi-Port Both Sides PVC Connector, Ultraviolet Resistant, Wire Range 750-250 kcmil, Length 5.81 Inches, Width 3.13 Inches, Height 2.38 Inches, Hex Size 3/8 Inch, Black Insulation
AMTD7502503
AMT 3 Multi-Port Both Sides PVC Connector, Ultraviolet Resistant, Wire Range 750-250 kcmil, Length 4.40 Inches, Width 3.13 Inches, Height 2.38 Inches, Hex Size 3/8 Inch, Black Insulation
AMTD7502502
AMT 2 Port Both Sides PVC Connector, Ultraviolet Resistant, Wire Range 750-250 kcmil, Length 3.0 Inches, Width 3.13 Inches, Height 2.38 Inches, Hex Size 3/8 Inch, Black InsulationFrequently Asked Questions
What screw type does the AMTS25062 connector use?
The AMTS25062 connector uses a 5/16 Hex screw type.
What are the dimensions of the AMTS25062 connector?
The AMTS25062 connector has a length of 2.12 in, a width of 2.13 in, and a height of 2.13 in.
What is the wire range for the AMTS25062 connector?
The AMTS25062 connector is designed for a wire range of 250 kcmil–#6 Stranded.
Are black insulated versions UL listed?
Black UV-resistant PVC insulated versions are UL® listed.
Do clear insulated versions meet specific standards?
Clear PVC insulated versions meet or exceed ANSI C119.4 specifications.
What insulation colors are available for these connectors?
The connectors are available with either clear or black PVC insulation.
What types of conductors are compatible with these connectors?
These connectors are dual-rated for use with both aluminum and copper conductors.
What is the main benefit of these connectors?
The PVC insulation allows for safe and time-saving installation without the need for additional tape. It provides built-in insulation.
What insulation colors are available for these connectors?
The connectors are available with either clear or black PVC insulation.
What screw type does the AMTS25062 connector use?
The AMTS25062 connector uses a 5/16 Hex screw type.
