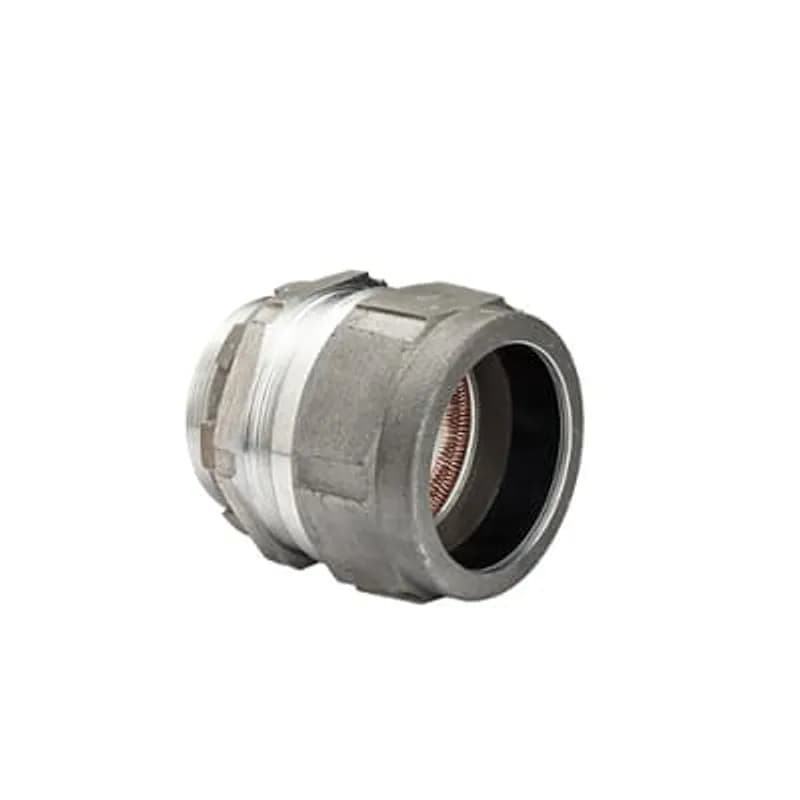

ABB Installation Products AMC-4001 Aluminum fitting for metal clad and armored cables. Hub size of 4 inches. NPT Range over…
UPC: 786210235943
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Aluminum fitting for metal clad and armored cables
- 4-inch hub size for robust connections
- NPT range over armor: 3.485" - 4.020"
- Manufactured by ABB - Installation Products
- SKU: AMC-4001
Specifications
Application | Provides means for terminating jacketed and non-jacketed metal clad and Teck 90 cables to a bulkhead or enclosure in industrial applications |
Material | Aluminum |
Material | Copper Free Aluminum |
Series | AMC |
Size | 4 Inches |
Size | 4 in |
Temperature Rating, Maximum | 194 F |
Temperature Rating, Maximum | 90 C |
Temperature Rating, Minimum | -13 F |
Temperature Rating, Minimum | -25 C |
Type | Metal Clad Cable Fittings |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 4.5700 L |
Package Weight (Metric) | 2.0730 kg |

SH 101
Cap, Clamp-Type Service, Conduit Size 1/2 Inch, Number of Holes 4, Size 4(19/64 Inch), Aluminum, For Rigid/Intermediate or Thinwall
STX150-471SPVC
Steel PVC coated Star Teck XP hazardous location jacketed cable fitting hub size 1-1/2 inches Range over jacket 1.600-1.875 inches.
STX050-462SPVC
Steel fitting with a hub size of 1/2 inch and the outer jacket diameters from 0.525 to 0.65 inch. PVC coated.
ST350-482PVC
Star Teck aluminum jacketed cable fitting hub size 3-1/2 inches Range over jacket 3.420-3.690 inches. PVC coated.
STX200-473SPVC
Steel Star Teck XP hazardous location jacketed cable fitting, hub size 2 inches PVC coated.
STX150-550SPVC
Steel Star Teck XP hazardous location jacketed cable fitting, hub size 1-1/2 inches PVC coated.
STX250-475S
Steel fitting with a hub size of 2-1/2 inches and the outer jacket diameters from 2.3 to 2.565 inches.Frequently Asked Questions
What is the range over jacket for AMC-4001?
For AMC-4001, the range over jacket is 3.595 inches minimum to 4.280 inches maximum.
What is the AMC-4001 product used for?
The AMC series cable fittings terminate jacketed and non-jacketed metal clad and Teck 90 cables to a bulkhead or enclosure in industrial applications.
What cable types are compatible with this fitting?
It is compatible with Type MC (aluminum/steel), ACWU90/ACGWU90, AC90/ACG90, and Teck 90 cables. This includes jacketed interlocking armor (MCI, MCI-A) and jacketed corrugated metal clad (MCC).
What is the operating temperature range for the AMC-4001?
The normal working temperature range for the product is -25 to +90 degrees Celsius (-13 to +194 degrees Fahrenheit).
What is the ingress protection rating?
The ingress protection rating is Type 4, which applies when the fitting is used with jacketed cables only.
What materials are used in the construction of the fitting?
The fitting is made of copper-free aluminum, with a chloroprene seal, a copper-plated stainless steel spring, and a zinc or aluminum locknut.
What standards does the AMC series conform to?
The AMC series conforms to UL514B/50E, CSA C22.2-18.3/-94.2 (for wet and dry locations), and RoHS 2011/65/EU.
Is the AMC-4001 suitable for hazardous locations?
Yes, it is suitable for Class I Div 2, Class II Div 2, and Class III locations as per NEC requirements.
What is the NPT thread size for the AMC-4001?
The AMC-4001 has a 4-inch NPT thread.
What is the range over armor for AMC-4001?
For AMC-4001, the range over armor is 3.485 inches minimum to 4.020 inches maximum.
How to Install the ABB AMC-4001 Metal Clad Cable Gland
This guide provides step-by-step instructions for the safe and proper installation of the ABB AMC-4001 Metal Clad Cable Gland, including cable preparation and sealing procedures for metal clad cables.
Estimated time: 30m
Tools needed:
Wrench, Torque Wrench, Wire Strippers, Cable Cutter
Supplies needed:
AMC-4001 Cable Gland, Metal Clad Cable, Electrical Enclosure, Locknut (if required)
- Prepare for Installation and Select Gland
WARNING: RISK OF SHOCK. Disconnect all power to the enclosure before beginning installation. Select the appropriate AMC cable gland (e.g., AMC-4001) that matches your enclosure's hub size and the metal clad cable being used. Determine the required working length of the cable inside the enclosure.
- Prepare the Cable
Prepare the metal clad cable by exposing the appropriate length of armor. Refer to the 'STRIP LENGTH L' values provided in the product table for your specific AMC gland model to ensure correct armor exposure.
- Install Cable Gland to Enclosure
Install the cable gland into the electrical enclosure. If the enclosure has a threaded hole, screw the gland in. If using a non-threaded hole, secure the gland using a locknut. Hand-tighten the locknut, then tighten it an additional 1/4 turn with a wrench or appropriate tool.
- Feed Cable Through Gland
If the conductor bundle is too large to pass through, remove the armor stop from the cable gland. Carefully feed the prepared metal clad cable through the cable gland and push it until the cable armor firmly contacts the armor stop or the body of the gland.
- Tighten Gland Nut for Seal
Tighten the gland nut to the specified torque value found in the product table for your AMC gland model. Ensure that the sealing ring creates an even and secure seal around the cable's outer jacket. Verify that the cable remains as centered as possible within the gland to achieve an optimal seal.
