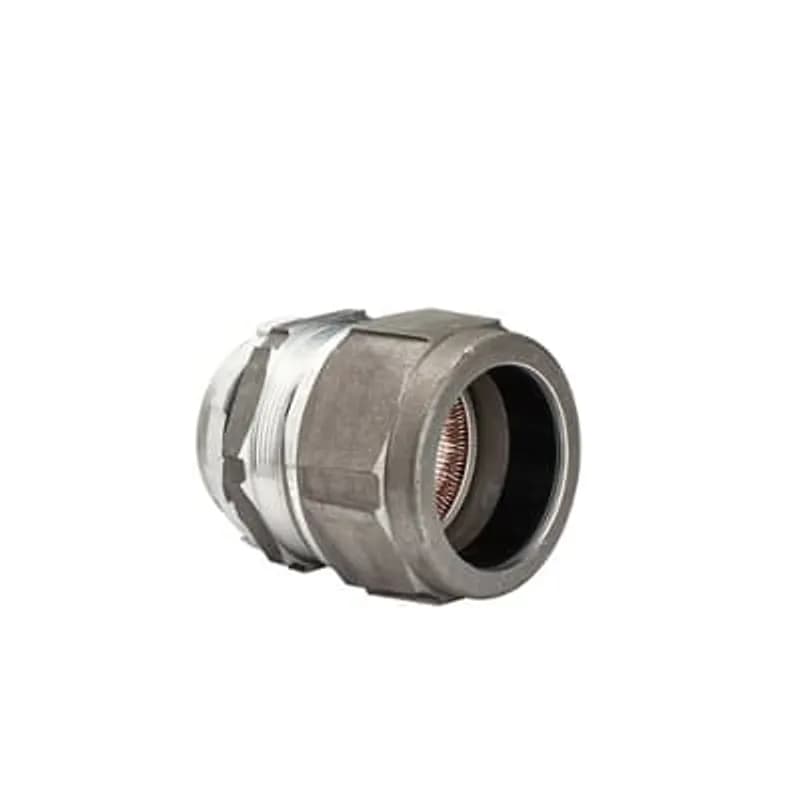

AMC-3501

The dimensions for AMC-3501 are A: 1.340 in, B: 4.970 in, C: 5.580 in, and D: 3.244 in.

For the AMC-3501, the range over jacket is 3.020 in minimum to 3.770 in maximum.

For the AMC-3501, the range over armor is 2.920 in minimum to 3.500 in maximum.

The AMC-3501 has a 3 1/2 NPT thread size.

AMC series fittings conform to UL514B/50E, CSA C22.2-18.3/-94.2 (for Wet and Dry Location), and RoHS 2011/65/EU (incorporating 2015/863 amendment).

The fitting is made from copper-free aluminum, with a chloroprene seal, a copper-plated stainless steel spring, and a zinc or aluminum locknut.

The AMC series cable fittings have a working temperature range of -25 to +90 degrees Celsius (-13 to +194 degrees Fahrenheit).

AMC series fittings are compatible with Type MC (aluminum/steel), ACWU90/ACGWU90, AC90/ACG90, and Teck 90 cables. This includes jacketed interlocking armor (MCI, MCI-A) and jacketed corrugated metal clad (MCC).

AMC series fittings conform to UL514B/50E, CSA C22.2-18.3/-94.2 (for Wet and Dry Location), and RoHS 2011/65/EU (incorporating 2015/863 amendment).

The dimensions for AMC-3501 are A: 1.340 in, B: 4.970 in, C: 5.580 in, and D: 3.244 in.
