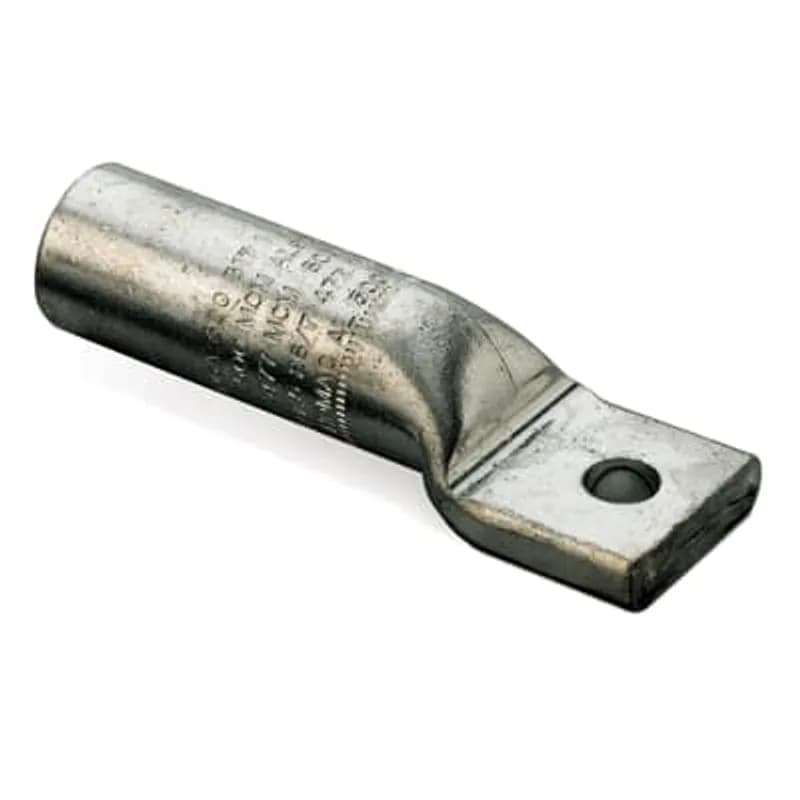

ABB - Installation Products AL 2-38 - Aluminum One-Hole NEMA Lugs, concentric 2 Stranded AL-CU, bolt size 3/8, installing dies TQ, 45, 348, 163, 1/2, 6A. Length 2-5/8 inch. Pad 3/4 inch wide x 1 inch long x 5/32 inch thick. Single Hole .406 inch Diameter. Barrel 59/64 inch. Outside Diameter 17/32 inch. Oxide Inhibitor. Pink Cap.

ABB Installation Products AL 2-38 Aluminum One-Hole NEMA Lugs, concentric 2 Stranded AL-CU, bolt size 3/8, installing dies…

UPC: 783786693399

Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 300

Multiplier: 300

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

ABB AL 2-38 Aluminum One-Hole NEMA Lugs are precision-engineered connectors designed for secure, high-conductivity terminations in industrial and commercial electrical systems. These lugs accommodate 2-stranded aluminum or copper conductors, ensuring reliable performance in power distribution, motor control, and control panel applications. The 3/8" bolt size provides robust mechanical strength, while the concentric design ensures consistent contact pressure across the conductor bundle. With a length of 2-5/8 inches and a pad measuring 3/4" wide x 1" long x 5/32" thick, the AL 2-38 is compatible with standard NEMA mounting configurations. The single hole (0.406" diameter) allows for easy installation with TQ, 45, 348, 163, 1/2, and 6A dies, ensuring versatility across multiple tooling systems. The barrel (59/64" OD) and outside diameter (17/32") are optimized for tight spaces, while the oxide inhibitor coating prevents corrosion and maintains long-term conductivity. The pink cap provides visual identification and protection during storage and handling. Ideal for panel builders, electricians, and maintenance teams requiring durable, code-compliant terminations.
  • Designed for 2-stranded aluminum or copper conductors
  • 3/8" bolt size for secure mechanical connections
  • Concentric design ensures consistent contact pressure
  • Compatible with TQ, 45, 348, 163, 1/2, and 6A dies
  • Oxide inhibitor coating prevents corrosion and enhances conductivity

Specifications

Application
General purpose lugs for Aluminum and Copper terminations
Connection
Compression
Housing Material
Aluminum
Housing Material
Aluminium
Size
Length 2-5/8 inches
Special Features
Dual-rated. Use with Aluminum and Copper conductors. Prefilled with oxide inhibitor to prevent oxidation and keep out moisture. All lugs marked with conductor sizes and die reference for easy identification
Standard
ANSI C119.4
Type
Compression Lug One Hole
Wire Size
#2 STR AWG
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.0300 L
Package Weight (Metric)
0.0140 kg
Tin-Plated Aluminum Compression Lug for Aluminum and Copper Terminations, One-Hole NEMA Pad .406 inch Diameter, 2/0 Stranded AL9CU, Dies TW_TY, 58, 297, 5/8-1. UL Listed. Length 3-3/16 inch. Pad 61/64 inch Wide x 1-9/32 inch long x 15/64 inch thick. Barrel 1-5/16 inch Long x 11/16 inch Outside Diameter. Oxide Inhibitor. Olive Cap.

AL 2/0-38 TN

Tin-Plated Aluminum Compression Lug for Aluminum and Copper Terminations, One-Hole NEMA Pad .406 inch Diameter, 2/0 Stranded AL9CU, Dies TW_TY, 58, 297, 5/8-1. UL Listed. Length 3-3/16 inch. Pad 61/64 inch Wide x 1-9/32 inch long x 15/64 inch thick. Barrel 1-5/16 inch Long x 11/16 inch Outside Diameter. Oxide Inhibitor. Olive Cap.
The Polaris IPLMD350-6 Multi-Tap Mountable Dual-Sided Entry Connector features 6 ports sized for 350 MCM - 6 AWG wires. Mounting holes on either side of the connector allow for direct mounting to troughs, panels or wireways with 1/4†bolts. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.

IPLMD350-6

The Polaris IPLMD350-6 Multi-Tap Mountable Dual-Sided Entry Connector features 6 ports sized for 350 MCM - 6 AWG wires. Mounting holes on either side of the connector allow for direct mounting to troughs, panels or wireways with 1/4†bolts. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.
Tin Plated Aluminum Two-Hole NEMAL Stacking Lug - Conductor Range 1000 kcmil AL9CU - UL Listed, 954 kcmil, ACSR 795 (26/7) 954 (45/7), Installing Dies 161, 292, 302, 319, 1 3/4. Length 9-1/2 inch. Pad 2-39/64 inch wide x 3-1/8 inch long x 39/64 inch thick. (2) 9/16 inch holes on 1-3/4 inch centers. Barrel 4-7/16 inch long x 1-27/32 inch Outside Diameter. Oxide Inhibitor. Brown Cap.

ASL 1000 NTN

Tin Plated Aluminum Two-Hole NEMAL Stacking Lug - Conductor Range 1000 kcmil AL9CU - UL Listed, 954 kcmil, ACSR 795 (26/7) 954 (45/7), Installing Dies 161, 292, 302, 319, 1 3/4. Length 9-1/2 inch. Pad 2-39/64 inch wide x 3-1/8 inch long x 39/64 inch thick. (2) 9/16 inch holes on 1-3/4 inch centers. Barrel 4-7/16 inch long x 1-27/32 inch Outside Diameter. Oxide Inhibitor. Brown Cap.
Aluminum Two-Hole NEMA Lugs - Stacking Lug, Stranded 1 and 2, Compressed 1, Solid 1/0, ACSR 2. Bolt hole size 5/16 inch, installing dies TU, 52, BG, 243, 5/8. Length 5-3/16 inch. Pad 3/4 inch wide x 2-7/8 inch long x 17/64 inch thick. (2) 9/16 inch holes on 1-3/4 inch centers. Barrel 1-7/16 inch long x 41/64 inch Outside Diameter. Oxide Inhibitor. Red Cap. Dual Rated for use with Aluminum and Copper Conductors.

ASL 2 N

Aluminum Two-Hole NEMA Lugs - Stacking Lug, Stranded 1 and 2, Compressed 1, Solid 1/0, ACSR 2. Bolt hole size 5/16 inch, installing dies TU, 52, BG, 243, 5/8. Length 5-3/16 inch. Pad 3/4 inch wide x 2-7/8 inch long x 17/64 inch thick. (2) 9/16 inch holes on 1-3/4 inch centers. Barrel 1-7/16 inch long x 41/64 inch Outside Diameter. Oxide Inhibitor. Red Cap. Dual Rated for use with Aluminum and Copper Conductors.
Aluminum Tees, Main 2/0 Stranded, 2/0 Compresses, 3/0 Compact, Tap 2/0 Stranded, 2/0 Compresses, 3/0 Compact,. Main Length 2-1/2 inch x 11/16 inch outside Diameter, Total Tap Length 6 inch x 11/16 inch outside Diameter. Dies TWTY, 58, 297, 5/8-1. Oxide Inhibitor. Gray Caps.

AT 2/0-2/0

Aluminum Tees, Main 2/0 Stranded, 2/0 Compresses, 3/0 Compact, Tap 2/0 Stranded, 2/0 Compresses, 3/0 Compact,. Main Length 2-1/2 inch x 11/16 inch outside Diameter, Total Tap Length 6 inch x 11/16 inch outside Diameter. Dies TWTY, 58, 297, 5/8-1. Oxide Inhibitor. Gray Caps.
Tin Plated Aluminum Compression Terminal Stacking Lug, 2-Hole NEMA Stacking Lug,. Wire Size 300 kcmil AL9CU - UL listed, 266.8 kcmil, 150 MM2, 266.8 (18/1) ACSR, 350 Compact. Dies TH, 87H, 251, 470, 1, 12A. Length 6 inch, Pad 3 inch long x 1-11/32 inch wide x 11/32 inch thick, (2) 9/16 inch Diameter holes on 1-3/4 inch Centers. Oxide Inhibitor, Blue Cap. Dual Rated for use with Aluminum and Copper Conductors.

ASL 300 NTN

Tin Plated Aluminum Compression Terminal Stacking Lug, 2-Hole NEMA Stacking Lug,. Wire Size 300 kcmil AL9CU - UL listed, 266.8 kcmil, 150 MM2, 266.8 (18/1) ACSR, 350 Compact. Dies TH, 87H, 251, 470, 1, 12A. Length 6 inch, Pad 3 inch long x 1-11/32 inch wide x 11/32 inch thick, (2) 9/16 inch Diameter holes on 1-3/4 inch Centers. Oxide Inhibitor, Blue Cap. Dual Rated for use with Aluminum and Copper Conductors.
Aluminum Two-Hole NEMA Lugs - straight lug, #6 ACSR, #6 Compressed , #4 Solid - Compact. Installing dies TU, 52, BG, 243, 5/8, CSA22. Length 5-1/8 inch. Pad 7/8 inch wide x 3-1/16 inch long x 7/32 inch thick. (2) 9/16 inch diameter holes on 1-3/4 inch center. Barrel 1-15/32 inch. Oxide Inhibitor. Blue Cap. Dual Rated for Aluminum and Copper Conductors

SA 6 N

Aluminum Two-Hole NEMA Lugs - straight lug, #6 ACSR, #6 Compressed , #4 Solid - Compact. Installing dies TU, 52, BG, 243, 5/8, CSA22. Length 5-1/8 inch. Pad 7/8 inch wide x 3-1/16 inch long x 7/32 inch thick. (2) 9/16 inch diameter holes on 1-3/4 inch center. Barrel 1-15/32 inch. Oxide Inhibitor. Blue Cap. Dual Rated for Aluminum and Copper Conductors
Aluminum Pin Terminal, #2-#1 Copper/Aluminum, Dies 5/8, 8A, BG, 243, TU. 1 inch Tin Plated Copper Pin x .258 inch diameter. Body Length 2 inch. Bore Depth .960. Center Stop. Oxide Inhibitor compound. Sealant. Red Cap.

2177 G 21

Aluminum Pin Terminal, #2-#1 Copper/Aluminum, Dies 5/8, 8A, BG, 243, TU. 1 inch Tin Plated Copper Pin x .258 inch diameter. Body Length 2 inch. Bore Depth .960. Center Stop. Oxide Inhibitor compound. Sealant. Red Cap.

Frequently Asked Questions

What conductor types are compatible with AL 2-38?

The AL 2-38 supports 2-stranded aluminum or copper conductors.

What is the bolt size for AL 2-38?

The bolt size is 3/8 inch.

What is the length of the AL 2-38?

The length is 2-5/8 inches.

What is the pad width and thickness?

The pad measures 3/4 inch wide, 1 inch long, and 5/32 inch thick.

What is the hole diameter for mounting?

The single hole has a diameter of 0.406 inches.

What dies are compatible with AL 2-38?

Compatible dies include TQ, 45, 348, 163, 1/2, and 6A.

Does AL 2-38 have corrosion protection?

Yes, it includes an oxide inhibitor coating to prevent corrosion.
