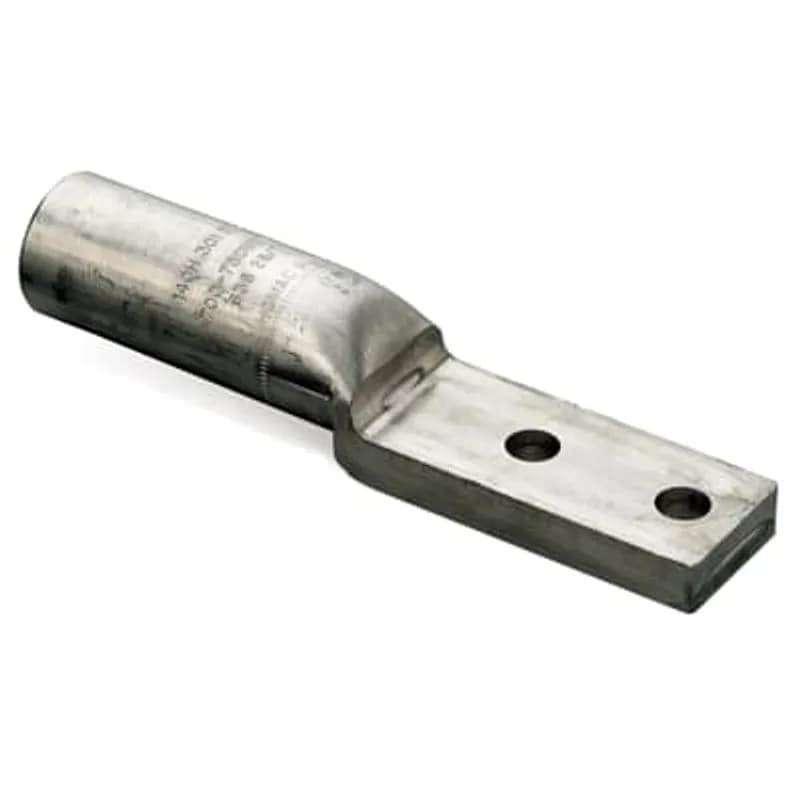

ABB Installation Products SA 6 N Aluminum Two-Hole NEMA Lugs - straight lug, #6 ACSR, #6 Compressed , #4 Solid - Compact.…
UPC: 783786750320
Documents & Media
Contact for Pricing
Minimum Qty: 200
Multiplier: 200
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Dual-rated for aluminum and copper conductors
- Compatible with #6 ACSR, #6 Compressed, and #4 Solid conductors
- Compact dimensions: 5-1/8" length, 7/8" x 3-1/16" pad
- Two 9/16" diameter holes on 1-3/4" center for standardized mounting
- Oxide inhibitor coating prevents corrosion; blue cap for easy identification
Specifications
Application | Designed for general applications and for installation on Homac 125 series insulated buses |
Connection | Compression |
Housing Material | Aluminum |
Housing Material | Aluminium |
Size | 5-1/8 x 7/8 inch wide |
Special Features | Entire conductor range installed by four dies. Lessens your die inventory. Dual-Rated for use with Aluminumand Copper Conductors. Made of Aluminum for high strength and high conductivity. Prefilled with Oxide Inhibitor to Prevent Oxidation and keep out Moisture. Marked with Conductor Sizes and Die References for Easy Identification |
Standard | ANSI C119.4 |
Type | Compression Lug Two Hole |
Wire Size | #6 STR AWG , #6 COMPR AWG , #4 COMPT AWG , #4 SOL AWG , #6 ACSR AWG |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.1400 L |
Package Weight (Metric) | 0.0640 kg |
SA 6 NTN
Tin-Plated Aluminum Two-Hole NEMA Lugs - straight lug, #6 ACSR, #6 Compressed , #4 Solid - Compact. Installing dies TU, 52, BG, 243, 5/8, CSA22. Length 5-1/8 inch. Pad 7/8 inch wide x 3-1/16 inch long x 7/32 inch thick. (2) 9/16 inch diameter holes on 1-3/4 inch center. Barrel 1-15/32 inch. Oxide Inhibitor. Blue Cap. Dual Rated for Aluminum and Copper Conductors
IPLMD350-6
The Polaris IPLMD350-6 Multi-Tap Mountable Dual-Sided Entry Connector features 6 ports sized for 350 MCM - 6 AWG wires. Mounting holes on either side of the connector allow for direct mounting to troughs, panels or wireways with 1/4†bolts. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.
2177 G 21
Aluminum Pin Terminal, #2-#1 Copper/Aluminum, Dies 5/8, 8A, BG, 243, TU. 1 inch Tin Plated Copper Pin x .258 inch diameter. Body Length 2 inch. Bore Depth .960. Center Stop. Oxide Inhibitor compound. Sealant. Red Cap.2177 K 2/0
Aluminum Pin Terminal, 2/0 Aluminum-Copper, Dies 840, TX, 249. 1 inch Tin Plated Copper Pin x .325 inch diameter. Body Length 2 inch. Bore Depth 1.125. Center Stop. Oxide Inhibitor compound. Sealant. Gray Cap.2177 K 350
Aluminum Pin Terminal. Wire Size 350 kcmil Aluminum - Copper. Dies 840, TX, 249. Body 2.125 inch long x .906 inch diameter. Tin-Plated Copper Pin 1.000 inch long. Brown Cap. Oxide Inhibiting Compound. Sealant.
SASL 2-48 TN
Tin-Plated Aluminum Compression One-Hole Stacking Lug for Aluminum and Copper Conductors- Common Die Series, 2 and 1 Stranded, 1 Compressed, 1/0 Solid, 1 Compact, Installing Dies BG, 243, CSA 22, 5/8. Length 3 inch. Pad 7/8 inch wide x 1-1/16 inch long x 17/64 nich thick. (1) 17/32 inch hole. Barrel 1-5/16 inch long x 41/64 inch outside Diameter. Oxide Inhibitor. Red Cap.
DB 202 ST
Compression Hot Line Stirrup, #1 ACSR - 3/0 Stranded to #2 Bail, Die D. 10 inches wide. (2) WR289 Wide Range Connectors.
L 4/0-38-HM
Tin Plated Copper One-Hole Straight NEMA Lugs. wire size 4/0 Stranded CU, 95 MM2. Installing Dies 54, 243, 15. Length 3-15/64 inch. Pad 1-3/64 inch wide x 1-7/64 inch long x 1/8 inch thick. (1) 13/32 inch hole. Barrel 1-9/16 inch. CSA. UL listed.Frequently Asked Questions
What conductor sizes are compatible with the SA 6 N?
The SA 6 N supports #6 ACSR, #6 Compressed, and #4 Solid conductors.
Is the SA 6 N compatible with copper conductors?
Yes, the SA 6 N is dual-rated for both aluminum and copper conductors.
What are the mounting hole specifications for the SA 6 N?
The lug has two 9/16 inch diameter holes spaced 1-3/4 inches apart.
What is the length of the SA 6 N lug?
The SA 6 N has a length of 5-1/8 inches.
What is the pad size of the SA 6 N?
The pad measures 7/8 inch wide x 3-1/16 inch long x 7/32 inch thick.
What is the barrel length of the SA 6 N?
The barrel length is 1-15/32 inches.
What installing dies are compatible with the SA 6 N?
The SA 6 N is compatible with installing dies TU, 52, BG, 243, 5/8, and CSA22.
