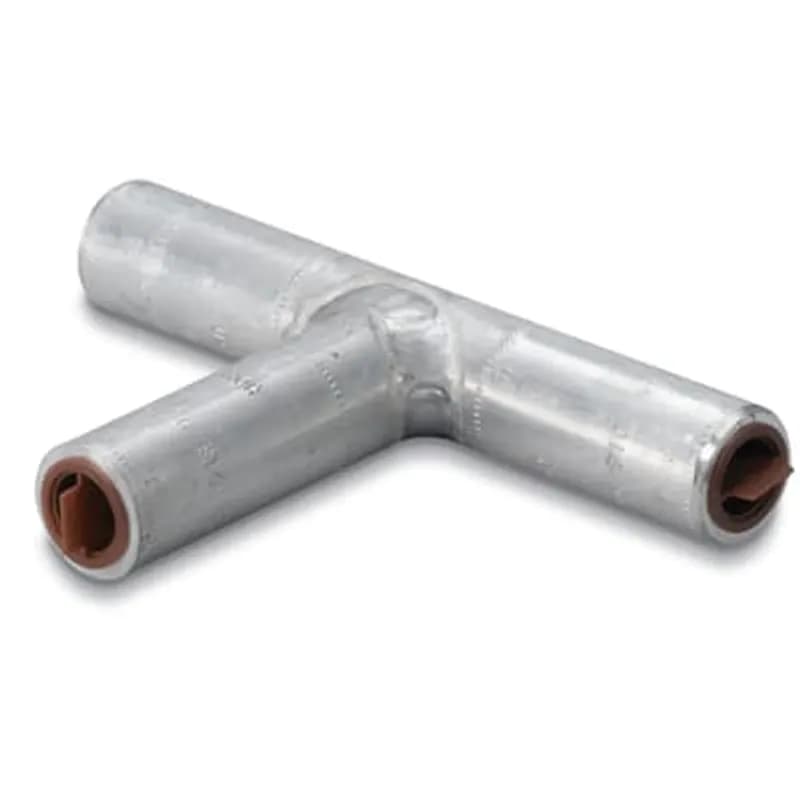

ABB Installation Products AT 2/0-2/0 Aluminum Tees, Main 2/0 Stranded, 2/0 Compresses, 3/0 Compact, Tap 2/0 Stranded, 2/0…
UPC: 783786697731
Documents & Media
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Main Conductor Compatibility: 2/0 Stranded, 2/0 Compressed, 3/0 Compact Aluminum
- Tap Conductor Compatibility: 2/0 Stranded, 2/0 Compressed, 3/0 Compact Aluminum
- Main Body Dimensions: 2-1/2" Length x 11/16" OD
- Tap Length: 6" Total x 11/16" OD
- Compatible Dies: TWTY, 58, 297, 5/8-1; Includes Oxide Inhibitor and Gray Caps
Specifications
Application | For Aluminum and Copper Connections |
Connection | Compression |
Housing Material | Aluminum |
Housing Material | Aluminium |
Size | Length 6 inches, Tap 2-1/2 inch |
Special Features | Made from Aluminum which provides high strength and high conductivity. Dual-rated. Use with Aluminum and Copper conductors. All Tees marked with conductor sizes and die reference for easy identification |
Standard | ANSI C119.4 |
Type | Tee, Compression |
Wire Size | 2/0 AWG |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |
