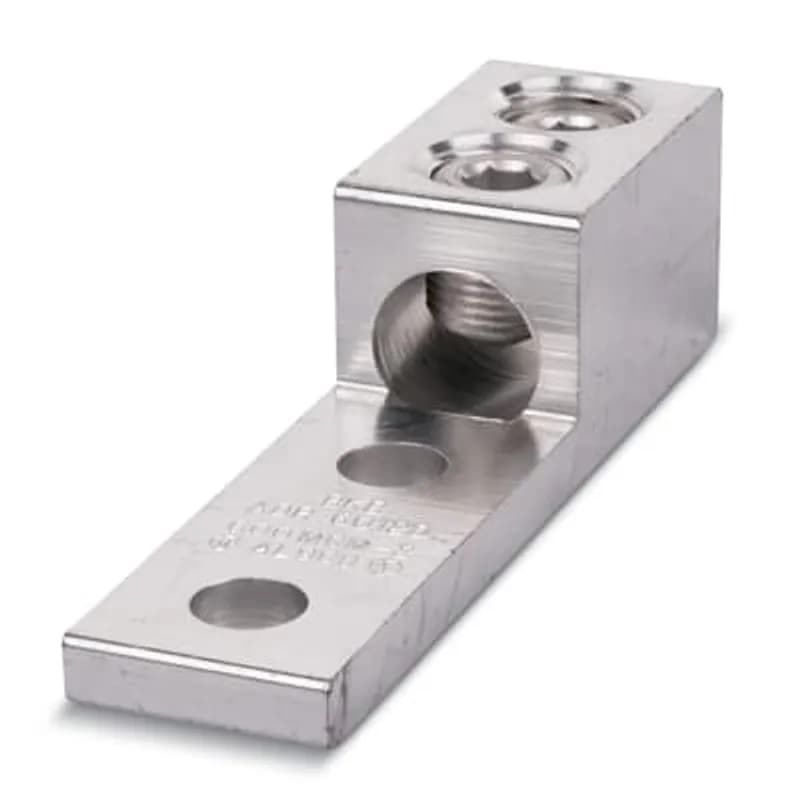

ABB Installation Products ADR80-12D Type ADR-ALCUL Single-Conductor, Two-Hole Mount, Conductor Range (AL or CU) Max 800…
UPC: 783786610396
Contact for Pricing
Minimum Qty: 3
Multiplier: 3
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Dual-rated for aluminum (AL) and copper (CU) conductors up to 800 kcmil
- Two-hole mount design with 1/2-inch bolt hole for secure attachment
- Double row of set screws for conductors 600 kcmil and larger
- Tin-plated finish for corrosion resistance in harsh environments
- NEMA spacing: 1-3/4-inch centers for standard mounting compatibility
Specifications
Connection Type | Two-Hole Mount |
Finish | Tinned |
Material | Aluminum |
Material | Tin-Plated |
Mounting Hole Spacing | 1/2 in |
Mounting Type | Two-hole Mount |
Nema Rating | NEMA spacing 1-3/4 inch centers |
Number of Conductors | 1 |
Number of Mounting Holes | 2 |
Poles | 1 |
Series | ADR-ALCUL |
Size | 800 kcmil max, 300 kcmil min, 6-3/19 inch length, 1/2 inch bolt hole, 1-3/4 inch NEMA spacing |
Special Features | Easy Installation - no special tools required |
Standard | UL E9809 |
Type | Dual-Rated Mechanical Connector |
Package Dimensions (L x W x H) | 9.5 IN x 6 IN x 3.8 IN |
Package Dimensions (L x W x H) | 24.13 cm x 15.24 cm x 9.652 cm |
Package Weight (Imperial) | 0.9400 L |
Package Weight (Metric) | 0.4260 kg |
TS350-2
2 Port Aluminum Dual Rated Transformer Stud Connector 350 MCM -6 AWG with 5/8" Stud Aluminum dual rated transformer stud connectors are versatile and reusable set screw connectors made from 6061T-6 aluminum alloy for superior electrical and mechanical performance. Clear plated for low contact resistance- stud is tin plated copper which provides low contact resistance for connection to transformer. For use with copper and aluminum conductors. Meets or exceeds ANSI C119.4 Class A. Rated 600V. Temperature rating 90 degrees C.
PCSB4-3S-12Y
The PCSB4-3S-12Y Multi-Tap Mechanical Lug has a flexible design that can be used as a tap, splice, or dead-end Lug. Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance. Insulated with clear PVC to eliminate the need for taping and allow for visual inspection of the complete conductor insertion. UL Listed and CSA Certified.
500M
Type H - High Strength Split-Bolt Connector, Conductor Range for Equal Main and Tap 500 kcmil-400 kcmil, Conductor Range for Min Tap with One Max Main 2/0 Str
1CA
Type CA Aluminum Split-Bolt Connector with Spacer and Washer for Use on Copper, Aluminum Conductors. Conductor Range for Equal Main and Tap 1/0 Str.-2 Sol.
2HPW
Type HPW Plated Split-Bolt Connector with Spacer and Washer made of Copper Alloy for Use on Copper, Aluminum, ACSR Conductors. Conductor Range for Equal Main and Tap 2 Sol.-8 Sol.
2B350PW
Aluminum Type 2BPW - Two-Bolt Connector with Spacer for Wire Range Main: 350-4 - 350-4/0 Tap: 350-4 Sol. - 350-4/0, Bolt Size 3/4Frequently Asked Questions
What conductor sizes does the ADR80-12D support?
The ABB ADR80-12D connector supports conductor ranges from a minimum of 300 kcmil up to a maximum of 800 kcmil for both aluminum and copper conductors.
What is the bolt hole size and spacing for this connector?
The ADR80-12D features a 1/2 inch bolt hole and adheres to NEMA spacing standards with 1-3/4 inch centers.
What is the plating on the ADR80-12D connector?
The ABB ADR80-12D connector is tin plated, which provides corrosion resistance and ensures reliable electrical conductivity.
What type of conductors can be used with the ADR80-12D?
The ADR80-12D is designed for both aluminum (AL) and copper (CU) single conductors.
What is the overall length of the ADR80-12D connector?
The ABB ADR80-12D connector has an overall length of 6-3/19 inches.
How to Install Blackburn Aluminum Dual Rated Connectors
This guide provides step-by-step instructions for safely installing Blackburn Aluminum Dual Rated Connectors with aluminum or copper conductors, including preparation, insertion, and torquing procedures.
Estimated time: 30m
Tools needed:
Wire strippers, Wire brush, Torque wrench
Supplies needed:
Oxide inhibiting compound, Mounting hardware (bolts, flat and Belleville washers)
- De-energize and Verify Conductor Size
Before beginning, ensure the circuit is de-energized to prevent electrical shock. Check the conductor size marked on the connector to confirm it is the correct connector for the conductor size you are using.
- Prepare and Insert Conductor
Carefully strip the conductor insulation, using the length of the connector's conductor barrel to measure the appropriate strip length, and avoid damaging the conductor strands. Wire brush the conductor. If using an aluminum conductor, apply Blackburn® Contax® Type CT or Weaver Type CP oxide inhibiting compound, then fully insert the prepared conductor into the connector. Wipe off any excess oxide inhibitor.
- Tighten Connector Setscrew
Apply the recommended tightening torque to the connector's setscrew. Refer to TABLE 1 in the product documentation for the appropriate torque value based on the maximum conductor size the connector accommodates.
- Apply Oxide Inhibitor and Mount Connector
Prior to mounting, apply Blackburn® Contax® Type CT or Weaver Type CP oxide inhibiting compound to the flat contact surface of the connector. Mount the connector using appropriate hardware. Torque the mounting hardware to the values specified in TABLE 2. For best installation practice, use flat and Belleville washers in conjunction with the mounting hardware.
