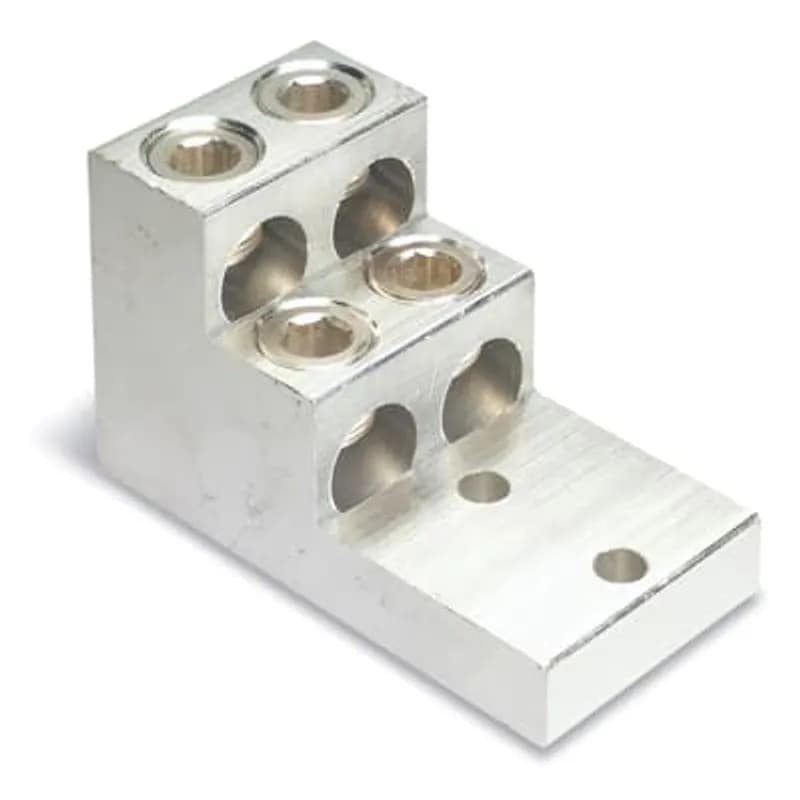

ABB Installation Products ASL75-42 Type ASL-ALCUL Four-Conductor, Two-Hole Mount for Conductor Range Max 750 kcmil, Min 3/0…
UPC: 783786133208
Documents & Media
Contact for Pricing
Minimum Qty: 3
Multiplier: 3
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Four-conductor, two-hole mount mechanical connector
- Accommodates conductor range: 3/0 AWG Str. to 750 kcmil
- Suitable for copper or aluminum conductors
- UL 486B and CSA certified for 600 Volts, 90°C
- Manufactured from high-strength aluminum alloy, electro-tin plated
Specifications
Finish | Tinned |
Material | Aluminum |
Special Features | Easy Installation - no special tools required |
Standard | UL E9809 |
Type | Dual-Rated |
Package Dimensions (L x W x H) | 6.5 IN x 5 IN x 3.3 IN |
Package Dimensions (L x W x H) | 16.51 cm x 12.7 cm x 8.382 cm |
Package Weight (Imperial) | 1.1500 L |
Package Weight (Metric) | 0.5220 kg |

TS350-2
2 Port Aluminum Dual Rated Transformer Stud Connector 350 MCM -6 AWG with 5/8" Stud Aluminum dual rated transformer stud connectors are versatile and reusable set screw connectors made from 6061T-6 aluminum alloy for superior electrical and mechanical performance. Clear plated for low contact resistance- stud is tin plated copper which provides low contact resistance for connection to transformer. For use with copper and aluminum conductors. Meets or exceeds ANSI C119.4 Class A. Rated 600V. Temperature rating 90 degrees C.
PCSB4-3S-12Y
The PCSB4-3S-12Y Multi-Tap Mechanical Lug has a flexible design that can be used as a tap, splice, or dead-end Lug. Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance. Insulated with clear PVC to eliminate the need for taping and allow for visual inspection of the complete conductor insertion. UL Listed and CSA Certified.
AHS 600
Tin Plated Aluminum Wire Connector, 2/0 - 600 kcmil, Torque 500 pounds, Dual Rated Connector Copper and Aluminum 90 Degree C. CSA/UL listed. Length 1-5/8 inch, Width 1-15/16 inch, Height approximately 1-13/16 inch. One 25/64 inch Diameter Hole and One Tap 7/8-14 UNF-2B. Includes One Tin Plated Aluminum 7/8-14 x 1-1/16 inch Long Set Screw with 1/2 inch Recessed Hex Head
500M
Type H - High Strength Split-Bolt Connector, Conductor Range for Equal Main and Tap 500 kcmil-400 kcmil, Conductor Range for Min Tap with One Max Main 2/0 Str
1CA
Type CA Aluminum Split-Bolt Connector with Spacer and Washer for Use on Copper, Aluminum Conductors. Conductor Range for Equal Main and Tap 1/0 Str.-2 Sol.
2HPW
Type HPW Plated Split-Bolt Connector with Spacer and Washer made of Copper Alloy for Use on Copper, Aluminum, ACSR Conductors. Conductor Range for Equal Main and Tap 2 Sol.-8 Sol.
2B350PW
Aluminum Type 2BPW - Two-Bolt Connector with Spacer for Wire Range Main: 350-4 - 350-4/0 Tap: 350-4 Sol. - 350-4/0, Bolt Size 3/4Frequently Asked Questions
What conductor sizes does the ASL75-42 support?
The ASL75-42 supports conductor sizes ranging from a minimum of 3/0 AWG to a maximum of 750 kcmil.
How many conductors does the ASL75-42 accommodate?
The ASL75-42 is a four-conductor connector designed for balanced power distribution.
What type of mount does the ASL75-42 use?
The ASL75-42 uses a two-hole mount design for secure installation.
Is the ASL75-42 compatible with ABB components?
Yes, the ASL75-42 is manufactured by ABB Installation Products, ensuring compatibility with ABB’s industrial components.
Where is the ASL75-42 typically used?
The ASL75-42 is typically used in switchgear, motor control centers, and other industrial electrical enclosures.
