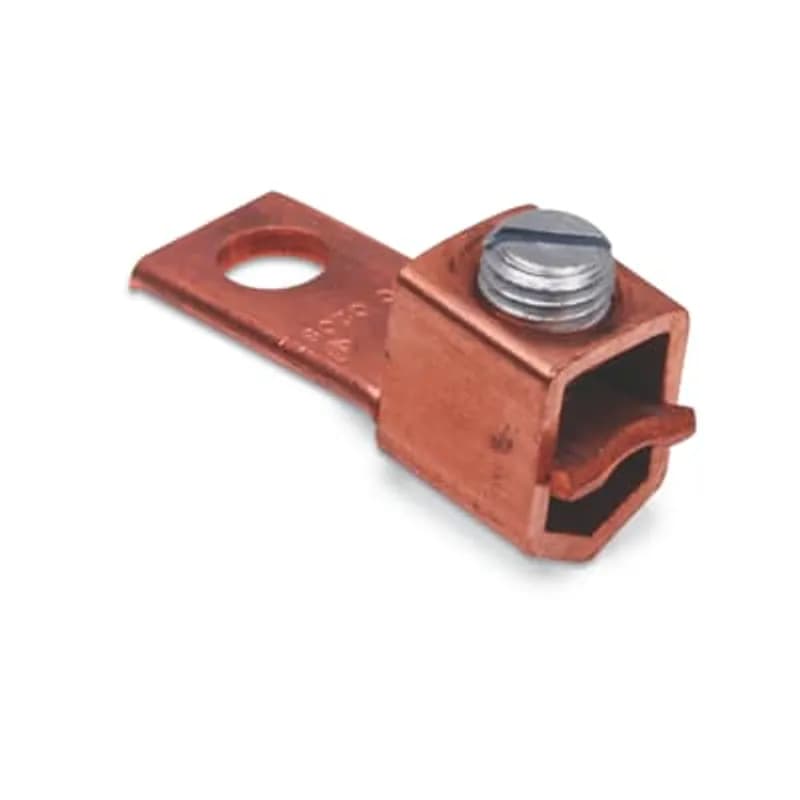

ABB - Installation Products STC0614 - Type STC - Copper Single-Conductor, One-Hole Mount (Straight Tang), Conductor Range 14 AWG-6 Str, Length 1-9/64 Inches, Width 3/8 Inch, Height 11/16 Inch

ABB Installation Products STC0614 Type STC - Copper Single-Conductor, One-Hole Mount (Straight Tang), Conductor Range 14…

UPC: 783786134212


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 10

Multiplier: 10

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB Type STC0614 is a single-conductor copper electrical lug designed for reliable termination of stranded copper conductors. This lug is engineered to accommodate conductor ranges from 14 AWG to 6 AWG stranded copper. It features a one-hole mount with a straight tang for straightforward installation onto busbars, terminal blocks, or equipment panels. The precise dimensions of this lug are 1-9/64 inches in length, 3/8 inch in width, and 11/16 inch in height, facilitating its use in space-constrained electrical enclosures and assemblies. Constructed from high-purity copper, the STC0614 ensures excellent electrical conductivity and minimal resistance, crucial for efficient power transfer in demanding industrial applications. The straight tang design simplifies alignment during installation, reducing assembly time and the potential for errors. This lug is suitable for applications within electrical panels, switchgear, motor control centers, and various types of industrial machinery where secure and durable electrical connections are paramount. The copper material offers inherent resistance to corrosion, contributing to the longevity and consistent performance of the termination. The ABB STC0614 lug is compatible with standard mounting hardware, supporting efficient power distribution systems in commercial, industrial, and utility sectors. Its design adheres to industry standards for conductor termination, ensuring broad compatibility with electrical systems. The STC0614 is part of ABB's Type STC series of copper lugs.
  • Manufacturer: ABB - Installation Products
  • Catalog Number: STC0614
  • Conductor Range: 14 AWG to 6 AWG Stranded Copper
  • Dimensions: 1-9/64" Length, 3/8" Width, 11/16" Height
  • Mounting: One-Hole Mount with Straight Tang

Specifications

Connection Type
One-Hole Mount (Straight Tang)
Material
Copper
Mounting Type
One-hole mount
Poles
1
Series
STC
Size
14 AWG-6 AWG Stranded
Special Features
Uniquely designed pressure bar and notched v-bottom collar provide vise-like grip between conductor and terminal
Standard
UL E9809
Type
Copper Connectors
Package Dimensions (L x W x H)
