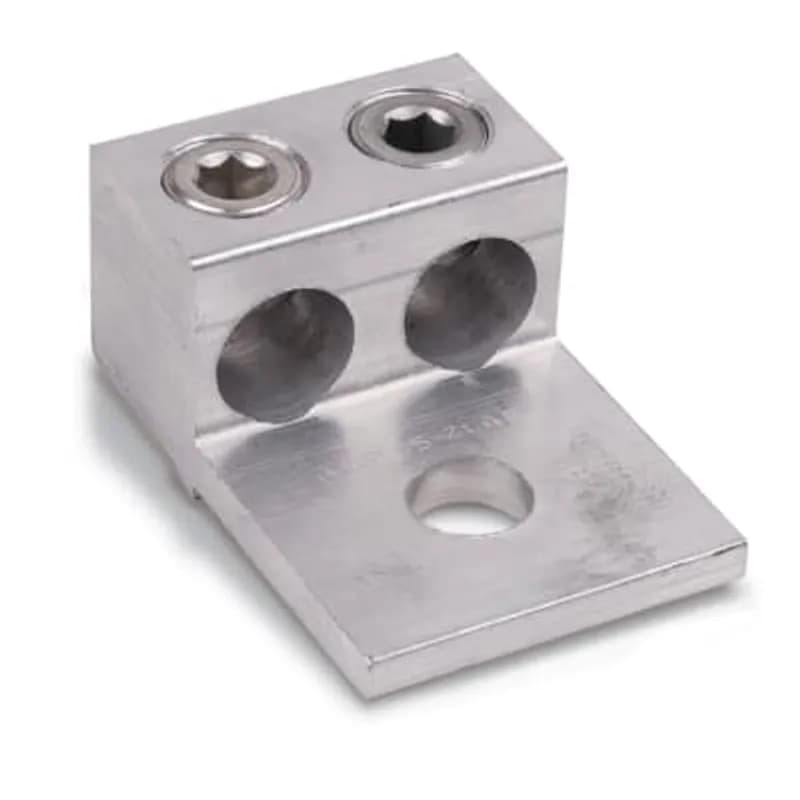

ABB - Installation Products AD 600 - Aluminum Mechanical Lug, Two Barrel, #4 - 600 kcmil, Bolt Size 1/2 Inch, Height 1-9/16 Inches, Width 2-3/8 Inches, Length 3-1/8 Inches, Tin Plated

ABB Installation Products AD 600 Aluminum Mechanical Lug, Two Barrel, #4 - 600 kcmil, Bolt Size 1/2 Inch, Height 1-9/16…

UPC: 783786692118

Documents & Media
Manufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB AD 600 is a high-quality aluminum mechanical lug designed for reliable electrical connections. This two-barrel lug is engineered to accommodate a wide range of conductor sizes, from #4 AWG up to 600 kcmil, ensuring versatility for various industrial applications. The lug features a robust construction with a tin-plated finish, providing excellent conductivity and corrosion resistance. Its design accommodates a 1/2 inch bolt size, facilitating secure and stable mounting. Key specifications include: * **Manufacturer:** ABB - Installation Products * **SKU:** AD 600 * **Type:** Aluminum Mechanical Lug * **Barrels:** Two * **Conductor Range:** #4 AWG - 600 kcmil * **Bolt Size:** 1/2 Inch * **Dimensions:** Height 1-9/16 Inches, Width 2-3/8 Inches, Length 3-1/8 Inches * **Plating:** Tin Plated This lug is suitable for use in power distribution systems, motor connections, and other heavy-duty electrical installations where dependable terminations are critical. The tin plating enhances its long-term performance by preventing oxidation and ensuring consistent electrical contact over time. Its substantial dimensions and two-barrel design offer robust mechanical strength and the capacity for multiple conductors if required by the application. Trust ABB's expertise in electrical components for your critical infrastructure needs.
  • Two-barrel aluminum mechanical lug for robust connections
  • Accommodates conductor sizes from #4 AWG to 600 kcmil
  • 1/2 inch bolt size for secure mounting
  • Tin-plated finish for enhanced conductivity and corrosion resistance
  • Durable construction from ABB - Installation Products

Specifications

Bolt Size
1/2 in
Connection Type
Mechanical Lug
Finish
Tinned
Material
Aluminum
Series
AD 600
Size
#4 - 600 kcmil
Type
Aluminum Mechanical Lug
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.4800 L
Package Weight (Metric)
0.2180 kg
2 Port Aluminum Dual Rated Transformer Stud Connector 350 MCM -6 AWG with 5/8" Stud Aluminum dual rated transformer stud connectors are versatile and reusable set screw connectors made from 6061T-6 aluminum alloy for superior electrical and mechanical performance. Clear plated for low contact resistance- stud is tin plated copper which provides low contact resistance for connection to transformer. For use with copper and aluminum conductors. Meets or exceeds ANSI C119.4 Class A. Rated 600V. Temperature rating 90 degrees C.

TS350-2

2 Port Aluminum Dual Rated Transformer Stud Connector 350 MCM -6 AWG with 5/8" Stud Aluminum dual rated transformer stud connectors are versatile and reusable set screw connectors made from 6061T-6 aluminum alloy for superior electrical and mechanical performance. Clear plated for low contact resistance- stud is tin plated copper which provides low contact resistance for connection to transformer. For use with copper and aluminum conductors. Meets or exceeds ANSI C119.4 Class A. Rated 600V. Temperature rating 90 degrees C.
The PCSB4-3S-12Y Multi-Tap Mechanical Lug has a flexible design that can be used as a tap, splice, or dead-end Lug. Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance. Insulated with clear PVC to eliminate the need for taping and allow for visual inspection of the complete conductor insertion. UL Listed and CSA Certified.

PCSB4-3S-12Y

The PCSB4-3S-12Y Multi-Tap Mechanical Lug has a flexible design that can be used as a tap, splice, or dead-end Lug. Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance. Insulated with clear PVC to eliminate the need for taping and allow for visual inspection of the complete conductor insertion. UL Listed and CSA Certified.
AL 1CNDTR 1HOLE MOUNT 6-350STR TP

ADR35

AL 1CNDTR 1HOLE MOUNT 6-350STR TP
Aluminum Mechanical Lug, Two Barrel, #4 - 600 kcmil, Bolt Size 1/2 Inch, Height 1-9/16 Inches, Width 2-7/16 Inches, Length 4-11/16 Inches, Tin Plated

AD 600-2 N

Aluminum Mechanical Lug, Two Barrel, #4 - 600 kcmil, Bolt Size 1/2 Inch, Height 1-9/16 Inches, Width 2-7/16 Inches, Length 4-11/16 Inches, Tin Plated
Aluminum Mechanical Lug, Two Barrel, 350 - 800 kcmil, Bolt Size 1/2 Inch, NEMA Bolt Hole Spacing of 1-3/4 Inches, Height 1-7/8 Inches, Width 3-3/16 Inches, Length 6-3/16 Inches, Tin Plated

AD 800-2 N

Aluminum Mechanical Lug, Two Barrel, 350 - 800 kcmil, Bolt Size 1/2 Inch, NEMA Bolt Hole Spacing of 1-3/4 Inches, Height 1-7/8 Inches, Width 3-3/16 Inches, Length 6-3/16 Inches, Tin Plated
Tin Plated Aluminum PanelBoard Lug, Dual Rated Mechanical Lug, Dual Rated Connector Copper and Aluminum 90 Degree C, 3/0 - 750 kcmil, Bolt Hole 3/8 inch, Two Barrel. 2 Inline Outlets Tapped 7/8-14 UNF-2A with Tin Plated Set Scew with 1/2 inch Hex Head. Height 3 inch X Width 1-1/2 inch X Length 4-15/16 inch. Pad is 3/4 nich Thick with Two Inline .41 inch Diameter Holes on 1-3/8 inch Center. UL Listed

AQ 2-750

Tin Plated Aluminum PanelBoard Lug, Dual Rated Mechanical Lug, Dual Rated Connector Copper and Aluminum 90 Degree C, 3/0 - 750 kcmil, Bolt Hole 3/8 inch, Two Barrel. 2 Inline Outlets Tapped 7/8-14 UNF-2A with Tin Plated Set Scew with 1/2 inch Hex Head. Height 3 inch X Width 1-1/2 inch X Length 4-15/16 inch. Pad is 3/4 nich Thick with Two Inline .41 inch Diameter Holes on 1-3/8 inch Center. UL Listed
Tin Plated Aluminum PanelBoard Lug, Dual Rated Mechanical Lug, Dual Rated Connector Copper and Aluminum 90 Degree C, #2 - 600 kcmil, Bolt Hole 3/8 inch, 3 Outlets Tapped 7/8-14 UNF-2A ( Two on Top Row, One on Bottom). Height 3 inch X Width 2-1/2 inch X Length 4-15/16 inch. UL listed. Pad is 3/4 nich Thick with Two Inline .41 inch Diameter Holes on 1-3/8 inch Center. UL Listed

AQ 3-600

Tin Plated Aluminum PanelBoard Lug, Dual Rated Mechanical Lug, Dual Rated Connector Copper and Aluminum 90 Degree C, #2 - 600 kcmil, Bolt Hole 3/8 inch, 3 Outlets Tapped 7/8-14 UNF-2A ( Two on Top Row, One on Bottom). Height 3 inch X Width 2-1/2 inch X Length 4-15/16 inch. UL listed. Pad is 3/4 nich Thick with Two Inline .41 inch Diameter Holes on 1-3/8 inch Center. UL Listed
Aluminum PanelBoard Lug, Dual Rated Mechanical Lug, Dual Rated Connector Copper and Aluminum 90 Degree C, #2 - 600 kcmil, Bolt Hole 3/8 inch, Four Barrel. 3 inch X 2-1/2 inch X 4-15/16 inch.

AQ 4-600

Aluminum PanelBoard Lug, Dual Rated Mechanical Lug, Dual Rated Connector Copper and Aluminum 90 Degree C, #2 - 600 kcmil, Bolt Hole 3/8 inch, Four Barrel. 3 inch X 2-1/2 inch X 4-15/16 inch.

Frequently Asked Questions

What conductor sizes does the ABB AD 600 lug support?

The ABB AD 600 aluminum mechanical lug supports conductor sizes ranging from #4 AWG to 600 kcmil.

What is the bolt size for the ABB AD 600 lug?

The ABB AD 600 aluminum mechanical lug uses a 1/2 inch bolt size.

What is the plating on the ABB AD 600 mechanical lug?

The ABB AD 600 mechanical lug is tin-plated.

What are the dimensions of the ABB AD 600 lug?

The ABB AD 600 lug has a height of 1-9/16 inches, a width of 2-3/8 inches, and a length of 3-1/8 inches.

Who manufactures the AD 600 aluminum mechanical lug?

The AD 600 aluminum mechanical lug is manufactured by ABB - Installation Products.
