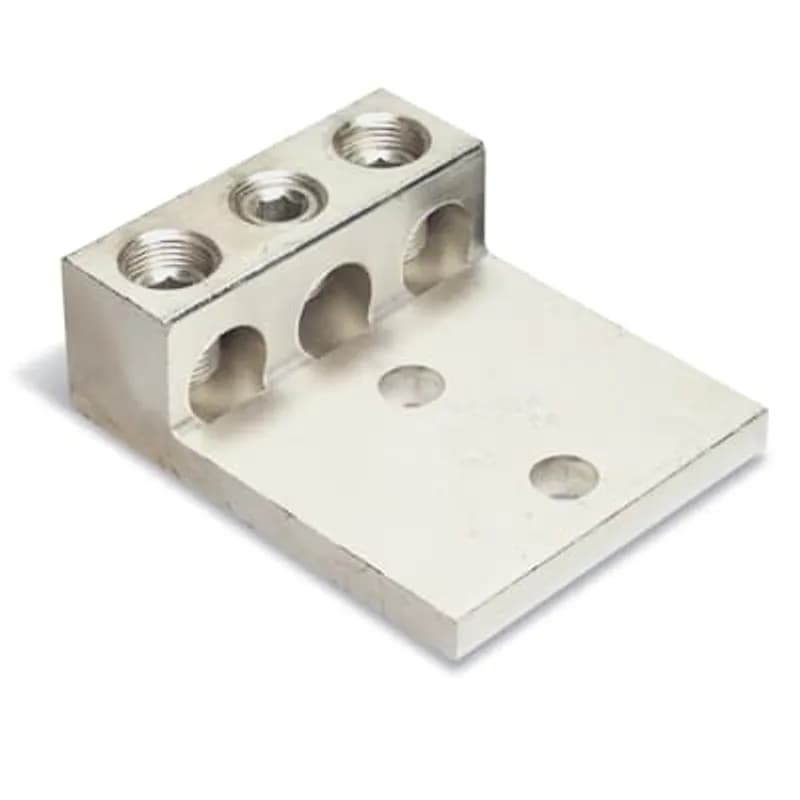

ABB - Installation Products AD 600-2 N - Aluminum Mechanical Lug, Two Barrel, #4 - 600 kcmil, Bolt Size 1/2 Inch, Height 1-9/16 Inches, Width 2-7/16 Inches, Length 4-11/16 Inches, Tin Plated

ABB Installation Products AD 600-2 N Aluminum Mechanical Lug, Two Barrel, #4 - 600 kcmil, Bolt Size 1/2 Inch, Height 1-9/16…

UPC: 783786692194


Documents & Media
Manufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB AD 600-2 N is a two-barrel aluminum mechanical lug designed for reliable electrical connections. Manufactured by ABB - Installation Products, this lug is engineered to accommodate a wide range of conductor sizes, from #4 AWG to 600 kcmil, ensuring versatility for various industrial applications. The lug features a robust aluminum construction, providing excellent conductivity and durability. Its two-barrel design allows for secure termination of multiple conductors or a single large conductor, simplifying wiring configurations and enhancing connection integrity. The bolt size is 1/2 inch, facilitating straightforward installation with standard tools. Key dimensions include a height of 1-9/16 inches, a width of 2-7/16 inches, and a length of 4-11/16 inches, allowing for efficient use of space in electrical enclosures. The tin plating on the AD 600-2 N enhances corrosion resistance and further improves electrical contact, ensuring long-term performance in demanding environments. This mechanical lug is suitable for use in power distribution, motor control, and other industrial electrical systems where secure and dependable connections are paramount. Its construction adheres to industry standards for mechanical lugs, providing confidence in its performance and longevity. The UNSPSC code for this product is 39121408.
  • Two-barrel aluminum mechanical lug for secure connections
  • Accommodates conductor sizes from #4 AWG to 600 kcmil
  • Features a 1/2 inch bolt size for easy installation
  • Tin plated for enhanced corrosion resistance and conductivity
  • Durable aluminum construction for industrial applications

Specifications

Bolt Size
1/2 in
Connection Type
Mechanical Lug
Finish
Tinned
Material
Aluminum
Series
AD 600-2 N
Size
#4 - 600 kcmil
Type
Aluminum Mechanical Lug
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.6800 L
Package Weight (Metric)
0.3080 kg
2 Port Aluminum Dual Rated Transformer Stud Connector 350 MCM -6 AWG with 5/8" Stud Aluminum dual rated transformer stud connectors are versatile and reusable set screw connectors made from 6061T-6 aluminum alloy for superior electrical and mechanical performance. Clear plated for low contact resistance- stud is tin plated copper which provides low contact resistance for connection to transformer. For use with copper and aluminum conductors. Meets or exceeds ANSI C119.4 Class A. Rated 600V. Temperature rating 90 degrees C.

TS350-2

2 Port Aluminum Dual Rated Transformer Stud Connector 350 MCM -6 AWG with 5/8" Stud Aluminum dual rated transformer stud connectors are versatile and reusable set screw connectors made from 6061T-6 aluminum alloy for superior electrical and mechanical performance. Clear plated for low contact resistance- stud is tin plated copper which provides low contact resistance for connection to transformer. For use with copper and aluminum conductors. Meets or exceeds ANSI C119.4 Class A. Rated 600V. Temperature rating 90 degrees C.
The PCSB4-3S-12Y Multi-Tap Mechanical Lug has a flexible design that can be used as a tap, splice, or dead-end Lug. Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance. Insulated with clear PVC to eliminate the need for taping and allow for visual inspection of the complete conductor insertion. UL Listed and CSA Certified.

PCSB4-3S-12Y

The PCSB4-3S-12Y Multi-Tap Mechanical Lug has a flexible design that can be used as a tap, splice, or dead-end Lug. Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance. Insulated with clear PVC to eliminate the need for taping and allow for visual inspection of the complete conductor insertion. UL Listed and CSA Certified.
AL 1CNDTR 1HOLE MOUNT 6-350STR TP

ADR35

AL 1CNDTR 1HOLE MOUNT 6-350STR TP
Aluminum Mechanical Lug, Two Barrel, 350 - 800 kcmil, Bolt Size 1/2 Inch, NEMA Bolt Hole Spacing of 1-3/4 Inches, Height 1-7/8 Inches, Width 3-3/16 Inches, Length 6-3/16 Inches, Tin Plated

AD 800-2 N

Aluminum Mechanical Lug, Two Barrel, 350 - 800 kcmil, Bolt Size 1/2 Inch, NEMA Bolt Hole Spacing of 1-3/4 Inches, Height 1-7/8 Inches, Width 3-3/16 Inches, Length 6-3/16 Inches, Tin Plated
Tin Plated Aluminum, Dual Rated Mechanical Lug, #14 - 1/0 CU7AL. Length 4-5/16 inch x 9/16 inch wide x 3/4 inch Tall. 7 Outlets - Tapped 7/16 - 20 UNF-2B. Includes 7 Tin Plated Slotted Aluminum Set Screws

ANB 100-7

Tin Plated Aluminum, Dual Rated Mechanical Lug, #14 - 1/0 CU7AL. Length 4-5/16 inch x 9/16 inch wide x 3/4 inch Tall. 7 Outlets - Tapped 7/16 - 20 UNF-2B. Includes 7 Tin Plated Slotted Aluminum Set Screws
Tin Plated Aluminum PanelBoard Lug, Dual Rated Mechanical Lug, Dual Rated Connector Copper and Aluminum 90 Degree C, #2 - 600 kcmil, Bolt Hole 3/8 inch, 2 Inline Outlets Tapped 7/8-14 UNF-2A. Height 3 inch X Width 1-1/2 inch X Length 4-15/16 inch. UL listed. Pad is 3/4 nich Thick with Two Inline .41 inch Diameter Holes on 1-3/8 inch Center. UL Listed

AQ 2-600

Tin Plated Aluminum PanelBoard Lug, Dual Rated Mechanical Lug, Dual Rated Connector Copper and Aluminum 90 Degree C, #2 - 600 kcmil, Bolt Hole 3/8 inch, 2 Inline Outlets Tapped 7/8-14 UNF-2A. Height 3 inch X Width 1-1/2 inch X Length 4-15/16 inch. UL listed. Pad is 3/4 nich Thick with Two Inline .41 inch Diameter Holes on 1-3/8 inch Center. UL Listed
Tin Plated Aluminum PanelBoard Lug, Dual Rated Mechanical Lug, Dual Rated Connector Copper and Aluminum 90 Degree C, 3/0 - 750 kcmil, Bolt Hole 3/8 inch, Two Barrel. 2 Inline Outlets Tapped 7/8-14 UNF-2A with Tin Plated Set Scew with 1/2 inch Hex Head. Height 3 inch X Width 1-1/2 inch X Length 4-15/16 inch. Pad is 3/4 nich Thick with Two Inline .41 inch Diameter Holes on 1-3/8 inch Center. UL Listed

AQ 2-750

Tin Plated Aluminum PanelBoard Lug, Dual Rated Mechanical Lug, Dual Rated Connector Copper and Aluminum 90 Degree C, 3/0 - 750 kcmil, Bolt Hole 3/8 inch, Two Barrel. 2 Inline Outlets Tapped 7/8-14 UNF-2A with Tin Plated Set Scew with 1/2 inch Hex Head. Height 3 inch X Width 1-1/2 inch X Length 4-15/16 inch. Pad is 3/4 nich Thick with Two Inline .41 inch Diameter Holes on 1-3/8 inch Center. UL Listed
Tin Plated Aluminum PanelBoard Lug, Dual Rated Mechanical Lug, Dual Rated Connector Copper and Aluminum 90 Degree C, #2 - 600 kcmil, Bolt Hole 3/8 inch, 3 Outlets Tapped 7/8-14 UNF-2A ( Two on Top Row, One on Bottom). Height 3 inch X Width 2-1/2 inch X Length 4-15/16 inch. UL listed. Pad is 3/4 nich Thick with Two Inline .41 inch Diameter Holes on 1-3/8 inch Center. UL Listed

AQ 3-600

Tin Plated Aluminum PanelBoard Lug, Dual Rated Mechanical Lug, Dual Rated Connector Copper and Aluminum 90 Degree C, #2 - 600 kcmil, Bolt Hole 3/8 inch, 3 Outlets Tapped 7/8-14 UNF-2A ( Two on Top Row, One on Bottom). Height 3 inch X Width 2-1/2 inch X Length 4-15/16 inch. UL listed. Pad is 3/4 nich Thick with Two Inline .41 inch Diameter Holes on 1-3/8 inch Center. UL Listed

Frequently Asked Questions

What conductor sizes does the ABB AD 600-2 N lug support?

The ABB AD 600-2 N lug supports conductor sizes ranging from #4 AWG to 600 kcmil.

What is the bolt size for the ABB AD 600-2 N lug?

The bolt size for the ABB AD 600-2 N lug is 1/2 inch.

What material is the ABB AD 600-2 N lug made of?

The ABB AD 600-2 N lug is constructed from aluminum.

Does the ABB AD 600-2 N lug have a protective coating?

Yes, the ABB AD 600-2 N lug is tin plated for enhanced corrosion resistance.

What are the dimensions of the ABB AD 600-2 N lug?

The ABB AD 600-2 N lug has a height of 1-9/16 inches, a width of 2-7/16 inches, and a length of 4-11/16 inches.
