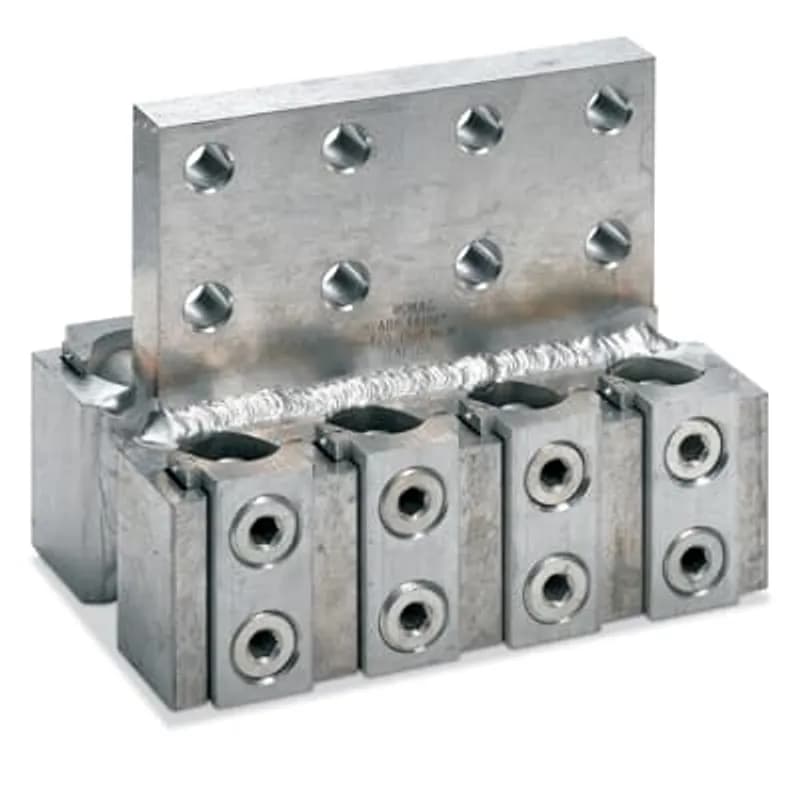

ABB - Installation Products ABK 221000 - Aluminum Lay-In Transformer Spade Connectors - ABK 1000 series, back to back, conductor range 1/0-1000, outlets 4

ABB Installation Products ABK 221000 Aluminum Lay-In Transformer Spade Connectors - ABK 1000 series, back to back, conductor…

UPC: 783786969852


Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 3

Multiplier: 3

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB ABK 221000 is an Aluminum Lay-In Transformer Spade Connector from the ABK 1000 series. Designed for efficient and reliable electrical connections, this connector facilitates the joining of conductors to transformer terminals. It features a back-to-back configuration, enabling multiple connections from a single point. Key specifications include a conductor range of 1/0 to 1000 kcmil, accommodating a broad spectrum of aluminum conductor sizes commonly found in industrial and utility applications. The connector provides four distinct outlets, allowing for the termination of multiple conductors to a single transformer lug or busbar. This design simplifies wiring configurations and reduces the need for complex junction boxes. Manufactured by ABB - Installation Products, the ABK 221000 is built for robust performance in electrical distribution systems. Its lay-in design simplifies installation, allowing conductors to be easily inserted and secured without the need for complex tools or procedures. This efficiency is crucial in large-scale installations where time and labor savings are significant factors.
  • ABB ABK 1000 series Aluminum Lay-In Transformer Spade Connector
  • Back to back configuration for efficient wiring
  • Accommodates conductor sizes from 1/0 to 1000 kcmil
  • Provides four (4) outlets for multiple conductor terminations
  • Ideal for transformer connections in industrial and utility applications

Specifications

Application
Pad-Mount Tranformer Connector
Conductor Range
1/0 to 1000 kcmil
Connection
Mechanical
Connection Type
Lay-In, Spade Connector
Insulation
False
Material
Aluminum
Number of Conductors
4
Poles
4
Series
ABK 1000
Size
6.312 inch long, Pad 3 inch x 3.5 inch x .75 inch thick
Size
1/0-1000
Special Features
Back to Back Outlets
Standard
RUS Accepted
Type
Lay-In Transformer Connector
Package Dimensions (L x W x H)
13.18 IN x 7.75 IN x 7 IN
Package Dimensions (L x W x H)
33.4772 cm x 19.685 cm x 17.78 cm
Package Weight (Imperial)
3.9300 L
Package Weight (Metric)
1.7830 kg
EZ Keeper, Aluminum Transformer Connector, 1/0 - 1000 kcmil, Aluminum and Copper, Bolt 1/2 inch, Six Conductor

ABK 61000 C

EZ Keeper, Aluminum Transformer Connector, 1/0 - 1000 kcmil, Aluminum and Copper, Bolt 1/2 inch, Six Conductor
Aluminum Transformer Connector-CSS Series, screw-on style, cable range 2-500, stud size 1 inch, insulator length 11-3/16 inch, outlets 8

CSS 8500

Aluminum Transformer Connector-CSS Series, screw-on style, cable range 2-500, stud size 1 inch, insulator length 11-3/16 inch, outlets 8
Tin-Plated Copper Eyebolt Adapter, Pin Diameter 1 inch x 7.5 inch long, Bolt 1/2 inch, Four hole NEMA Pad.

CEA 4-100-4 1/2

Tin-Plated Copper Eyebolt Adapter, Pin Diameter 1 inch x 7.5 inch long, Bolt 1/2 inch, Four hole NEMA Pad.
NEMA Transformer Spade Adapters - TSC series, Aluminum, with 10 Bolt Holes - .562 inch Diameter - two Rows of 5 on 1.75 inch centers, spade thickness 3/4 inch x 8.75 inch long x 4 inch wide.

TSC 10

NEMA Transformer Spade Adapters - TSC series, Aluminum, with 10 Bolt Holes - .562 inch Diameter - two Rows of 5 on 1.75 inch centers, spade thickness 3/4 inch x 8.75 inch long x 4 inch wide.
Tin Plated Copper, Spade Adapter, 6.5 inch long x 2.25 inch wide x .25 inch thick. Has two .562 inch diameter holes on one end and (2) 30 Degree Off-set Slotted Holes on other end.

TSC 22 CE

Tin Plated Copper, Spade Adapter, 6.5 inch long x 2.25 inch wide x .25 inch thick. Has two .562 inch diameter holes on one end and (2) 30 Degree Off-set Slotted Holes on other end.
Aluminum Flood-Seal Mechanical Connectors-Mechanical 500 kcmil connectors, dual rated, PVC Insulated, cable range feeder outlet S/L 2-500, outlets 4, length 8-3/8 in

SHC 500-4

Aluminum Flood-Seal Mechanical Connectors-Mechanical 500 kcmil connectors, dual rated, PVC Insulated, cable range feeder outlet S/L 2-500, outlets 4, length 8-3/8 in
Aluminum Transformer Spade Connectors - ABN Series, cable range 6-250, length 7-7/8 inch, uses boot no. SB 11, outlets 6

ABN 640

Aluminum Transformer Spade Connectors - ABN Series, cable range 6-250, length 7-7/8 inch, uses boot no. SB 11, outlets 6
SweetHeart Multiport Bus connector, #2-1000 kcmil, Aluminum Connector with Black PVC Coating, 6 Conductors/Towers (3 per side) with 2-Holes each, Includes (12) Screws, (6) Insulating Rockets and Silicone Grease Packets. 7-7/64 inch wide x 10-1/2 inch tall.

UH 1000-33 R

SweetHeart Multiport Bus connector, #2-1000 kcmil, Aluminum Connector with Black PVC Coating, 6 Conductors/Towers (3 per side) with 2-Holes each, Includes (12) Screws, (6) Insulating Rockets and Silicone Grease Packets. 7-7/64 inch wide x 10-1/2 inch tall.
