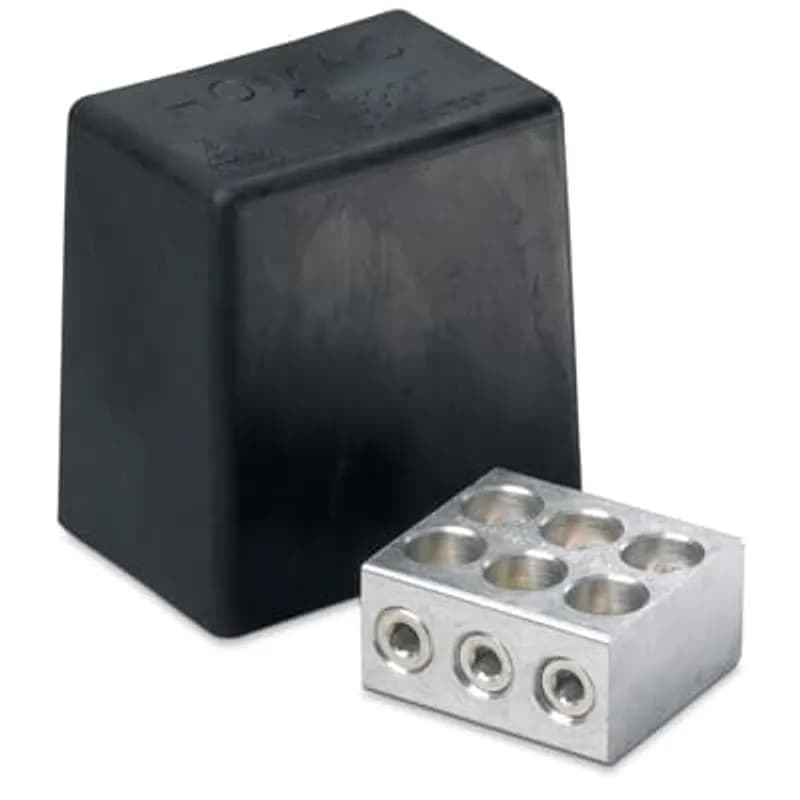

ABB - Installation Products ABC 350-33 - Aluminum Set-Screw Bar Pedestal Connectors - Double-Row Bar cable range 12-350, length 3 in, width 2-1/2 in, boot no. FB 33, outlets 6

ABB Installation Products ABC 350-33 Aluminum Set-Screw Bar Pedestal Connectors - Double-Row Bar cable range 12-350, length 3…

UPC: 783786682393

Documents & Media
Manufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB Installation Products ABC 350-33 is a robust aluminum set-screw bar pedestal connector designed for reliable electrical connections. This double-row bar connector is engineered to accommodate a wide cable range from 12 to 350 kcmil, ensuring versatility for various industrial applications. With a compact form factor, it measures 3 inches in length and 2-1/2 inches in width, making it suitable for installations where space is a consideration. The ABC 350-33 features 6 poles, providing ample connection points for complex wiring configurations. Its set-screw connection type ensures a secure and dependable mechanical connection, crucial for maintaining electrical integrity under load. This connector is compatible with boot number FB 33, offering an additional layer of protection and insulation where needed. Manufactured by ABB Installation Products, the ABC 350-33 (SKU: ABC 350-33) is built to meet the demands of industrial environments. Its aluminum construction offers excellent conductivity and corrosion resistance, contributing to its longevity and performance. The double-row bar design facilitates organized and efficient cable management, simplifying installation and maintenance processes. This connector is an essential component for power distribution, control systems, and other electrical infrastructure projects requiring secure and high-capacity cable termination. The precise dimensions and pole count make it a practical choice for panel builders and electrical contractors seeking dependable connection solutions. Ensure proper torque is applied to the set screws for optimal performance and safety.
  • Aluminum construction for conductivity and corrosion resistance
  • Set-screw connection type for secure termination
  • Accommodates 12-350 kcmil cable range
  • 6-pole double-row bar configuration
  • Compact dimensions: 3" length, 2-1/2" width

Specifications

Application
Designed for use in Above Grade Pedestals
Insulation
No
Material
Aluminum
Mounting
Pedestal
Special Features
High Strength Aluminum Alloy - Contant Bolting Pressure on Conductors maintained. Ball-Bottom Screws ensure maximum conductor contact pressure. Also breaks up interstrand oxides
Standard
ANSI C119.4 Class A Tests
Type
Set Screw Bar Pedestal Connectors
Wire Size
#12 to 350 kcmil
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.0000 L
Package Weight (Metric)
0.4540 kg
Aluminum Set-Screw Bar Pedestal Connectors - Single-Line Bar, cable range 12-350, length 6 inch, boot no. BB 11 (Yellow), outlets 6, Oxide Inhibitor, with Insulated PVC BB Series Cover Color Yellow

ABC 6350 C BB 11YW

Aluminum Set-Screw Bar Pedestal Connectors - Single-Line Bar, cable range 12-350, length 6 inch, boot no. BB 11 (Yellow), outlets 6, Oxide Inhibitor, with Insulated PVC BB Series Cover Color Yellow
Aluminum Set-Screw Bar Pedestal Connectors - Single-Line Bar, cable range 6-250, length 3-7/16 inch, outlets 4, Uses Boot number BB 10 - order separately.

ABC 440

Aluminum Set-Screw Bar Pedestal Connectors - Single-Line Bar, cable range 6-250, length 3-7/16 inch, outlets 4, Uses Boot number BB 10 - order separately.
Aluminum Set-Screw Bar Pedestal Connectors - Single-Line Bar, cable range 6-500, length 4-1/16 inch, outlets 4, Uses Boot number BB 11 - order separately.

ABC 4500

Aluminum Set-Screw Bar Pedestal Connectors - Single-Line Bar, cable range 6-500, length 4-1/16 inch, outlets 4, Uses Boot number BB 11 - order separately.
Aluminum Set-Screw Bar Pedestal Connectors - Double-Row Bar cable range 6-500, length 3-1/16 in, width 2-3/4 in, boot no. FB 33, outlets 6

ABC 500-33

Aluminum Set-Screw Bar Pedestal Connectors - Double-Row Bar cable range 6-500, length 3-1/16 in, width 2-3/4 in, boot no. FB 33, outlets 6
Aluminum Set-Screw Bar Pedestal Connectors - Single-Line Bar, cable range 1/0-750, length 11-3/16 inch, outlets 8, Uses Boot number BB 15 - order separately.

ABC 8750

Aluminum Set-Screw Bar Pedestal Connectors - Single-Line Bar, cable range 1/0-750, length 11-3/16 inch, outlets 8, Uses Boot number BB 15 - order separately.
Aluminum Set-Screw Bar Pedestal Connectors - Single-Line Bar, cable range 1/0-750, length 5-9/16 inch, outlets 4, Uses Boot number BB 13 - order separately.

ABC 4750

Aluminum Set-Screw Bar Pedestal Connectors - Single-Line Bar, cable range 1/0-750, length 5-9/16 inch, outlets 4, Uses Boot number BB 13 - order separately.
Aluminum Set-Screw Bar Pedestal Connectors - Single-Line Bar, cable range 12-350, length 3 inch, outlets 3, Uses Boot number BB 10 - order separately.

ABC 3350

Aluminum Set-Screw Bar Pedestal Connectors - Single-Line Bar, cable range 12-350, length 3 inch, outlets 3, Uses Boot number BB 10 - order separately.
Aluminum Set-Screw Bar Pedestal Connectors - Single-Line Bar, cable range 12-350, length 4 inch, outlets 4, Uses Boot number BB 10 - order separately.

ABC 4350

Aluminum Set-Screw Bar Pedestal Connectors - Single-Line Bar, cable range 12-350, length 4 inch, outlets 4, Uses Boot number BB 10 - order separately.

Frequently Asked Questions

What is the cable range for the ABC 350-33 connector?

The ABB ABC 350-33 connector is designed to accommodate a cable range from 12 to 350 kcmil.

What type of connection does the ABC 350-33 use?

The ABC 350-33 utilizes a set-screw connection type for secure electrical termination.

How many poles does the ABB ABC 350-33 connector have?

The ABB ABC 350-33 features a double-row bar design with 6 poles.

What are the physical dimensions of the ABC 350-33 connector?

The ABC 350-33 connector has a length of 3 inches and a width of 2-1/2 inches.

What material is the ABC 350-33 connector made from?

The ABB ABC 350-33 connector is constructed from aluminum.
