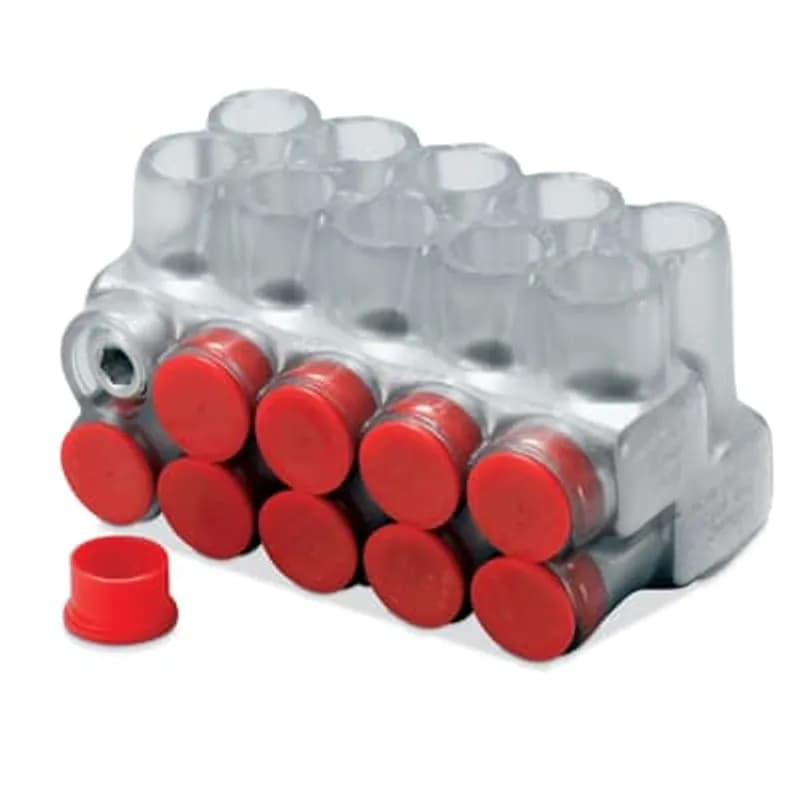

ABB - Installation Products ZVB 5053 - Aluminum Pedestal Connectors - insulated, cable range 12-350, length 5-1/4 in, outlets 10

ABB Installation Products ZVB 5053 Aluminum Pedestal Connectors - insulated, cable range 12-350, length 5-1/4 in, outlets 10

UPC: 783786760855

Documents & Media
Manufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB ZVB 5053 Aluminum Pedestal Connector is designed for reliable electrical connections in industrial and utility applications. This insulated connector accommodates a cable range from 12 to 350 kcmil, providing versatility for various wiring needs. With ten distinct outlets, it facilitates efficient multi-point connections from a single source. The connector measures 5-1/4 inches in length, offering a compact footprint for installation. Manufactured by ABB - Installation Products, this component is built to specified standards for electrical infrastructure. Its insulated design enhances safety during installation and operation, crucial for maintaining system integrity. The ZVB 5053 is suitable for applications requiring secure and organized distribution of electrical power. Key specifications include: * **Manufacturer:** ABB - Installation Products * **SKU:** ZVB 5053 * **Material:** Aluminum * **Insulation:** Yes * **Cable Range:** 12-350 kcmil * **Length:** 5-1/4 inches * **Number of Outlets:** 10 This connector is a practical choice for electrical distribution points where multiple connections are necessary. Its construction ensures a secure electrical pathway for the specified cable sizes.
  • Insulated aluminum construction for safety and conductivity
  • Accommodates cable sizes from 12 to 350 kcmil
  • Features 10 individual outlets for multi-point connections
  • Compact design with a 5-1/4 inch length
  • Manufactured by ABB - Installation Products (SKU: ZVB 5053)

Specifications

Insulation
Yes
Material
Aluminum
Mounting
Pedestal
Special Features
Clear PVC Encapsulation enables safe installations, disconnects and provides insulation. Compact Zeebar design - doubles cable capacity. Easy to Install. All screws are on the top, and a 5/16 inch hex wrench is all you need. Ball-Bottom screws ensure maximum conductor contact pressure
Type
Aluminum Pedestal Connectors
Wire Size
#12 to 350 kcmil
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.0000 L
Package Weight (Metric)
0.4540 kg
