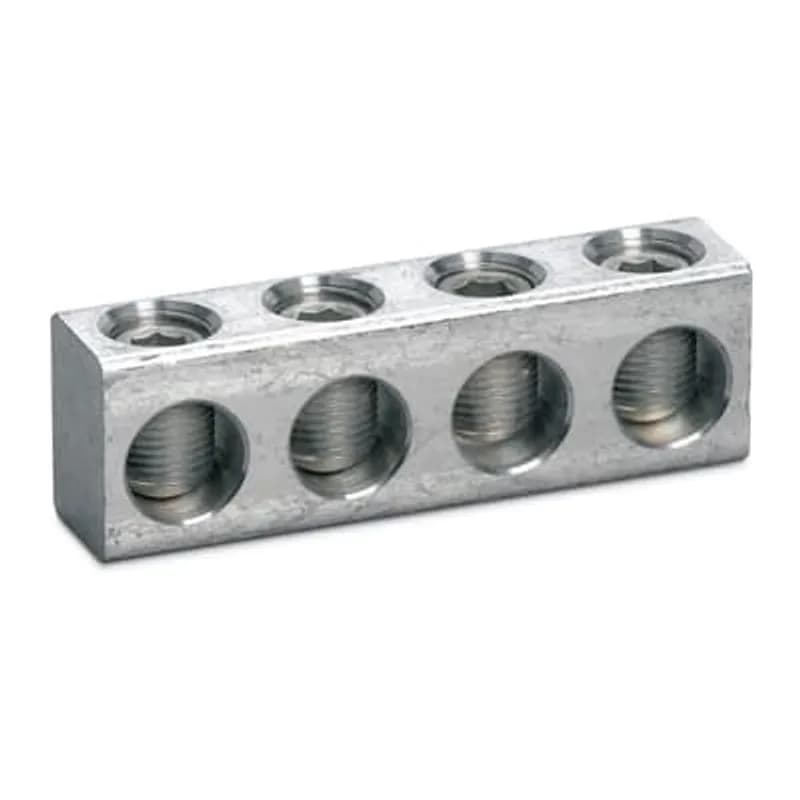

ABB - Installation Products ABC 4500 - Aluminum Set-Screw Bar Pedestal Connectors - Single-Line Bar, cable range 6-500, length 4-1/16 inch, outlets 4, Uses Boot number BB 11 - order separately.
ABB - Installation Products

ABC 4500

UPC: 783786682515

Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 50

Multiplier: 50

*Contact for lower quantities*

Overview

The ABB ABC 4500 is a robust aluminum set-screw bar pedestal connector designed for reliable electrical connections. Manufactured by ABB - Installation Products, this single-line bar connector is engineered to accommodate a wide cable range from 6 to 500 kcmil, providing versatility for various industrial applications. Its compact design features a length of 4-1/16 inches and is equipped with four outlets, allowing for multiple cable terminations. The set-screw mechanism ensures a secure and lasting connection, crucial for maintaining electrical integrity in demanding environments. For optimal performance and sealing, this connector requires the use of Boot number BB 11, which must be ordered separately. The UNSPSC code for this product is 39121447. This connector is a key component for electrical infrastructure, offering a dependable solution for power distribution and management. Its aluminum construction offers excellent conductivity and corrosion resistance, ensuring longevity and performance. The straightforward design facilitates installation and maintenance, minimizing downtime. When specifying electrical components, the ABB ABC 4500 stands out for its practical design and broad cable compatibility, making it a valuable addition to any electrical project requiring secure and efficient bar connections.
  • Aluminum construction for conductivity and corrosion resistance
  • Set-screw design for secure connections
  • Accommodates cable range from 6 to 500 kcmil
  • Features 4 outlets for multiple terminations
  • Requires ABB Boot BB 11 (order separately)

Specifications

Application
Designed for use in Above Grade Pedestals
Connection
Mechanical
Connection Type
Set-Screw
Insulation
No
Material
Aluminum
Mounting
Pedestal
Size
4-1/16 inch
Special Features
High Strength Aluminum Alloy - Contant Bolting Pressure on Conductors maintained. Ball-Bottom Screws ensure maximum conductor contact pressure. Also breaks up interstrand oxides
Standard
ANSI C119.4
Type
Set Screw Bar Pedestal Connector
Wire Size
#6 to 500 kcmil
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.4100 L
Package Weight (Metric)
0.1860 kg
Aluminum Set-Screw Bar Pedestal Connectors - Double-Row Bar cable range 6-500, length 3-1/16 in, width 2-3/4 in, boot no. FB 33, outlets 6

ABC 500-33

Aluminum Set-Screw Bar Pedestal Connectors - Double-Row Bar cable range 6-500, length 3-1/16 in, width 2-3/4 in, boot no. FB 33, outlets 6
Aluminum Set-Screw Bar Pedestal Connectors - Single-Line Bar, cable range 1/0-750, length 11-3/16 inch, outlets 8, Uses Boot number BB 15 - order separately.

ABC 8750

Aluminum Set-Screw Bar Pedestal Connectors - Single-Line Bar, cable range 1/0-750, length 11-3/16 inch, outlets 8, Uses Boot number BB 15 - order separately.
Aluminum Set-Screw Bar Pedestal Connectors - Single-Line Bar, cable range 1/0-750, length 5-9/16 inch, outlets 4, Uses Boot number BB 13 - order separately.

ABC 4750

Aluminum Set-Screw Bar Pedestal Connectors - Single-Line Bar, cable range 1/0-750, length 5-9/16 inch, outlets 4, Uses Boot number BB 13 - order separately.
Aluminum Set-Screw Bar Pedestal Connectors - Single-Line Bar, cable range 12-350, length 3 inch, outlets 3, Uses Boot number BB 10 - order separately.

ABC 3350

Aluminum Set-Screw Bar Pedestal Connectors - Single-Line Bar, cable range 12-350, length 3 inch, outlets 3, Uses Boot number BB 10 - order separately.
Aluminum Set-Screw Bar Pedestal Connectors - Single-Line Bar, cable range 12-350, length 4 inch, outlets 4, Uses Boot number BB 10 - order separately.

ABC 4350

Aluminum Set-Screw Bar Pedestal Connectors - Single-Line Bar, cable range 12-350, length 4 inch, outlets 4, Uses Boot number BB 10 - order separately.
Aluminum Set-Screw Bar Pedestal Connectors - Single-Line Bar, cable range #12 to 350 kcmil, length 6 inch, outlets 6, includes Ball-Bottomed screws. Uses Boot number BB 11 - order separately

ABC 6350

Aluminum Set-Screw Bar Pedestal Connectors - Single-Line Bar, cable range #12 to 350 kcmil, length 6 inch, outlets 6, includes Ball-Bottomed screws. Uses Boot number BB 11 - order separately
Aluminum Set-Screw Bar Pedestal Connectors - Single-Line Bar, cable range 6-250, length 5-3/16 inch, outlets 6, Uses Boot number BB 11 - order separately.

ABC 640

Aluminum Set-Screw Bar Pedestal Connectors - Single-Line Bar, cable range 6-250, length 5-3/16 inch, outlets 6, Uses Boot number BB 11 - order separately.
Aluminum Set-Screw Bar Pedestal Connectors - Single-Line Bar, cable range 6-500, length 6-1/16 inch, outlets 6, Uses Boot number BB 12 - order separately.

ABC 6500

Aluminum Set-Screw Bar Pedestal Connectors - Single-Line Bar, cable range 6-500, length 6-1/16 inch, outlets 6, Uses Boot number BB 12 - order separately.
