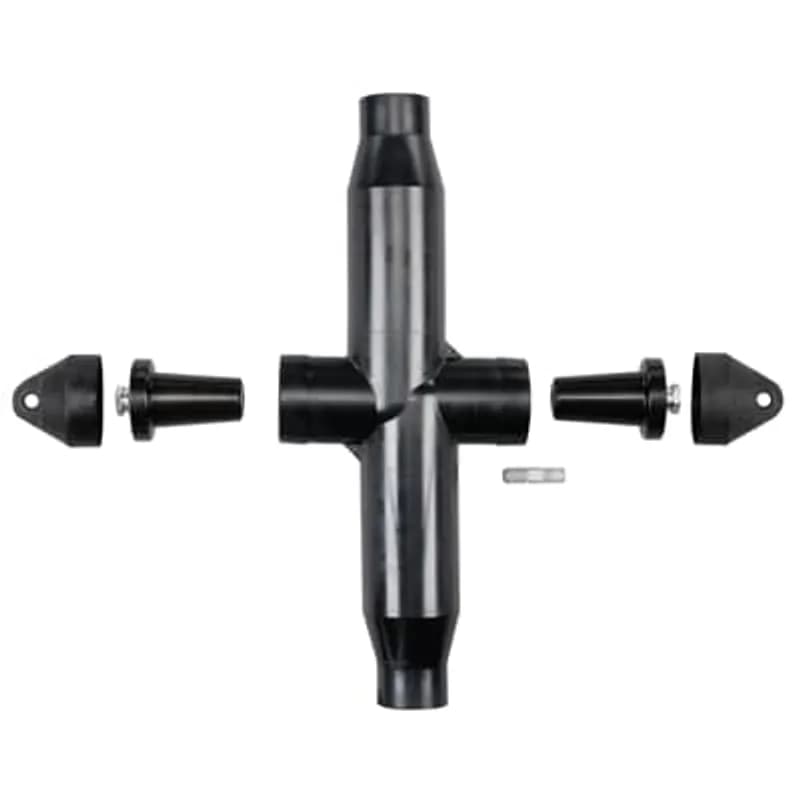

ABB - Installation Products 755VSL2-NAC03 - 600 Amp, 35kV, 600 Series Deadbreak 2-Way VS-Kit. Cable Insulation Diameter 1.550 inch to 1.780 inch. Tin Plated Aluminum Shear Bolt Connector. Conductor Size kcmil - Compressed, Stranded, Compacted, Solid 350 to 750 kcmil.
More images

ABB Installation Products 755VSL2-NAC03 600 Amp, 35kV, 600 Series Deadbreak 2-Way VS-Kit. Cable Insulation Diameter 1.550 inch…

UPC: 075114422079

Documents & Media
Manufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB 600 Series 2-Way Deadbreak VS-Kit (SKU: 755VSL2-NAC03) is engineered for reliable 35 kV power distribution applications. This kit is designed to terminate and connect medium voltage cables, providing a secure and insulated connection point. It supports a current rating of 600 Amps, making it suitable for a range of industrial and utility power systems. The VS-Kit accommodates cable insulation diameters from 1.550 inches to 1.780 inches, ensuring compatibility with commonly used cable sizes. The connection mechanism features a tin-plated aluminum shear bolt connector, offering excellent conductivity and corrosion resistance. This connector is designed for compressed, stranded, compacted, and solid conductors, with a conductor size range of 350 kcmil to 750 kcmil. Key specifications include: * **Voltage Rating:** 35 kV * **Current Rating:** 600 A * **Connection Type:** 2-Way Deadbreak * **Cable Insulation Diameter Range:** 1.550" - 1.780" * **Conductor Size Range:** 350 - 750 kcmil (Compressed, Stranded, Compacted, Solid) * **Connector Material:** Tin-Plated Aluminum Shear Bolt * **Series:** 600 This deadbreak kit is essential for creating safe and efficient connections in switchgear, transformers, and other medium voltage equipment. The deadbreak design allows for the isolation and de-energization of circuits under load, enhancing safety during maintenance and operational changes. ABB's commitment to quality in their Installation Products ensures dependable performance in demanding electrical environments.
  • 600 Amp, 35 kV voltage rating for medium voltage applications
  • 2-Way Deadbreak connection type for safe circuit isolation
  • Accommodates cable insulation diameters from 1.550" to 1.780"
  • Tin-plated aluminum shear bolt connector for 350-750 kcmil conductors
  • ABB 600 Series for reliable power system connections

Specifications

Amperage Rating
600 A
Color
Black
Conductor Range
350 to 750 kcmil
Connection
Mechanical
Insulation
EPDM Rubber
Material
Housing - EPDM-Rubber
Special Features
35 kV, 600 Amps
Temperature Rating, Maximum
149 F
Temperature Rating, Maximum
65 C
Temperature Rating, Minimum
-40 F
Temperature Rating, Minimum
-40 C
Type
2-Way Vault Stretcher Kit
Voltage Rating
35 kV
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.0000 L
Package Weight (Metric)
0.4540 kg
