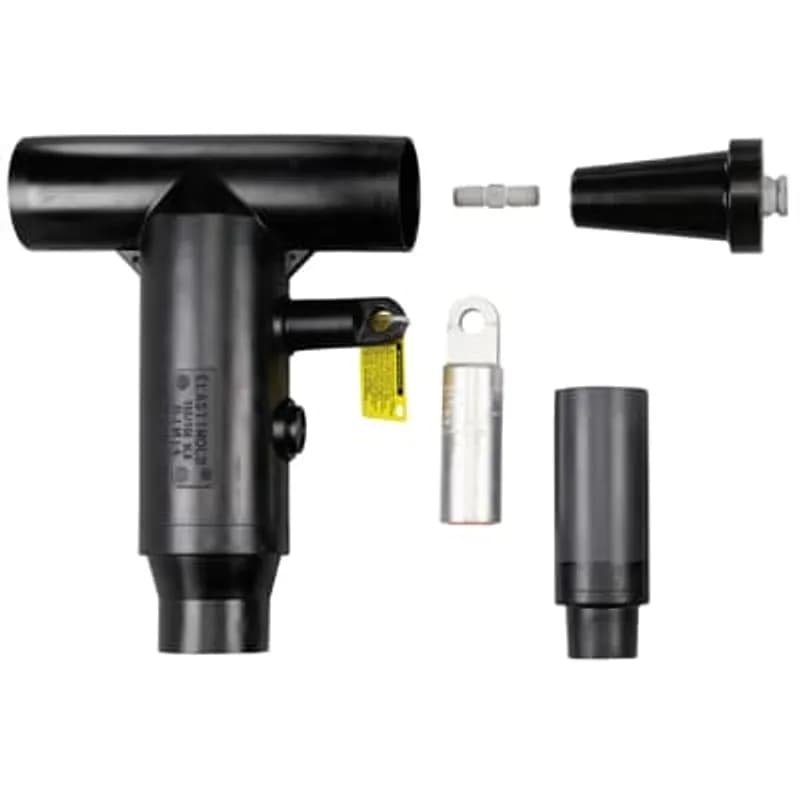

ABB - Installation Products 755DLR-K0250 - 600 Amp, 35KV, Direct Test Elbow, with Insulated Plug, Cap, Stud, Lug and Cable Adapter, Cable Insulation Diameter 1.090 inch to 1.310 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded 2/0 or Compacted/Solid 3/0.

ABB Installation Products 755DLR-K0250 600 Amp, 35KV, Direct Test Elbow, with Insulated Plug, Cap, Stud, Lug and Cable Adapter…

UPC: 075114428453


Documents & Media
Installation InstructionsSpecification SheetManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB Installation Products 755DLR-K0250 is a 35kV, 600 Amp direct test elbow kit engineered for medium-voltage cable connections and testing in industrial and utility environments. This deadbreak elbow connector incorporates the Elastimold® Direct Test System (EDTS), featuring an insulated port for safe, direct conductor voltage testing without deconnector removal. The kit includes a fully shielded, submersible molded rubber housing with 100% peroxide-cured EPDM insulation and conductive materials for long-term reliability. Key specifications include a continuous current rating of 600 Amps, maximum phase-to-ground operating voltage of 21.1kV, and phase-to-phase voltage of 36.6kV. The connector meets ANSI/IEEE Standard 386 with a 150kV BIL impulse withstand rating and 50kV AC one-minute withstand. It supports cable insulation diameters from 1.090 inches to 1.310 inches and accommodates stranded 2/0 AWG or compacted/solid 3/0 AWG conductors via the included aluminum compression lug. Designed for deadbreak applications, the 755DLR-K0250 enables safe connection and disconnection under de-energized conditions using standard hand tools. The insulated plug and shielded cap protect the test port during normal operation, while the cable adapter ensures proper alignment and sealing. Optional accessories expand functionality for visible separation, bypass, isolation, grounding, and fault current indication. Ideal for medium-voltage power distribution networks, this kit streamlines maintenance and troubleshooting by eliminating the need to remove connectors for testing.
  • 35kV voltage class, 600 Amp continuous current rating
  • Elastimold® Direct Test System (EDTS) for safe conductor voltage testing
  • Supports cable insulation diameters 1.090" to 1.310"
  • Aluminum compression lug for stranded 2/0 or compacted/solid 3/0 AWG conductors
  • Fully shielded, submersible molded rubber housing with peroxide-cured EPDM materials

Specifications

Amperage Rating
600 A
Color
Black
Conductor Range
2/0 STR/COMPR AWG , 3/0 SOL/COMPT AWG
Connection
Compression
Current Rating
600 A
Environmental Conditions
All Weather Conditions
Insulation
True
Material
Aluminum
Material
Aluminum Lug, EPDM-Rubber Body
Size
Cable Insulation Diameter 1.090 inch to 1.310 inch
Special Features
Fully Shielded, Fully Submersible. Comes with Insulated Plug, Cap, Stud, Lug and Cable Adapter
Standard
ANSI/IEEE Standard 386
Temperature Rating, Maximum
149 F
Temperature Rating, Maximum
65 C
Temperature Rating, Minimum
-40 F
Temperature Rating, Minimum
-40 C
Type
Deadbreak Direct Test Elbow Connector
Voltage Rating
35 kV
Voltage Rating
35kV
Width
12.23 in
Width
310.642 mm
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.0000 L
Package Weight (Metric)
0.4540 kg
35kV 600 Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and Cable Adapter). Aluminum Compression Lug. Cable Insulation Diameter 0.980 inch to 1.180 inch. Conductor Size AWG or kcmil, Compressed Stranded 2/0 /Compacted Solid 3/0 /mmSquared Compact 70.

756LR-J0250

35kV 600 Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and Cable Adapter). Aluminum Compression Lug. Cable Insulation Diameter 0.980 inch to 1.180 inch. Conductor Size AWG or kcmil, Compressed Stranded 2/0 /Compacted Solid 3/0 /mmSquared Compact 70.
Single cable clamp 150-300mm2 for power terminal type 5

45000034

Single cable clamp 150-300mm2 for power terminal type 5
900 Amp, 15/25kV, 600 Series Elbow with Insulated Plug, Cap, Stud, Lug and Cable Adapter. Cable Insulation Diameter 1.180 inch to 1.465 inch. Copper Compression Lug. Conductor Size kcmil, Compressed Stranded 500 /Compacted Solid 600 /mmSquared Compact 250/300. Cold Shrinkable Seal with Copper Braid and Constant Force Spring Included.

K675LR-L2330-SG3

900 Amp, 15/25kV, 600 Series Elbow with Insulated Plug, Cap, Stud, Lug and Cable Adapter. Cable Insulation Diameter 1.180 inch to 1.465 inch. Copper Compression Lug. Conductor Size kcmil, Compressed Stranded 500 /Compacted Solid 600 /mmSquared Compact 250/300. Cold Shrinkable Seal with Copper Braid and Constant Force Spring Included.
15kV 600 Series Deadbreak Elbow Tap Plug Connector, Window OP Kit, Test and Ground Connector Kit, Test and Ground kit includes - Insulated Cap, Test and Ground reducing tap plug, 600 series Elbow housing, cable adapter. Cable Insulation Diameter 1.180 inch to 1.465 inch. Tin Plated Aluminum ShearBolt Connector. Conductor Size 750 kcmil Stranded/Compressed/Compact to 1000 kcmil Stranded/Compressed/Compact.

655ETP-NAC04-DRG

15kV 600 Series Deadbreak Elbow Tap Plug Connector, Window OP Kit, Test and Ground Connector Kit, Test and Ground kit includes - Insulated Cap, Test and Ground reducing tap plug, 600 series Elbow housing, cable adapter. Cable Insulation Diameter 1.180 inch to 1.465 inch. Tin Plated Aluminum ShearBolt Connector. Conductor Size 750 kcmil Stranded/Compressed/Compact to 1000 kcmil Stranded/Compressed/Compact.
Link, Stationary Bolt, Deadbreak Link Operable Connector System, Stationary Bolted Link with Horizontal Bracket.

650LK-SB-AB-LB

Link, Stationary Bolt, Deadbreak Link Operable Connector System, Stationary Bolted Link with Horizontal Bracket.
Molded Current Limiting Fuse Housing, Nominal Fuse Voltage Rating 17.2kV, Fuse Test Port - Two Direct Test Ports, Size 3 - Large Housing, Cable Insulation Diameter 0.890 inch - 1.220 inch / 25-31mm, Aluminum Conductor size 4/0 AWG Stranded Compressed. No Sealing. 9-1/4 inch wide and 21 inch long from bottom to center of Installation O'Ring.

274AFLR3-D5270

Molded Current Limiting Fuse Housing, Nominal Fuse Voltage Rating 17.2kV, Fuse Test Port - Two Direct Test Ports, Size 3 - Large Housing, Cable Insulation Diameter 0.890 inch - 1.220 inch / 25-31mm, Aluminum Conductor size 4/0 AWG Stranded Compressed. No Sealing. 9-1/4 inch wide and 21 inch long from bottom to center of Installation O'Ring.
15 kV Loadbreak Resistive Elbow, Voltage Sensor, with IB (Impedance Matching) Board, 11 x 7 inch.

167REVSIB

15 kV Loadbreak Resistive Elbow, Voltage Sensor, with IB (Impedance Matching) Board, 11 x 7 inch.
600 Amp, 15/25kV, Direct Test Straight Receptacle Elbow. Cable Insulation Diameter 0.760 inch to 0.950 inch. Aluminum Compression Lug. Conductor Size Compressed Stranded 2/0 AWG or Compacted Solid 250 kcmil.

K655YDSR-G0240

600 Amp, 15/25kV, Direct Test Straight Receptacle Elbow. Cable Insulation Diameter 0.760 inch to 0.950 inch. Aluminum Compression Lug. Conductor Size Compressed Stranded 2/0 AWG or Compacted Solid 250 kcmil.

Frequently Asked Questions

What is the momentary current rating?

The momentary current rating is 25kA Symmetrical for 10 Cycles.

What is the Corona Extinction rating?

The Corona Extinction rating is 26kV AC at 3pC sensitivity.

What is the DC 15-minute withstand voltage?

The DC 15-minute withstand voltage for the elbow connector is 103kV.

What is the AC one-minute withstand voltage?

The AC one-minute withstand voltage for the elbow connector is 50kV.

What is the impulse withstand rating of the elbow?

The elbow has a 150kV BIL Impulse Withstand rating, measured with a 1.2 x 50 microsecond wave.

What is included in a 755DLR elbow connector kit?

Each kit contains an elbow connector housing, a copper compression lug, a stud, an insulated plug with cap, lubricant tubes, a cable adapter, and installation instructions.

What standards does the 755DLR elbow connector meet?

The 755DLR Direct Test Elbow meets ANSI/IEEE Standard 386, Latest Revision.

What is the continuous current rating of the 755DLR elbow?

The 755DLR Direct Test Elbow has a continuous current rating of 600 Amps.

What is the maximum operating voltage for this elbow connector?

The maximum phase-to-ground operating voltage for the 35kV class elbow connector is 21.1kV. The maximum phase-to-phase voltage is 36.6kV.

What is the momentary current rating?

The momentary current rating is 25kA Symmetrical for 10 Cycles.

How to Install 755/775DLR Direct Test Elbow Connectors

This guide provides step-by-step instructions for the safe and proper installation of 755/775DLR Direct Test Elbow Connectors, including cable preparation, lug crimping, and connection to high voltage apparatus.

Estimated time: 2h

Tools needed:

Wire strippers, Crimping tool, Hotstick tool, Torque wrench, Wire brush

Supplies needed:

Elbow, Cable adapter, Compression lug, Insulating plug with cap, Lubricant, Stud prepack, Hose clamps, Vinyl plastic tape, Tape retainer, Tape marker, Ground wire, Suitable ground connector

  1. Prepare the Cable for Connection

    Position the cable with enough slack for elbow removal. For concentric neutral cable, unwind the wires. Cut the cable 1-3/4” (45mm) from the centerline of the mating product. Clean the outer surface of the cable for a distance of 24” (610mm) or up to the bent-back concentric neutral wires. Remove the outer jacket to 13-5/8” (340mm). Prepare the cable shield according to its type (e.g., fold back shield wires, remove tape shield and secure with vinyl tape to 11-5/8” (295mm), or remove semi-con shield to 10-5/8” (270mm) and install tape marker to 11-5/8” (295mm)). Do not cut or nick the cable insulation. Safety: Ensure all apparatus is de-energized before starting.

  2. Install the Cable Adapter

    Bevel the end of the cable insulation at a 45-degree angle, approximately 1/4” (6mm) back. Thoroughly clean and then lubricate the cable insulation, always working toward the semi-con shield. Install the cable adapter, small end first, until it is flush with the edge of the tape marker. Remove any protruding cable insulation by cutting it even with the end of the cable adapter. Do not cut or nick the cable adapter or the conductor. Verify the exposed conductor length is between 4-5/8” (117mm) to 5” (127mm); if not, redo the assembly.

  3. Crimp the Compression Lug

    For copper conductors, fully insert the conductor into the compression lug. For aluminum conductors, wire brush the conductor and immediately fully insert it into the compression lug. Measure the "Check Dimension" before crimping; it must be less than 6-7/8” (175mm). Crimp the compression lug following the instructions supplied with the lug. Wipe all excess inhibitor from the compression lug and cable adapter surface after crimping. Verify the distance from the end of the compression lug to the cable adapter is between 6-7/8” to 7-5/8” (175mm-194mm) after crimping; if not, redo the assembly.

  4. Install the Elbow

    Lubricate the cable adapter and the inside of the elbow cable entrance. Install the elbow onto the cable adapter until it cannot advance further. Ensure the cable adapter is still flush with the tape marker; reposition the cable adapter if necessary. Remove the tape marker.

  5. Connect to Mating Product

    DANGER: Do not connect or disconnect mating products while energized. Do not energize while disconnected. Remove protective caps from both the elbow and the mating part. Hand tighten the threaded stud (supplied with the elbow) into the mating part if it is not already equipped with a stud. Clean and lubricate both the elbow and the mating part with the supplied lubricant. Push the elbow onto the mating part, carefully aligning the hole in the compression lug with the stud on the mating part. If connecting the opposite end of the elbow, clean and lubricate its mating part, insert it into the elbow, engage the threads, and hand tighten. Torque the mating part according to its specific instructions.

  6. Ground the Cable Shield and Finalize

    Insert one end of a wire (minimum No. 14 AWG copper) through the grounding eye and twist to make a small loop. Do not damage the eye. Connect this wire to ground using a suitable connector. The shield of the cable must be grounded according to the instructions supplied with any grounding device, or via an alternate method if no device is used. If an insulating plug is used as a mating part, clean and lubricate the inner surface of the voltage detection cap, then place it on the elbow and push down hard until it snaps into place. It is recommended to waterproof the cable jacket at this point to prevent moisture from entering the cable.
