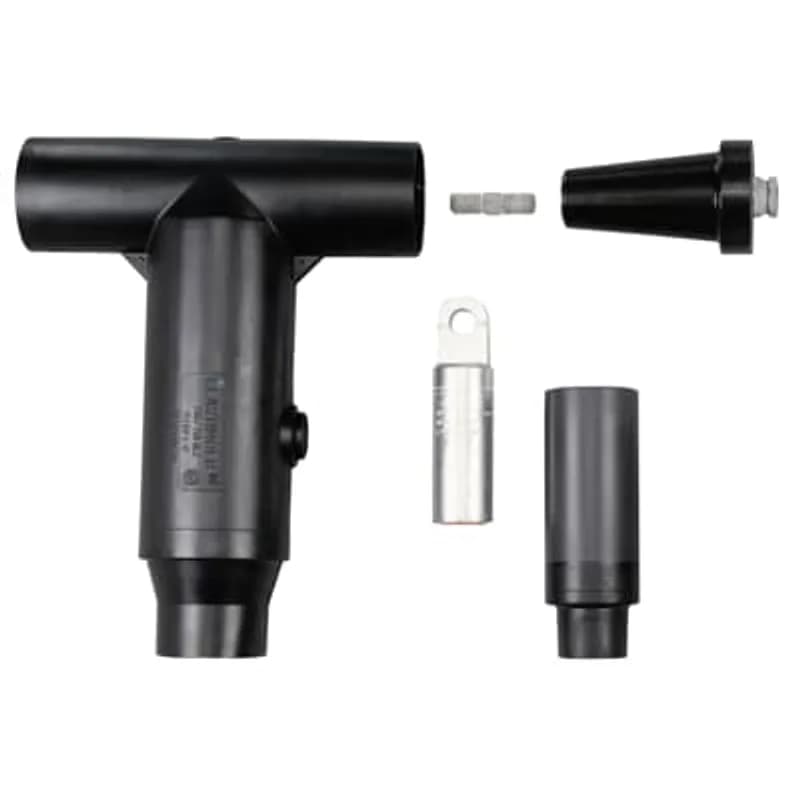

ABB Installation Products 755LR-K0250-S 35kV 600 Series Deadbreak Elbow without Test Point (with Insulated Plug, Cap, Stud, Lug…
UPC: 075114424158
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 35kV phase-to-phase voltage rating with 600A continuous current
- Accommodates cable insulation diameters from 1.090" to 1.310"
- Supports conductor sizes: 2/0 AWG to 3/0 AWG (compressed stranded) or 70 mm² (compacted solid)
- Includes aluminum compression lug and 200ECS Cold-Shrinkable Jacket Seal
- Fully shielded, dead-front molded rubber housing for submersible applications
Specifications
Amperage Rating | 600 A |
Application | Designed to provide Fully Shielded, Dead-Front Submersible Cable Connections to High-Voltage Apparatus |
Color | Black |
Conductor Range | 2/0 STR/COMPR AWG , 3/0 SOL/COMPT AWG |
Connection | Compression |
Environmental Conditions | Fully Submersible |
Insulation | True |
Material | Aluminum |
Material | Housing - EPDM-Rubber |
Series | 600 Series |
Size | Cable Insulation Diameter 1.090 inch to 1.310 inch |
Special Features | 100 Percent Peroxide-Cured Construction includes Insulation and Conductive EPDM Materials. Can be Easily Connected or Disconnected Using Standard Hand Tools and Equipment in a De-energized State. Optional Accessories allow Visible External Separation, By-Pass, Isolation, Dead-Ending, Grounding, and Testing as well as Adding Taps, Surge Arrestors, and Fault Current Indicators |
Standard | ANSI/IEEE Standard 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Deadbreak Elbow Connector |
Voltage Rating | 35 kV |
Width | 12.29 in |
Width | 312.166 mm |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |
756LR-J0250
35kV 600 Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and Cable Adapter). Aluminum Compression Lug. Cable Insulation Diameter 0.980 inch to 1.180 inch. Conductor Size AWG or kcmil, Compressed Stranded 2/0 /Compacted Solid 3/0 /mmSquared Compact 70.
K655RLR-G0240
600 Amp, 15/25kV, 600 Series Deadbreak, Replacement Elbow without Test Point, Cable Insulation Diameter 0.760 inch to 0.950 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 1/0/ Compacted Solid 2/0.
K675LR-N-5400-CS871
900 Amp, 15/25kV, 600 Series Elbow with Insulated Plug, Cap, Stud, Lug and Cable Adapter. Cable Insulation Diameter 1.515 inch to 1.780 inch. Bi-Metal Compression Lug. Conductor Size kcmil, Compressed Stranded 900 /Compacted Solid 1000 /mmSquared Compact 500. With Any Customer Specific Modifications - CS871 - CSA Compatibility.
775LR-Q5440-S-CS1634
900 Amp, 35kV, 600 Series Elbow with insulated plug, cap, stud, lug and cable adapter. Cable Insulation Diameter 1.900 inch to 2.120 inch. Bi-Metal Compression Lug. Conductor Size kcmil Compressed Stranded 1250. Cold-Shrinkable Jacket Seal Included. Factory lubricated receptacle interface and cable entrance of elbow or bushings extender.775LR-P5410-S-CS1634
900 Amp, 35kV, 600 Series Elbow with insulated plug, cap, stud, lug and cable adapter. Cable Insulation Diameter 1.725 inch to 1.935 inch. Bi-Metal Compression Lug. Conductor Size kcmil Compressed Stranded 1000. Cold-Shrinkable Jacket Seal Included. Factory lubricated receptacle interface and cable entrance of elbow or bushings extender.775LR-M5330-S-CS1634
900 Amp, 35kV, 600 Series Elbow with insulated plug, cap, stud, lug and cable adapter. Cable Insulation Diameter 1.370 inch to 1.630 inch. Bi-Metal Compression Lug. Conductor Size kcmil Compressed Stranded 500 /Compacted Solid 600 /mmSquared Compact 250/300. Cold-Shrinkable Jacket Seal Included. Factory lubricated receptacle interface and cable entrance of elbow or bushings extender.
K655ETP-J0270-DRG-S
25kV, 600 Amp Deadbreak, Test and Ground Connector Kit. Cable Insulation Diameter 0.980 inch to 1.180 inch. Aluminum Compression Lug. Conductor Size 4/0 Compressed Stranded AWG or 250 kcmil Compacted Solid. With Insulated Cap. Cold-Shrinkable Jacket Seal Included.Frequently Asked Questions
What is the maximum voltage rating for this deadbreak elbow?
The ABB 755LR-K0250-S deadbreak elbow has a voltage rating of 35kV.
What cable insulation diameters does this elbow accommodate?
This deadbreak elbow is designed for cable insulation diameters ranging from 1.090 inches to 1.310 inches.
What conductor sizes are compatible with the included lug?
The aluminum compression lug is compatible with compressed stranded 2/0 AWG, compacted solid 3/0 AWG, or 70 mm² compact conductors.
Does this deadbreak elbow include a test point?
No, this specific model (755LR-K0250-S) is a deadbreak elbow without a test point.
What is included with the 755LR-K0250-S deadbreak elbow?
The product includes an insulated plug, cap, stud, aluminum compression lug, cable adapter, and a 200ECS Cold-Shrinkable Jacket Seal.
How to Install 755/775LR Deadbreak Elbow Connectors
This guide provides step-by-step instructions for the safe and proper installation of 755LR and 775LR Deadbreak Elbow Connectors, designed for fully shielded, submersible high voltage cable connections on 35kV class systems.
Estimated time: 2h
Tools needed:
Hotstick, Crimping tool, Wire brush, Cable cutting tool, Cable stripping tool, Torque wrench, Suitable capacitive sensing device, Tape marker
Supplies needed:
755/775LR Deadbreak Elbow Connector Kit, High Voltage Cable (compatible with 755/775LR), No. 14 AWG Copper Grounding Wire (or equivalent), Suitable Ground Connector, Cable Jacket Waterproofing Material, Silicone Lubricant, Mating High Voltage Apparatus
- De-energize Apparatus and Inspect Components
Before starting, ensure all apparatus in the work area are completely de-energized. Do not touch or move energized products. Inspect all components of the 755/775LR connector kit for damage, proper rating, and compatibility with mating parts. Verify that all required tools and supplies are at hand and maintain cleanliness throughout the procedure.
- Prepare the Cable for Connection
Position the cable in its final assembled location, ensuring enough slack for elbow removal. For concentric neutral cable, unwind the neutral wires. Cut the cable 1-3/4” (45mm) from the centerline of the mating product. Clean the outer jacket of the cable for a distance of 24” (610mm). Prepare the cable according to the specific dimensions for your cable type (e.g., non-jacketed, jacketed, unishield, lead sheath), removing the outer jacket and semi-con shield as required by the provided diagrams.
- Install Cable Adapter and Prepare Conductor
Bevel the end of the cable insulation at a 45-degree angle, approximately 1/4” (6mm) back. Thoroughly clean and lubricate the cable insulation, working towards the semi-con shield. Install the cable adapter, small end first, until it is flush with the edge of the tape marker. Carefully remove the protruding cable insulation, cutting it even with the end of the cable adapter without nicking the adapter or conductor. The exposed conductor length must be between 4-3/8” to 4-3/4” (111mm-121mm).
- Crimp the Compression Lug
For copper conductors, fully insert the conductor into the compression lug. For aluminum conductors, wire brush the conductor immediately before fully inserting it into the lug. Measure the 'Check Dimension' before crimping; it must be less than 7” (178mm). Crimp the compression lug according to the instructions supplied with the lug. After crimping, wipe off any excess inhibitor and verify the distance from the end of the lug to the cable adapter is between 6-7/8” to 7-5/8” (175mm-194mm).
- Install the Elbow Connector
Lubricate the cable adapter and the inside of the elbow cable entrance. Install the elbow onto the cable adapter until it cannot advance further. Ensure the cable adapter remains flush with the tape marker; reposition if necessary. Remove the tape marker.
- Connect to Mating Apparatus
Remove protective caps from both the elbow and the mating apparatus. If the mating part lacks a stud, hand tighten the threaded stud supplied with the elbow into it. Clean and lubricate both the elbow and the mating part, keeping surfaces clean. Push the elbow onto the mating part, aligning the compression lug hole with the stud. DO NOT CONNECT OR DISCONNECT MATING PRODUCTS WHILE ENERGIZED. DO NOT ENERGIZE WHILE DISCONNECTED.
- Complete Opposite End Connection (if applicable)
If connecting to another mating part on the opposite end of the elbow, clean and lubricate its surface. Insert the mating part into the elbow, engage the threads, and hand tighten. Torque the mating part according to its specific instructions. If using an insulating plug, clean and lubricate the inner surface of the voltage detection cap and push it onto the elbow until it snaps into place.
- Ground the Cable Shield
Insert one end of a No. 14 AWG Copper (or equivalent) wire through the grounding eye and twist to form a small loop, taking care not to damage the eye. Connect this wire to ground using a suitable connector. Ensure the cable shield is properly grounded, either via a grounding device or an alternate method. It is also recommended to waterproof the cable jacket at this point to prevent moisture ingress.
- Perform Voltage Test (Post-Installation)
CAUTION: For 600A L-Kits, tighten each component to the specified torque. To test for voltage, remove the test point cap using a hotstick, peeling it off at an angle. WARNING: The voltage test point is a capacitance device, not directly connected to the conductor. Use only a suitable sensing device designed for capacitive test points and follow its manufacturer’s directions. Do not use conventional voltage measuring equipment. Treat the elbow as energized until a 'no voltage' indication is confirmed by other means, as contamination or incorrect equipment can give false readings. After testing, clean and lubricate the inside of the cap with silicone lubricant and replace it on the test point.
