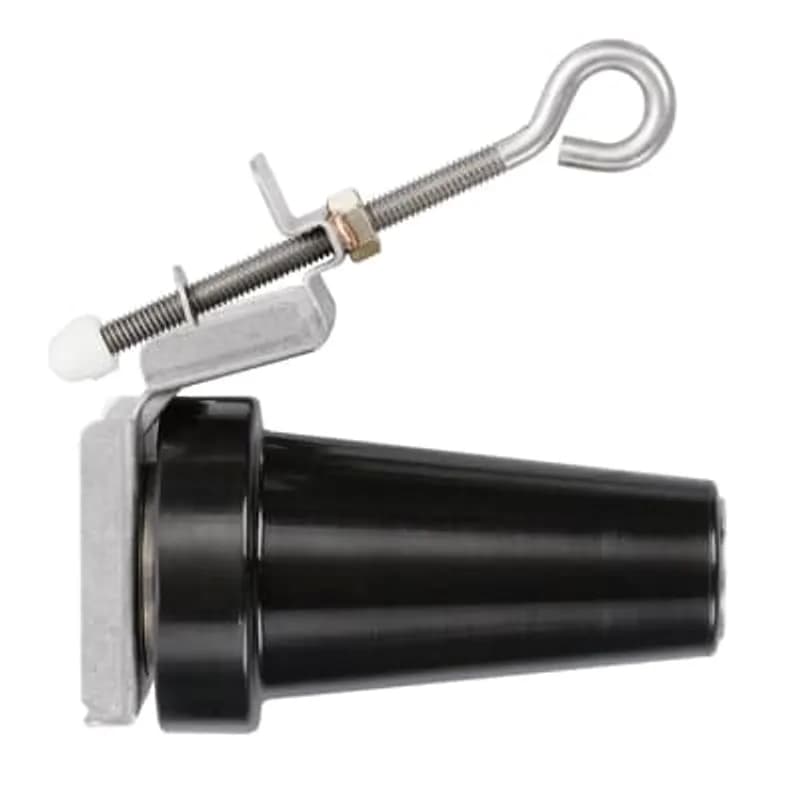

ABB Installation Products 750SOP-SP 35kV 600 Series Deadbreak Insulated Parking Bushing, Factory assembled Stud, which is…
UPC: 783786831937
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 35kV voltage rating for medium-voltage applications
- 600 Series Deadbreak design
- Factory-assembled, non-removable stud for secure connection
- Integrated Stand-Off Plug for insulation
- Durable epoxy construction
Specifications
Application | 35 kV, 600 Amps |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Insulated Parking Bushing |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |
150-TB-2
15/25kV, T-Splice 6-3/4 inch Long Bail Assembly, Made of Stainless Steel, Used for Assisting Cable to Transformer Connections. Non-Current Carrying. The 150TB2 bailing assembly kit consists of a modified hold down bail for securing Elastimold® tee splice K150T to a K150DP Deadbreak insulating plug. This assembly provides positive hold down force between the tee splice and the insulating plug.
600-225
304 Stainless Steel, Bail Locator for K656DR, Carries Current over 1000 volts. Modified 'U' Shape, .437 inch wide x .9 (13 Gage) thick Bail. 3.125 inch Tall x 2.21 inch inside Width. .18 inch Diameter Holes on each side.
K1601WJ4-AB
15/25 kV, 200 Amp Loadbreak, 4-Way Well Junction, Carries Current greater than 1000 Volts.
Frequently Asked Questions
What is the ABB 750SOP Insulated Parking Bushing?
The 750SOP is an Elastimold® Insulated Parking Bushing with a 35kV class, 600 A deadbreak interface, parking stand, and hot stick operable mounting hardware.
What is the Basic Impulse Level (BIL) rating?
The Basic Impulse Level (BIL) for the 750SOP is 150kV.
What material is used for the 750SOP mounting bracket?
The mounting bracket for the 750SOP is made of stainless steel.
Which industry standard does the 750SOP meet?
The 750SOP meets ANSI/IEEE Standard 386, Latest Revision.
What is the corona extinction voltage for the 750SOP?
The corona extinction voltage is 26kV AC at 3pC sensitivity.
What is the DC 15-minute withstand voltage rating?
The DC 15-minute withstand voltage for the 750SOP is 103kV.
What is the AC one-minute withstand voltage rating?
The AC one-minute withstand voltage for the 750SOP is 50kV.
What is the continuous current rating of the 750SOP?
The continuous current rating for the 750SOP is 600 Amps.
What are the maximum operating voltages for the 750SOP?
The maximum phase-to-ground operating voltage is 21.1kV, and the maximum phase-to-phase voltage is 36.6kV.
What is the voltage class for the 750SOP bushing?
The 750SOP is designed for a 35kV voltage class.
How to Install the LINK-C Deadbreak Cam Link Operable Connector System
This guide provides step-by-step instructions for the safe and proper installation of the LINK-C Deadbreak Cam Link Operable Connector System, including mounting, wiring, and connection procedures.
Estimated time: 2h
Tools needed:
Hot stick, Torque wrench, Suitable tool for 1 inch hex (e.g., socket wrench), Welding equipment (if using welded studs), Wire strippers, 600ATM Operating Tool
Supplies needed:
ELASTIMOLD supplied lubricant, 3/8-16 x 2 inch studs (3), 3/8-16 hex nuts (6), Lockwashers (3), No. 14 AWG or No. 12 AWG solid copper wire, Appropriate grounding connector
- Perform Initial Safety Checks and Preparation
DANGER: De-energize all apparatus before installation or removal. Do not touch or move energized products. Inspect all parts for damage, proper rating, and compatibility with mating parts. Ensure all required tools are at hand and maintain cleanliness throughout the procedure. If supplied with protective shipping covers, remove them and replace with appropriate HV insulated caps or connectors before submerging or energizing.
- Install the 600 Amp Elbow onto the Cable
Install the 600 amp elbow onto the cable according to the specific installation instructions supplied with the elbow. Ensure it is positioned to align correctly with the stand-off plug.
- Install the Mounted Stand-Off Plug (If Applicable)
If using a mounted stand-off plug, weld three 3/8-16 x 2 inch studs to the faceplate per customer standard practice. Install three hex nuts onto the studs to support the stand-off plug, ensuring it aligns with the bushing. Install the stand-off plug over the studs, resting on the nuts or spacers. Secure with a lockwasher and hex nut on each stud, tightening to 12 foot-lbs torque. Verify that the top surfaces of the bushing and stand-off plug are in-line; readjust nuts as needed.
- Install the Bushing Extender and Elbow
Clean and thoroughly lubricate the apparatus bushing and both interfaces of the 600 amp bushing extender with ELASTIMOLD supplied lubricant. Install the bushing extender onto the apparatus bushing. Insert the 600ATM into the retainer contact, engage the internal hex broach, and thread the retainer contact into the apparatus bushing using a suitable tool on the 1 inch hex portion of the 600ATM, torquing to 50-60 ft-lbs. Repeat cleaning and lubrication for the epoxy standoff plug and 600 amp elbow interfaces. Install the elbow onto the epoxy standoff plug, insert the 600AMT into the retainer contact, and thread into the epoxy standoff plug, torquing to 50-60 ft-lbs.
- Install the Alignment Bracket
Remove the bushing extender clamp and elbow clamp from the alignment bracket. Position the alignment bracket on the bushing extender 2.5 inches (63.5mm) from the grounding eye. Assemble the bushing extender clamp to the alignment bracket with supplied hardware, torquing by alternating sides until clamp tabs are flush and tight. Position the elbow in the alignment bracket so the elbow cuff aligns evenly with the bushing extender cuff. Assemble the elbow clamp to the alignment bracket with supplied hardware, torquing by alternating sides until clamp tabs are flush and tight. Ensure the elbow clamp notch faces the cable entrance of the elbow.
- Insert and Engage the Link
Clean and thoroughly lubricate both 600 ampere interfaces of the Link with ELASTIMOLD supplied lubricant. Align the Link to be perpendicular to the switch faceplate when inserted. Insert the Link into the bushing extender and elbow, ensuring both lever arms are on the inside of the alignment bracket legs. Engage the pivot pin into the slots in the alignment bracket legs. While pushing inward, move the lever arms downward using a hot stick eye to engage the roller pin and move the Link inward. Continue moving lever arms until perpendicular to the alignment bracket leg.
- Perform Grounding Procedures
Ground the elbow: Feed a #14 AWG or #12 AWG solid copper wire through the grounding eye on the elbow, twist it tight, and connect it to ground. Clean and lubricate the 200 amp interface on the Link. Ground, then install the desired mating product on the 200 amp interface per its installation instructions. Ground the cable: If using concentric neutral cable, twist the neutral wires together and connect to ground with an appropriate connector. If using 20MA or 21MA grounding devices, connect the ground lead to ground with a suitable connector. For three-phase installations, tie all grounds from all three phases to a common ground point.
- Refer to Operating Instructions
For operation of the Link and any 200 ampere mating products, refer to their respective applicable operating instructions.
