UPC: 783786635078
Documents & Media
Contact for Pricing
Minimum Qty: 180
Multiplier: 180
*Contact for lower quantities*
Overview

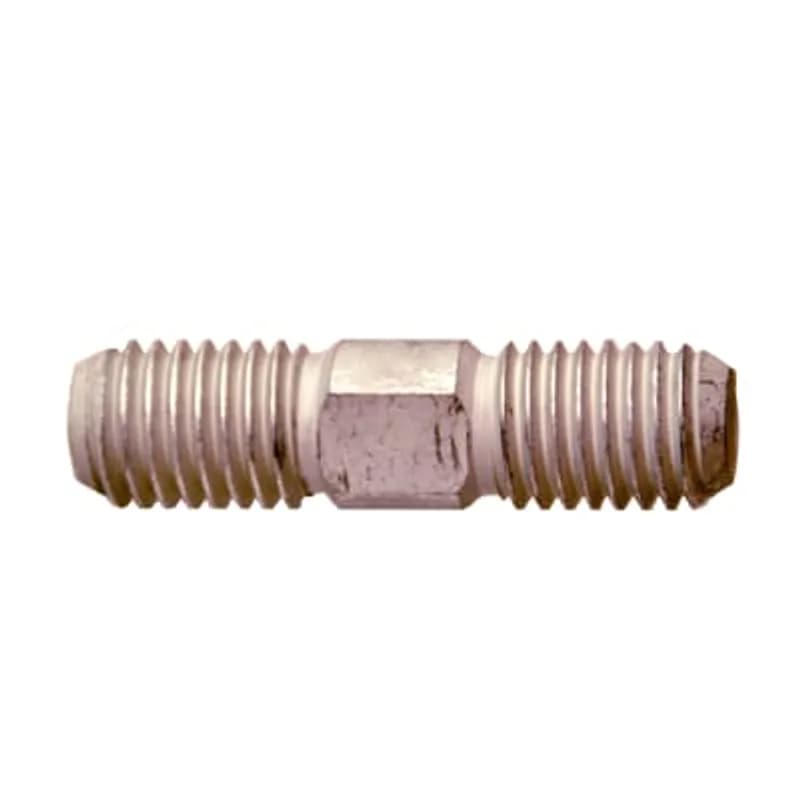

- 35kV rated voltage for medium-voltage applications
- 600A continuous current capacity
- 2.28" overall length with 0.84" threaded ends per side
- Aluminum construction for corrosion resistance
- Threaded stud design for secure, vibration-resistant connections
- Deadbreak design for safe, load-break capable connections
- ANSI C119.4 and IEEE 386 compliant
- Compatible with standard 35kV class equipment
- Part of ABB Installation Products line
- SKU: 750SA
Specifications
Application | 35kV, 600 Amps |
Connection | Mechanical |
Connection Type | Threaded Stud |
Current Rating | 600 A |
Material | Aluminum |
Series | 750SA |
Size | Length 2.28 inch 5/8-11 UNC-2A Thread |
Size | 2.28 inch |
Temperature Rating, Maximum | 194 F |
Temperature Rating, Maximum | 90 C |
Temperature Rating, Minimum | 194 F |
Temperature Rating, Minimum | 90 C |
Type | Deadbreak Elbow Threaded Stud |
Voltage Rating | 35 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.0700 L |
Package Weight (Metric) | 0.0320 kg |
K655BLR-K0330
600 Series Elbow with out Test Point, With Stud, Cable Insulation Diameter 1.090 inch to 1.310 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded 500 /Solid 600 /mmSquared 250/300.
650WINDOW-OK
Window-op, Operating Kit, Contains Grounding Elbow Package, Test Rod Assembly, Lubricant, Instruction Sheets. Tool Bag.650LT-B
15kV LINK-OP LoadBreak, Reducing Tap Plug. 600AT assembly tool required for operation and/or installation of Link-Op. 600ATM is recommended for installing Link-Op/Cam-Op retaining sleeves.
K650LT-B
25kv LRTP-link, current carrying, Rubber, Aluminum, Copper, Plastic. 25kV LINK-OP LoadBreak, Reducing Tap Plug. 600AT assembly tool required for operation and/or installation of Link-Op. 600ATM is recommended for installing Link-Op/Cam-Op retaining sleeves.750LT-B
35kV LINK-OP LoadBreak, Reducing Tap Plug. 600AT assembly tool required for operation and/or installation of Link-Op. 600ATM is recommended for installing Link-Op/Cam-Op retaining sleeves.
750LB
35kV 600 Series Deadbreak Insulating Plug / Stand-Off Plug. Overall Length 5 inch, Widest Diameter 3 inch. Epoxy Housing.Frequently Asked Questions
How do I order the 35 kV 600 Series Elbow Threaded Stud?
To order the 35 kV 600 Series Elbow Threaded Stud, specify the product number 750SA.
What is included in the 750SA kit?
Each 750SA kit contains one 600A Threaded Stud 750SA.
What material is the 750SA stud made from?
The 750SA threaded stud is made from Aluminum.
What are 750SA threaded studs used for?
750SA threaded studs are used to assemble 35 kV 600A Elbow Connectors and various components.
What is the 750SA product?
The 750SA is a 35 kV 600 Series Elbow Threaded Stud, designed for 600A applications.
What is the 750SA product?
The 750SA is a 35 kV 600 Series Elbow Threaded Stud, designed for 600A applications.
How do I order the 35 kV 600 Series Elbow Threaded Stud?
To order the 35 kV 600 Series Elbow Threaded Stud, specify the product number 750SA.
What is included in the 750SA kit?
Each 750SA kit contains one 600A Threaded Stud 750SA.
What material is the 750SA stud made from?
The 750SA threaded stud is made from Aluminum.
What are 750SA threaded studs used for?
750SA threaded studs are used to assemble 35 kV 600A Elbow Connectors and various components.
