Overview

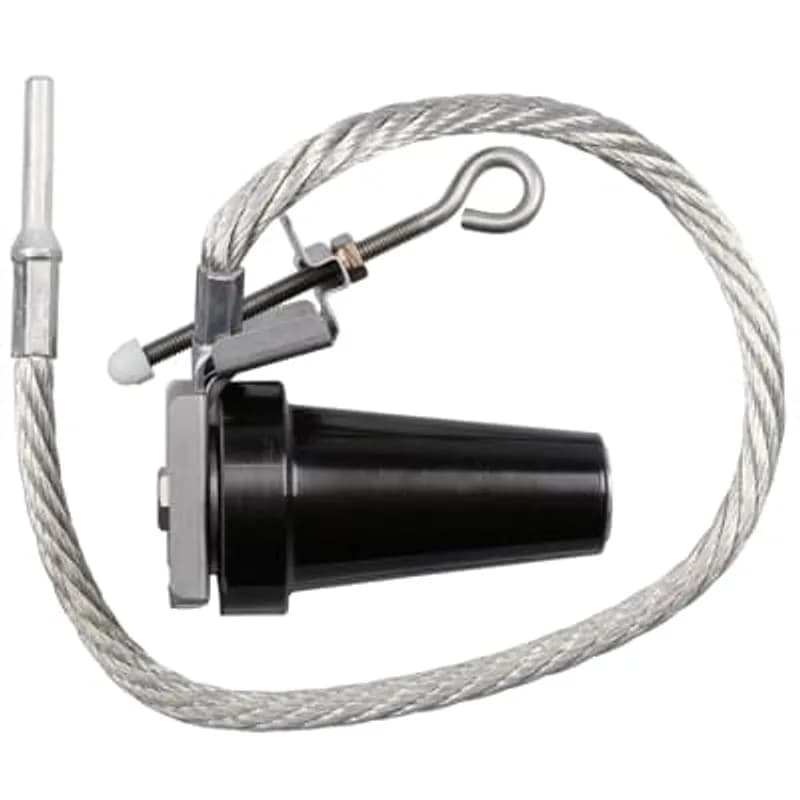

- 35kV voltage rating
- 600 Series Deadbreak configuration
- Includes 2/0 AWG x 30 ft ground lead
- Loose stud for versatile connection
- Manufactured by ABB - Installation Products
Specifications
Application | 35 kV, 600 Amps |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Grounding Plug |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |
168FLR1-B5220
Molded Current Limiting Fuse Housing, Nominal Fuse Voltage Rating 8.3kV, Fuse Test Port - Two Capacitive Test Ports, Small Housing, Cable Insulation Diameter 0.635 inch - 0.905 inch / 16-23mm, Bi-Metal Conductor size 2 AWG Stranded/Compressed, 1 AWG Solid/Compact. no Sealing Kit
VAG-022-00
Solenoid Valve Connectors, Field Wireable, 3 Pole, Form A 18mm, 24V, 10A, LED w/MOV, .5-NPT opening
T1505063000-000
Rectangular hoods and bases portfolio features base housing, cover, hood, or hood and base housing assembly with inserts connector product types. Products are designed for bottom, side, top, or top and side cable entry. Rectangular hoods and bases offer solutions with a variety of hood and base locking device types as well as connector mounting types.
375DRG(3)
200 Amp, 35kV, Loadbreak, Insulated Cap with Ground, Equipped with Insulated Cuff. Ground Lead Length 38 inch and Black.
Frequently Asked Questions
What is the ordering number for the grounding plug?
To order the 35kV, 600A grounding plug, specify the ordering number 750GP.
What is included in the 750GP kit?
Each kit contains one 750GP Grounding Plug, one tube of lubricant 82-08, and one Installation Instruction IS-0247.
What are the main features of the 750GP?
Key features include a 35kV, 600 Amp rating, visible external separation and grounding, a 6-foot 1/0 AWG grounding cable, a stainless steel bracket, and hot stick operability.
What type of grounding cable is included?
The 750GP is equipped with 6 feet (183cm) of 1/0 AWG grounding cable.
What are the electrical ratings of the 750GP?
The 750GP is rated for a 35kV voltage class and 600 Amp continuous current. It also has a 25kA Sym – 10 Cycles Momentary rating.
What is the 750GP grounding plug?
The 750GP is a 35kV 600A Deadbreak Grounding Plug. It is fully rated for 35kV, 600 Amp applications.
What is the ordering number for the grounding plug?
To order the 35kV, 600A grounding plug, specify the ordering number 750GP.
What is included in the 750GP kit?
Each kit contains one 750GP Grounding Plug, one tube of lubricant 82-08, and one Installation Instruction IS-0247.
What are the main features of the 750GP?
Key features include a 35kV, 600 Amp rating, visible external separation and grounding, a 6-foot 1/0 AWG grounding cable, a stainless steel bracket, and hot stick operability.
What type of grounding cable is included?
The 750GP is equipped with 6 feet (183cm) of 1/0 AWG grounding cable.
How to Install the LINK-C Deadbreak Cam Link Operable Connector System
This guide provides step-by-step instructions for the safe installation and setup of the LINK-C 600 amp deadbreak cam link operable connector system, including mounting, wiring, and grounding procedures.
Estimated time: 1h
Tools needed:
Torque wrench, Socket wrench (1 inch hex), Hot stick, Wire strippers, 600ATM Operating Tool
Supplies needed:
ELASTIMOLD supplied lubricant, #14 AWG or #12 AWG solid copper wire, Appropriate grounding connector, HV insulated cap(s) or connector(s) (if replacing shipping covers)
- Prepare for Installation and Ensure Safety
DANGER: Ensure all apparatus is de-energized before beginning installation or removal of any parts. This product must only be installed by competent personnel trained in high voltage electrical equipment safety practices. Inspect all parts for damage, proper rating, and compatibility with mating components. If supplied with protective shipping covers, remove them and replace with appropriate HV insulated caps or connectors before energizing or submerging the circuit. Read all instructions thoroughly before starting.
- Install the 600 Amp Elbow onto the Cable
Install the 600 amp elbow onto the cable according to the specific installation instructions provided with the elbow. Ensure it is positioned to properly align with the stand-off plug or apparatus bushing.
- Install the Bushing Extender
Clean and thoroughly lubricate the apparatus bushing and both interfaces of the 600 amp bushing extender using ELASTIMOLD supplied lubricant. Insert the 600ATM Operating Tool into the retainer contact and engage its internal hex broach. Install the bushing extender onto the apparatus bushing. Insert the retainer contact into the bushing extender and thread it into the apparatus bushing using a suitable tool applied to the 1-inch hex portion of the 600ATM Operating Tool. Torque to 50-60 ft-lbs.
- Install the 600 Amp Elbow onto the Epoxy Standoff Plug
Clean and thoroughly lubricate the epoxy standoff plug and both interfaces of the 600 amp elbow with ELASTIMOLD supplied lubricant. Insert the 600ATM Operating Tool into the retainer contact and engage its internal hex broach. Install the elbow onto the epoxy standoff plug. Insert the retainer contact into the 600 amp elbow through the hole in the compression lug and thread it into the epoxy standoff plug using a suitable tool applied to the 1-inch hex portion of the 600ATM Operating Tool. Torque to 50-60 ft-lbs.
- Install the Alignment Bracket
Remove the bushing extender clamp and elbow clamp from the alignment bracket. Position the alignment bracket on the bushing extender at a dimension of 2.5 inches (63.5mm) from the grounding eye. Assemble the bushing extender clamp to the alignment bracket with the supplied hardware, torquing by alternating sides until the clamp tabs are flush and tight on both sides.
- Position and Secure the Elbow in the Alignment Bracket
Position the elbow in the alignment bracket so that the elbow cuff is lined up evenly with the bushing extender cuff. Assemble the elbow clamp to the alignment bracket with the supplied hardware, torquing by alternating sides until the clamp tabs are flush and tight on both sides. Ensure the elbow clamp notch faces the cable entrance of the elbow.
- Insert and Engage the LINK-C Connector
Clean and thoroughly lubricate both 600 ampere interfaces of the Link with ELASTIMOLD supplied lubricant. Align the Link so it is perpendicular to the switch faceplate when inserted into the bushing extender and elbow. Insert the Link, ensuring both lever arms are on the inside of the alignment bracket legs. Engage the pivot pin into the slots in the alignment bracket legs. While pushing inward, move the lever arms downward using a hot stick eye, engaging the roller pin and moving the Link inward. Continue moving lever arms until they are perpendicular to the alignment bracket leg.
- Ground the System and Install Mating Products
Ground the elbow by feeding a #14 AWG or #12 AWG solid copper wire through the grounding eye, twisting it tight, and connecting it to ground. Clean and lubricate the 200 amp interface on the Link. Ground the cable: if using concentric neutral cable, twist the neutral wires together and connect to ground with an appropriate connector; if using 20MA or 21MA grounding devices, connect the ground lead to ground with a suitable connector. For three-phase installations, tie all grounds from all three phases to a common ground point. Install the desired 200 amp mating product onto the Link's 200 amp interface according to its specific instructions.
