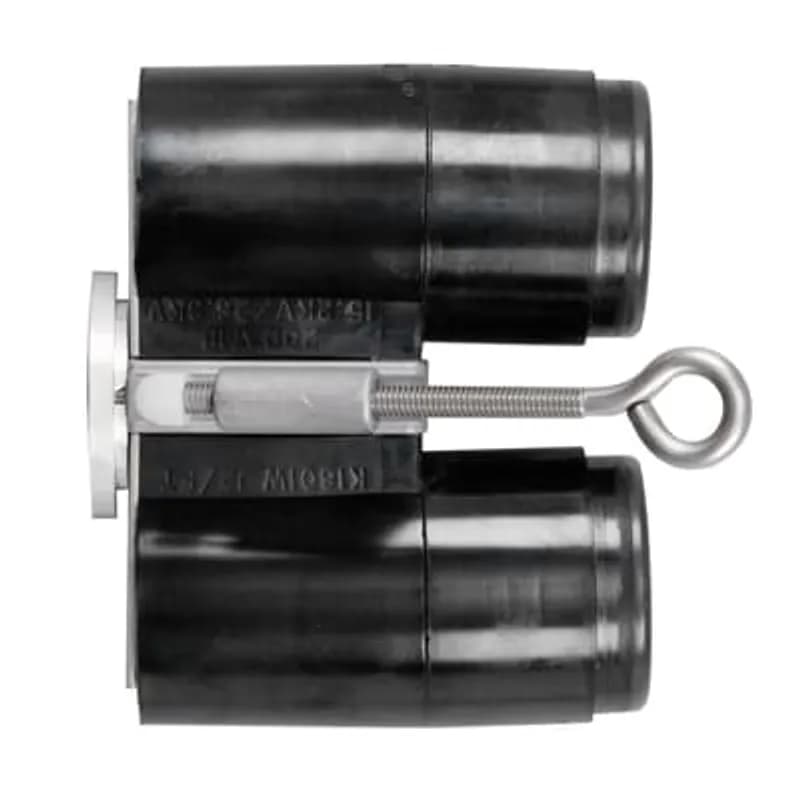

ABB Installation Products K1601WFT2-AB-BT 15/25 kV, 200 Amp, Loadbreak, Feed-Thru Well Adjustable Bracket with Bail Tabs for 2…
UPC: 075114194945
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 15/25 kV, 200 Amp continuous and loadbreak rated
- Fully shielded and submersible for energized operation
- Adjustable bracket with bail tabs for two-point secure mounting
- Compatible with 15kV/25kV loadbreak and deadbreak bushing inserts
- Meets ANSI/IEEE Standard 386 with 10kA symmetrical fault close capability
Specifications
Application | 15 kV, 200 Amps |
Current Rating | 200 A |
Mounting Type | Adjustable Bracket with Bail Tabs |
Series | K1601WFT2 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -4 F |
Temperature Rating, Minimum | -20 C |
Type | Feed-Thru Well |
Voltage Rating | 15/25 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 8.5300 L |
Package Weight (Metric) | 3.8690 kg |
150-TB-2
15/25kV, T-Splice 6-3/4 inch Long Bail Assembly, Made of Stainless Steel, Used for Assisting Cable to Transformer Connections. Non-Current Carrying. The 150TB2 bailing assembly kit consists of a modified hold down bail for securing Elastimold® tee splice K150T to a K150DP Deadbreak insulating plug. This assembly provides positive hold down force between the tee splice and the insulating plug.
750J2-6
Bracket for Junction, 2 Point, 600 Amp, 35kV, Hardware Pacjage consists of Brackets and Straps Only
450-23-8
15-25-35 Kv Asssmbly Tapered Nose Cone for PCJs. Natural Color. Material HDPE or Delrin. Length 2.75 inch, Outside Diameter .82 inch. Wire Size #2.775S1-200
35 kV, 900 Amps, 200 kV BIL, Deadbreak Bushing (for In-Oil and SF6 applications), Length 8.12 inch, Diameter 4-1/2 inch. Shank Length 2.938 inch. Molded Epoxy with Stainless Steel Flange. For Cover or Side-Mount Installations.450-23-1
15-25-35 Kv Asssmbly Tapered Nose Cone for PCJs. Natural Color. Material HDPE or Delrin. Length 2.75 inch, Outside Diameter 1.25 inch. Wire Size 350 kcmil.
750S1-NF-CK
35kv, 600 Amp, Short 2-15/16 inch Shank Bushing with out Stud, with standard aluminum conductor rod, includes 5/8-11 threaded hole at elbow end, includes shipping cap, with Notch Flange, With Clamp, GasketFrequently Asked Questions
What is included in the K1601WFT kit?
Each kit contains one K1601WFT feed-thru body, two units of lubricant 82-08, and one installation instruction IS-0493.
What is the K1601WFT feed-thru well?
The K1601WFT is a fully shielded, fully submersible insulated connector designed for energized operation. It serves as a junction point in electrical circuits.
What voltage classes is the K1601WFT compatible with?
The K1601WFT is suitable for use with 15kV or 25kV class loadbreak and/or deadbreak bushing inserts.
What Elastimold products mate with the K1601WFT?
The K1601WFT is designed to mate with 1601A4 Loadbreak Bushing insert, 2701A4 Loadbreak Bushing insert, and K1501A1 Deadbreak feed-thru insert.
What are the 15kV operating voltage limits?
For the 15kV class, the maximum phase-to-ground operating voltage is 8.3kV, and the maximum phase-to-phase is 14.4kV.
What is the continuous current rating for 15kV?
The continuous and loadbreak current rating for the 15kV voltage class is 200 Amp.
What is the impulse withstand rating for 15kV?
For the 15kV voltage class, the impulse withstand (BIL) is 95kV.
What are the 25kV operating voltage limits?
For the 25kV class, the maximum phase-to-ground operating voltage is 15.2kV, and the maximum phase-to-phase is 26.3kV.
What is the continuous current rating for 25kV?
The continuous and loadbreak current rating for the 25kV voltage class is 200 Amp.
What is the impulse withstand rating for 25kV?
For the 25kV voltage class, the impulse withstand (BIL) is 125kV.
How to Install the K1601WFT2-AB-BT Well Feed-Thru/Grounding Device
Instructions for installing and connecting the K1601WFT2-AB-BT Well Feed-Thru/Grounding Device.
Estimated time: 30m
Tools needed:
Hotstick, Screwdriver
Supplies needed:
Ground lead (No. 14 copper wire or equivalent), Lubricant (supplied), Bushing(s) (not included), ELASTIMOLD insulated cap or insulated plug (if applicable)
- Prepare Grounding
Insert the ground lead into the grounding lug on the mounting hardware and tighten. Connect the other end of the lead to ground, ensuring enough slack for hotstick operation.
- Prepare Bushing Wells
Remove protective shipping caps from the bushing wells. Inspect the wells to ensure they are dry and free of contaminants. Lubricate the well interface area with the supplied lubricant. Do not substitute lubricants. If not using all operating interfaces, install an ELASTIMOLD insulated cap or insulated plug before energizing.
- Install Bushings
Install the bushings into the lubricated wells according to the bushing's specific installation instructions. Ensure protective shipping caps are removed from the feed-thru wells when in use.
- Mount the Feed-Thru Device
Attach the feed-thru eye firmly to a hotstick. Using the hotstick, slide the feed-thru onto the parking stand. Unlock the hotstick and back it off to allow space for tightening the eyebolt. Rotate the hotstick clockwise to tighten the eyebolt until snug. Do not overtighten. Release the hotstick.
