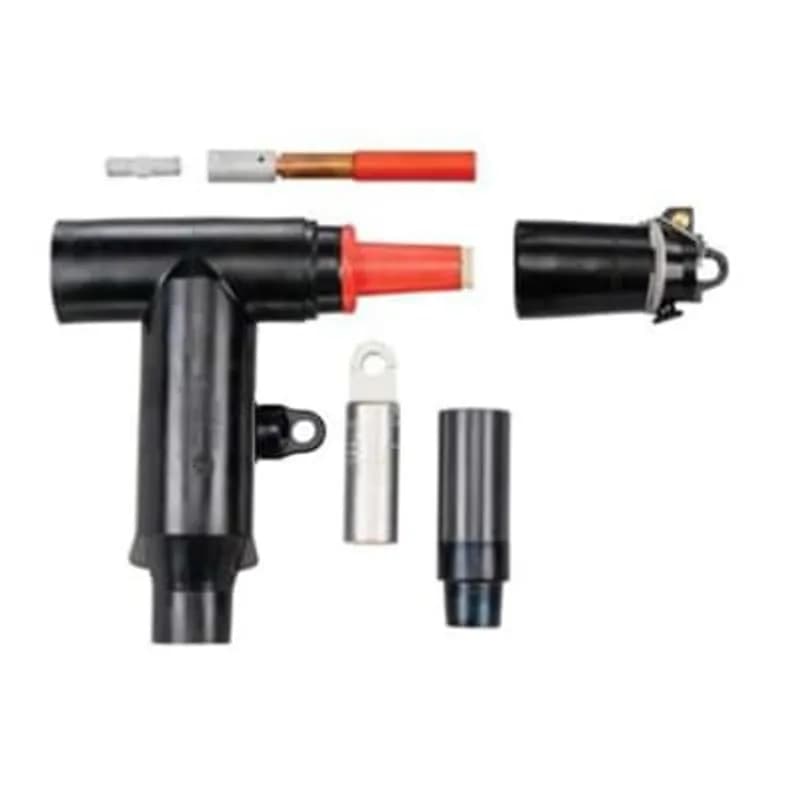

ABB Installation Products 656CETP-K0330-DRG 15kV, 600 Amp Combo T. Combo Elbow with bus, stud and cable adapter, lug and insulated…
UPC: 075114229401
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 15 kV voltage rating for medium voltage systems
- 600 Amp current rating for substantial power handling
- Accommodates cable insulation diameters from 1.090" to 1.310"
- Supports 500 kcmil compressed stranded or 600 kcmil compacted solid conductors
- Includes aluminum compression lug and insulated cap kit for complete termination
Specifications
Amperage Rating | 600 A |
Application | 600 Amps, 15kV Connector |
Color | Black |
Conductor Range | 500 kcmil , 600 kcmil |
Environmental Conditions | All Weather Conditions |
Insulation | True |
Material | Housing - EPDM-Rubber |
Special Features | Reducing Tap Plug with Stud, Cable Adapter, Lug and Insulated Cap |
Standard | ANSI/IEEE Standard 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | ComboT Elbow |
Voltage Rating | 15 kV |
Width | 13.31 in |
Width | 338.074 mm |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |

K675LR-M2330
900 Amp, 15/25kV, 600 Series Elbow with Insulated Plug, Cap, Stud, Lug and Cable Adapter. Cable Insulation Diameter 1.370 inch to 1.630 inch. Copper Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 500 /Compacted Solid 600 /mmSquared Compact 250/300.
656CETP-J5300
15kV, 600 Amp Combo T, carries current. Combo Elbow with bus, stud and cable adapter, lug and insulated cap kit. Cable Insulation Diameter 0.980 inch to 1.180 inch. Bi-Metal Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 350 /Compacted Solid 150.
656BCETP
600 Amp, 15kV, ComboT Elbow / Reducing Tap Plug (Aluminum) with Test Point - Basic Combo T Elbow with Bus and Stud.
656CETP-H0270-S
15kV, 600 Series ComboT Elbow with 200 Amp Reducing Tap Plug, Stud, Cable Adapter and Lug Kit with Test Point and Seal. Cable Insulation Diameter 0.850 - 1.050 inches (21.6-26.7mm). Aluminum Compression Lug. Conductor Size 270 - 4/0 Stranded/Compressed or 250 Solid/Compact. Kit Includes Elbow Connector Housing, Stud, Lug, Tube of Lubricant, Cable Adapter, Crimp Chart and Installation Instructions.
656CETP-H5270-DRGS
15kV, 600 Series Combo T Elbow with 200 Amp Reducing Tap Plug, Stud, Cable Adapter, Lug and Insulated Cap Kit without Test Point. S is for Cold Shrinkable Jacket Seal. Cable Insulation Diameter 0.850 to 1.050 inches (21.6-26.7 mm), Bi-Metal Compression Lug, Conductor Size Stranded/Compressed 4/0, Solid/Compact 250.
656CETP-J0290
15kV, 600 Amp Combo T Elbow with bus, stud and cable adapter, lug and insulated cap kit. Cable Insulation Diameter 0.980 inch to 1.180 inch. Aluminum Compression Lug. Conductor Size Compressed-Stranded 300 kcmil or Compacted-Solid 350 kcmil.
656CETP-G0240-DRG
15kV, 600 Amp Combo T, carries current. Combo Elbow with bus, stud and cable adapter, lug and insulated cap kit. Cable Insulation Diameter 0.760 inch to 0.950 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 1/0 /Compacted Solid 2/0.
656CETP-J0280
15kV, 600 Amp Combo T, carries current. Combo Elbow with bus, stud and cable adapter, lug and insulated cap kit. Cable Insulation Diameter 0.980 inch to 1.180 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 250 /Compacted Solid 300.Frequently Asked Questions
Can ComboT connectors include a test point?
Yes, ComboT connectors can be ordered with or without a capacitive test point.
What types of ComboT connectors are available?
ComboT connectors are available as elbow/reducing tap plugs, elbow/connecting plugs, and elbow/bushing wells.
What safety precaution is required before installation?
The system needs to be de-energized before initiating any installation of the ComboT connectors.
What stud size is used for ComboT assembly?
ComboT assembly utilizes a standard 5/8 in–11 stud that threads into the equipment bushing.
What is the maximum phase-to-phase operating voltage?
The maximum phase-to-phase operating voltage is 14.4 kV for 15 kV class CETP, 26.3 kV for 25 kV class CETP, and 28.0 kV for CCP series.
What is the continuous current rating for ComboT?
ComboT connectors have continuous current ratings of 600 A or 900 A for deadbreak applications, and 200 A for loadbreak applications.
What are the voltage classes for ComboT connectors?
ComboT connectors are available for 15 kV and 25 kV voltage classes. The CCP series also supports 15/25/28 kV.
What do the color-coded interfaces indicate?
Red interfaces are for 15 kV reducing taps, and blue interfaces are for 25 kV reducing taps, providing better visibility and seating indication.
How much does the ComboT reduce stack height?
Each combination elbow/connecting plug reduces the stack height by 2.67 inches.
What safety precaution is required before installation?
The system needs to be de-energized before initiating any installation of the ComboT connectors.
How to Install the 656CETP Deadbreak Elbow Connector
This guide details the installation of 656CETP Deadbreak Elbow Connectors, providing fully shielded, submersible deadfront cable connections to high voltage apparatus. It covers cable preparation, connector assembly, and final connection procedures. DANGER: All apparatus must be de-energized during installation or removal of parts.
Estimated time: 1h 30m
Tools needed:
Crimping tool, Wire brush, 600AT or 600ATM assembly tool, Hotstick, Capacitive voltage sensing device, Cable cutting tool, Cable stripping tool, Measuring tape
Supplies needed:
656CETP Elbow Connector kit (Elbow, Cable Adapter, Compression Lug, Lubricant), Vinyl Plastic Tape, Tape Retainer (if applicable), Tape Marker (if applicable), No. 14 AWG Copper grounding wire (or equivalent), Suitable grounding connector, Insulated cap (if replacing shipping cover), DR(G), ESA, GLR, or LR mating connector (if using tap plug interface), Silicone grease (for test point cap)
- Position Cable and Cut
Position the cable in its final assembled position with enough slack for elbow removal. For concentric neutral cable, unwind the concentric neutral wires. Cut the cable 1-3/4 inches (45mm) from the centerline of the mating product.
- Clean Cable Outer Surface
Clean the outer surface of the cable for a distance of 24 inches (610mm) or up to the bent back concentric neutral wires.
- Prepare Cable Outer Jacket and Shield (Conditional)
If using a 20MA or 21MA grounding device or 600ECS Jacket Cable Seal, refer to their specific installation instructions for outer jacket removal, shield connection, and grounding. Otherwise, proceed with the following instructions for outer jacket, shield connections, and grounding.
- Prepare Cable Shield and Outer Jacket
Remove the outer jacket to the specified dimension. Fold back shield wires. If using flat metallic tape shield, remove it and secure with vinyl plastic tape. If using fabric tape shield, remove it and install tape retainer and tape marker. If using longitudinally corrugated shield, remove it and install tape marker. If using UNISHIELD® or lead sheath cable, a 10TL cable shield adapter is required; refer to its installation instructions. If using semi-con shield, remove it and install tape marker, ensuring not to cut or nick the cable insulation.
- Bevel, Clean, Lubricate, and Install Cable Adapter
Bevel the end of the cable insulation at a 45-degree angle, approximately 1/4 inch (6mm) back. Thoroughly clean and then lubricate the cable insulation (using supplied lubricant), working towards the semi-con shield. Install the cable adapter, small end first, until it is flush with the edge of the tape marker.
- Trim Cable Insulation
Remove the protruding cable insulation by cutting it even with the end of the cable adapter. Ensure not to cut or nick the cable adapter or the conductor. The exposed conductor length should be 4-3/8 to 4-11/16 inches (111mm-119mm); if not, redo the assembly.
- Crimp Compression Lug
For copper conductors, fully insert the conductor into the compression lug. For aluminum conductors, wire brush the conductor and immediately fully insert it. Measure the 'Check Dimension' before crimping (must be less than 6-1/2 inches / 165mm). Crimp the compression lug according to the supplied crimping instructions. Wipe all excess inhibitor from the lug and cable adapter. The distance from the end of the compression lug to the cable adapter after crimping should be 6-1/2 to 7-1/4 inches (165mm-184mm); if not, redo the assembly.
- Lubricate and Install Elbow
Lubricate the cable adapter and the inside of the elbow cable entrance with the supplied lubricant. Install the elbow onto the cable adapter until it cannot advance further. Verify the cable adapter is still flush with the tape marker; if not, reposition the cable adapter. Remove the tape marker.
- Prepare Mating Products and Stud
DANGER: Do not connect or disconnect mating products while energized. Do not energize while disconnected. Remove protective caps from the elbow and the mating part. Install the stud into the apparatus by hand until fully seated. Clean and lubricate both the elbow and the mating part with the supplied lubricant, ensuring surfaces remain clean.
- Connect Elbow to Mating Part
Push the elbow onto the mating part. For products dated September 30, 2013 or earlier, use the 600AT assembly tool to engage the hex broach in the contact assembly, insert it into the elbow interface to engage the stud, and torque until the 600AT's torque limiter ratchets (19 to 25 foot/pounds). For products dated October 1, 2013 or later, use the 600ATM assembly tool, engage the hex broach, insert into the elbow interface, and tighten to 50-60 foot/pounds torque. DO NOT EXCEED 60 FOOT POUNDS TORQUE.
- Ground the Cable Shield
Insert one end of a No. 14 AWG Copper wire (or equivalent ampacity) through the grounding eye and twist to form a small loop, avoiding damage to the eye. Connect this wire to ground using a suitable connector. The cable shield must be grounded; follow instructions supplied with the grounding device or use an alternate method if no device is used. It is also recommended to waterproof the cable jacket at this point to prevent moisture ingress.
- Install Mating Connector to Tap Plug Interface
Clean and lubricate the entire loadbreak interface and either a DR(G), ESA, GLR, or LR of the appropriate voltage class with the supplied or ELASTIMOLD® approved lubricant. Install the DR(G), ESA, GLR, or LR to the tap plug interface following their respective installation instructions.
- Verify Seating Indication
Confirm complete assembly of an insulated cap or elbow by ensuring no portion of the colored interface sleeve is visible when viewed from the side.
- Perform Voltage Test (Optional)
To test if the circuit is energized, remove the test point cap with a hotstick by peeling it off at an angle. WARNING: The voltage test point is a capacitance device, not directly connected to the conductor. Do not use conventional voltage measuring equipment. Use a suitable sensing device made for capacitive test points. Contamination, moisture, or wrong equipment can give a false 'no voltage' indication. Treat the elbow as energized until the 'no voltage' indication is confirmed by other means to prevent serious injury. After testing, clean and lubricate the inside surface of the cap with silicone grease and replace it on the test point.
