Overview

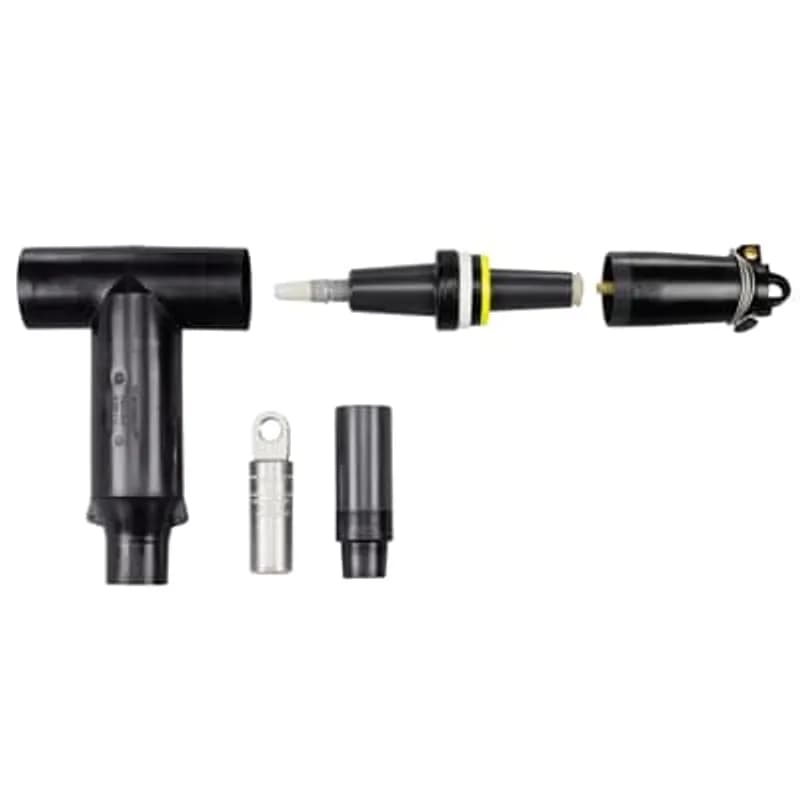

- 600 Amp, 15KV rating for high-power applications
- Stick Operated Load Break Reducing Tap Plug design
- Includes Elbow Housing, Cable Adapter, and Threaded Lug
- Accommodates cable insulation diameters from 1.370" to 1.630"
- Large Cold-Shrink Jacket Seal (1.28" - 2.3") for secure fit
Specifications
Amperage Rating | 600 to 200 A |
Application | Connect 600 Amp interface to 200 Amp Loadbreak Tap |
Color | Black |
Conductor Range | 700 to 750 kcmil , 900 kcmil |
Connection | Compression |
Environmental Conditions | All Weather Conditions |
Insulation | True |
Material | Housing - EPDM-Rubber |
Special Features | Reducing Tap Plug 600 to 200 Amps. Cold-Shrinkable Jacket Seal |
Standard | ANSI/IEEE Standard 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Stick Op Reducing Tap Plug Connector |
Voltage Rating | 15 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |
656ETP-M0380-DRG
600 Series Elbows with IEEE 386 Capacitive Test Points, 600 Amp, 15kV, Test and Ground Connector Kit, Insulated Cap. Cable Insulation Diameter 1.370 inch to 1.630 inch. Aluminum Compression Lug. Conductor Size Compressed Stranded 700/750 kcmil or Compacted Solid 900 kcmil.
756ETP-M0320-DRGA-S
35kV, 600 Amp, Deadbreak Window Op Connector Kit with Test Point, includes Insulated Cap, Test and Ground Reducing Tap Plug, 600 Series Elbow Housing, Cable Adapter and Compression Lug, without Cap's Probe. Cable Insulation Diameter 1.370 to 1.630 inches, Universal Aluminum Compression Lug, Conductor Size Stranded/Compressed 450, Solid/Compact 500/550
755VSL2-NAC03
600 Amp, 35kV, 600 Series Deadbreak 2-Way VS-Kit. Cable Insulation Diameter 1.550 inch to 1.780 inch. Tin Plated Aluminum Shear Bolt Connector. Conductor Size kcmil - Compressed, Stranded, Compacted, Solid 350 to 750 kcmil.
655CETP-M0360DRG-OMA
600 Amp, 15kV, Combo T Elbow, 200 Amp Reducing Tap Plug with Stud, Cable Adapter, Lug and Insulated Cap Kit, No Test Point, Aluminum, Cable Insulation Diameter 1.370 inch to 1.630 inch. Conductor Size 360 - 650 kcmil Stranded/Compressed or 750 kcmil Solid/Compact. OMA - Metallic Tape Shield Adapter.
755DLR-K0250
600 Amp, 35KV, Direct Test Elbow, with Insulated Plug, Cap, Stud, Lug and Cable Adapter, Cable Insulation Diameter 1.090 inch to 1.310 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded 2/0 or Compacted/Solid 3/0.
K675LR-L2330-SG3
900 Amp, 15/25kV, 600 Series Elbow with Insulated Plug, Cap, Stud, Lug and Cable Adapter. Cable Insulation Diameter 1.180 inch to 1.465 inch. Copper Compression Lug. Conductor Size kcmil, Compressed Stranded 500 /Compacted Solid 600 /mmSquared Compact 250/300. Cold Shrinkable Seal with Copper Braid and Constant Force Spring Included.
655ETP-NAC04-DRG
15kV 600 Series Deadbreak Elbow Tap Plug Connector, Window OP Kit, Test and Ground Connector Kit, Test and Ground kit includes - Insulated Cap, Test and Ground reducing tap plug, 600 series Elbow housing, cable adapter. Cable Insulation Diameter 1.180 inch to 1.465 inch. Tin Plated Aluminum ShearBolt Connector. Conductor Size 750 kcmil Stranded/Compressed/Compact to 1000 kcmil Stranded/Compressed/Compact.Frequently Asked Questions
What is the maximum cable insulation diameter supported?
The ABB 655LRTPM0380DRGS supports cable insulation diameters ranging from 1.370 inches to 1.630 inches.
What conductor sizes can this connector kit accommodate?
This kit is designed for compressed stranded conductors from 700 to 750 kcmil and compacted solid conductors up to 900 kcmil.
What is the function of the Cold-Shrink Jacket Seal?
The large Cold-Shrink Jacket Seal, sized for 1.28 to 2.3 inches, provides a secure and environmentally resistant seal for the cable jacket.
What type of lug is included in this kit?
The kit includes an aluminum compression lug for reliable conductor connections.
What is the voltage rating of this ABB connector kit?
The ABB 655LRTPM0380DRGS has a voltage rating of 15KV.
How to Install the 655LRTPM0380DRGS Insulated Cap with Ground Lead
Instructions for installing and removing the 655LRTPM0380DRGS insulated cap with ground lead on a loadbreak bushing interface.
Estimated time: 30m
Tools needed:
Hotstick, Screwdriver (for system ground connection, if applicable)
Supplies needed:
Insulated Cap with Ground Lead, Lubricant (supplied or ELASTIMOLD approved), Mounting screws (if applicable for system ground)
- Connect the electrostatic grounding wire
Connect the free end of the electrostatic grounding wire to the system ground. Ensure there is enough slack for hot-stick operation. CAUTION: Train the grounding wire so it does not contact the bushing interface during operation. WARNING: If the ground lead disconnects during operation, do not attempt to reattach without first pulling the insulated cap off the bushing with the hotstick.
- Prepare the insulated cap
Remove the protective cover from the insulated cap. Lubricate the cap's internal mating surface using only the supplied lubricant or ELASTIMOLD approved lubricants. DO NOT SUBSTITUTE. Keep the internal mating surface free from dirt and grime. Always replace the protective cover when not in use.
- Install the insulated cap
Firmly attach the hotstick to the insulated cap's pulling eye. Insert the male contact of the insulated cap into the loadbreak bushing. Push home with a fast, firm, straight motion, ensuring it is fully mated and the locking ring is seated. Detach the hotstick from the insulated cap.
- Remove the insulated cap
Attach the hotstick to the pulling eye. Before pulling, rotate the insulated cap clockwise while in the mated position to break surface friction. Pull the receptacle off with a fast, firm, straight motion. Remove the electrostatic grounding wire of the insulated cap from the system ground. Replace the protective cover on the insulated cap to keep its internal surface clean.
