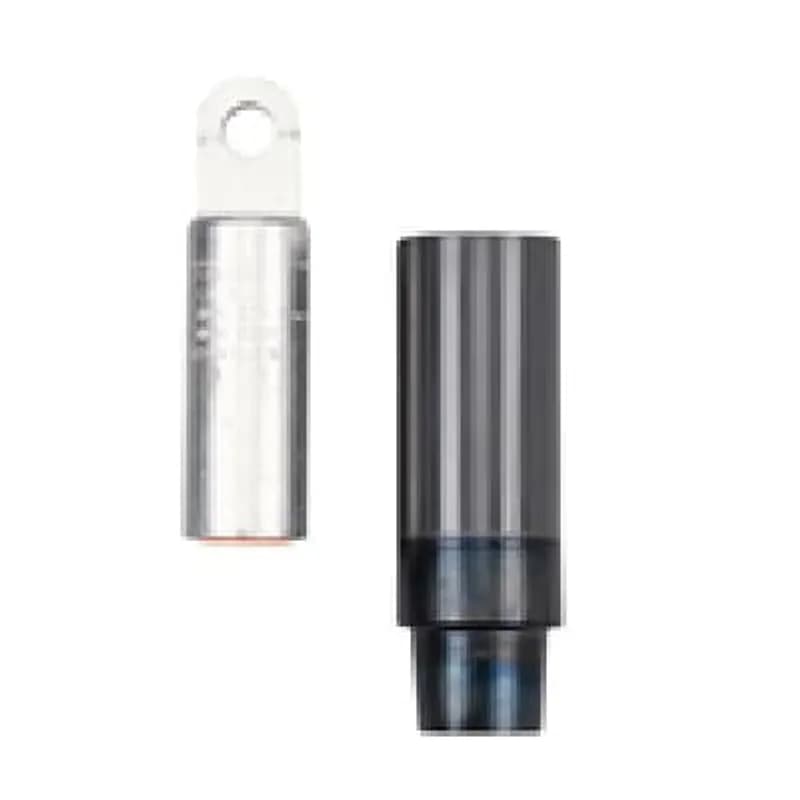

ABB - Installation Products 655CK-J0240 - 600 Amp, 15/25KV, Vault Stretcher Size Sensitive Kit, Cable Adapter and Lug. Cable Insulation Diameter 0.980 inch to 1.180 inch. Aluminum Compression Lug. Conductor Size AWG, Compressed Stranded 1/0 or Compacted Solid 2/0. 1-Hole Lug 5.94 inch long, Cable Adapter 6.38 inch long x 2.14 inch Diameter on widest end.

ABB Installation Products 655CK-J0240 600 Amp, 15/25KV, Vault Stretcher Size Sensitive Kit, Cable Adapter and Lug. Cable…

UPC: 075114388023


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB Installation Products 655CK-J0240 is a Vault Stretcher Size Sensitive Kit engineered for demanding 600 Amp, 15/25KV applications. This comprehensive kit integrates a specialized cable adapter with a robust aluminum compression lug, delivering a complete and reliable connection solution for medium-voltage cables within vault environments. The cable adapter is precisely designed to accept a range of cable insulation diameters, specifically from 0.980 inches up to 1.180 inches. Complementing the adapter is a 1-hole aluminum compression lug, meticulously crafted to be compatible with compressed stranded conductor sizes of 1/0 AWG or compacted solid conductor sizes of 2/0 AWG. The aluminum compression lug itself measures 5.94 inches in length, ensuring ample surface area for secure crimping. The accompanying cable adapter features a substantial widest end diameter of 2.14 inches and extends to a length of 6.38 inches, providing a substantial interface for cable termination. This carefully specified configuration is engineered to guarantee a secure and dependable connection, crucial for the integrity of critical infrastructure. SKU: 655CK-J0240. UNSPSC: 26121630.
  • 600 Amp, 15/25KV rating for medium-voltage applications
  • Accommodates cable insulation diameters from 0.980" to 1.180"
  • Includes aluminum compression lug for 1/0 AWG stranded or 2/0 AWG solid conductors
  • 1-hole lug (5.94" L) and cable adapter (6.38" L x 2.14" Dia) included
  • Designed for vault applications

Specifications

Application
15/25kv, 600 Amps
Connection
Compression
Material
Aluminum
Special Features
For Compressed Stranded 1/0 or Compacted Solid 2/0
Type
Cam-Op Size Sensitive Kit
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.0000 L
Package Weight (Metric)
0.4540 kg
600 Series Elbow with out Test Point, With Stud, Cable Insulation Diameter 1.090 inch to 1.310 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded 500 /Solid 600 /mmSquared 250/300.

K655BLR-K0330

600 Series Elbow with out Test Point, With Stud, Cable Insulation Diameter 1.090 inch to 1.310 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded 500 /Solid 600 /mmSquared 250/300.
6 Point Junction, with two 600 Amp Bushing Interfaces, two Blank Positions, two 600 Amp Bushing Interfaces, 35kV, 6-1/2 inch centers. No Parking Stand.

J6-66BB66-35-SV

6 Point Junction, with two 600 Amp Bushing Interfaces, two Blank Positions, two 600 Amp Bushing Interfaces, 35kV, 6-1/2 inch centers. No Parking Stand.
5 Point Junction, with two 600 Amp Bushing Interfaces, two Blank positions and one 600 Amp Bushing Interface. 25/28kV, 4 inch Standard Spacing, No Parking Stands.

J5-66BB6-25-N

5 Point Junction, with two 600 Amp Bushing Interfaces, two Blank positions and one 600 Amp Bushing Interface. 25/28kV, 4 inch Standard Spacing, No Parking Stands.
15/25kV 200 Amp, Deadbreak Bushing Insert, Bails are required, but not included, order separately.

K1501A1

15/25kV 200 Amp, Deadbreak Bushing Insert, Bails are required, but not included, order separately.
3 Point Junction, with three 200 Amp Bushing Well Interfaces, 15kV, 6-1/2 inch centers. No Parking Stand.

J3-262-15-SV-N

3 Point Junction, with three 200 Amp Bushing Well Interfaces, 15kV, 6-1/2 inch centers. No Parking Stand.
Cable Support Brackets, Double Clamp, 1.45 inch-1.95 inch (37-50 mm), Stainless Steel.

JB-3

Cable Support Brackets, Double Clamp, 1.45 inch-1.95 inch (37-50 mm), Stainless Steel.
Cable Support Brackets, Single Clamp, .80 inch-1.25 inch (20-32 mm), Stainless Steel.

JB-1

Cable Support Brackets, Single Clamp, .80 inch-1.25 inch (20-32 mm), Stainless Steel.
Cable Support Brackets, Single Clamp, 1.10 inch-1.50 inch (28-38 mm), Stainless Steel.

JB-2

Cable Support Brackets, Single Clamp, 1.10 inch-1.50 inch (28-38 mm), Stainless Steel.

Frequently Asked Questions

What is the continuous current rating?

The continuous current rating for both 15kV and 28kV voltage classes is 600 Amps.

What is the maximum operating voltage for 15kV class?

For the 15kV voltage class, the maximum phase-to-ground operating voltage is 8.3kV, and phase-to-phase is 14.4kV.

What is the maximum operating voltage for 28kV class?

For the 28kV voltage class, the maximum phase-to-ground operating voltage is 16.2kV, and phase-to-phase is 28kV.

What is the impulse withstand rating for 15kV class?

The 15kV voltage class has a 95kV BIL impulse withstand rating (1.2 x 50 microsecond wave).

What is the momentary current rating?

The momentary current rating for both 15kV and 28kV voltage classes is 25kA Symmetrical for 10 cycles.

What is the impulse withstand rating for 28kV class?

The 28kV voltage class has a 140kV BIL impulse withstand rating (1.2 x 50 microsecond wave).

What components are included in each kit?

Each kit includes one copper compression lug (03700XXX), one cable adapter (655CA-W), and one crimp chart (CC-0050).

What is the maximum operating voltage for 28kV class?

For the 28kV voltage class, the maximum phase-to-ground operating voltage is 16.2kV, and phase-to-phase is 28kV.

What is the continuous current rating?

The continuous current rating for both 15kV and 28kV voltage classes is 600 Amps.

What is the maximum operating voltage for 15kV class?

For the 15kV voltage class, the maximum phase-to-ground operating voltage is 8.3kV, and phase-to-phase is 14.4kV.
