UPC: 783786638147
Contact for Pricing
Overview

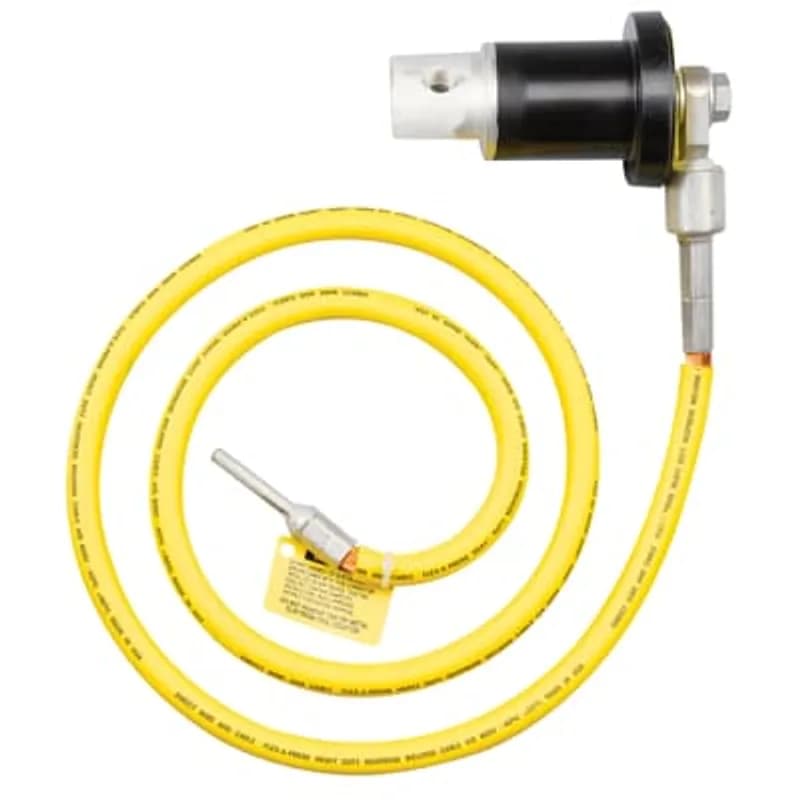

- 15/25 kV rated grounding plug
- Includes 4/0 AWG cable assembly
- Manufactured by ABB Installation Products
- Designed for reliable electrical grounding
- Suitable for industrial and utility applications
Specifications
Application | 15/25 kV |
Size | 4/0 AWG |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Ground Plug |
Voltage Rating | 15/25 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 8.8500 L |
Package Weight (Metric) | 4.0140 kg |
K650RTW
15/25kV 600 Series Deadbreak Reducing Tap Well. Length 5.37 inch. Width 3 inch not counting bracket. 600/200 Amps
K650CAM-OK
Operating Kit 25kv Cam-Op, includes accessories that enable visible break, testing isolation and grounding functions to be preformed. Kit includes - (3) Cam-Op Loadbreak Tap Plugs, (3) Grounding Elbows, (1) Assembly Tool, (1) Test Rod, (1) Carry Case, (1) Lubricant and (1) Set of Instructions.Frequently Asked Questions
What is the voltage rating of the ABB 650YGP grounding plug?
The ABB 650YGP grounding plug is rated for 15/25 kV systems.
What size is the cable assembly included with the 650YGP?
The 650YGP grounding plug comes with a 4/0 AWG cable assembly.
Who is the manufacturer of the 650YGP grounding plug?
The 650YGP grounding plug is manufactured by ABB - Installation Products.
What is the UNSPSC code for this grounding plug?
The UNSPSC code for the ABB 650YGP grounding plug is 26121630.
How to Install Elastimold Deadbreak Bushing Converters
This guide provides step-by-step instructions for the safe installation and connection of Elastimold Deadbreak Bushing Converters, including grounding, lubrication, and mating product attachment. Ensure all apparatus is de-energized before beginning.
Estimated time: 30m
Tools needed:
600-AT operating tool, Hot-stick, Wire strippers
Supplies needed:
Elastimold approved lubricant, #14 AWG copper wire, Suitable system ground connector, Insulated cap, grounding elbow, loadbreak elbow, or elbow arrester
- De-energize Apparatus
Ensure all apparatus in the work area is completely de-energized before beginning any installation or removal procedures. Failure to do so will result in serious or fatal injury. Do not touch or move energized products.
- Ground the Bushing Converter
Insert one end of a #14 AWG copper wire (or equivalent) through the grounding eye of the bushing converter, leaving sufficient length to reach the apparatus bushing. Form a small loop and twist it tightly, taking care not to damage the eye. Connect this wire to system ground using a suitable connector.
- Clean and Lubricate Bushing Converter Interfaces
Clean and lubricate the bushing converter interfaces, as noted in the product documentation, using the supplied lubricant or an ELASTIMOLD® approved lubricant. Maintain cleanliness of all mating surfaces throughout this procedure.
- Assemble Bushing Converter onto Apparatus Bushing
Insert the 600-AT operating tool into the tap plug until it is fully seated. Attach a hot-stick to the eye of the 600-AT tool. Assemble the bushing converter onto the apparatus bushing by turning the hot-stick in a clockwise direction while simultaneously pushing the bushing converter toward the apparatus bushing. Continue rotating the hot-stick clockwise until it begins to ratchet, which signifies that the proper assembly torque has been reached. Remove the 600-AT tool from the bushing converter.
- Install Mating Product
Clean and lubricate the chosen mating product (an insulated cap, grounding elbow, loadbreak elbow, or elbow arrester) with the supplied lubricant or an ELASTIMOLD® approved lubricant. Install the mating product to the bushing interface by following the specific instructions provided with that product.
