UPC: 786210063027
Contact for Pricing
Minimum Qty: 100
Multiplier: 100
*Contact for lower quantities*
Overview

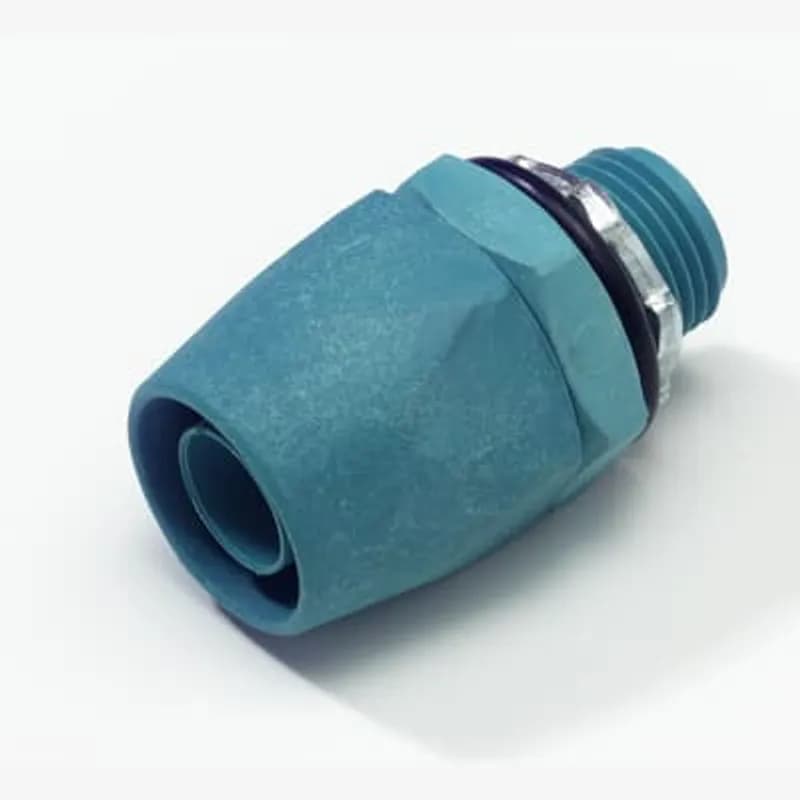

- 1/2 Inch non-metallic Type A liquidtight connector
- Features a captive sealing O-ring for watertight integrity
- Tapered hub thread ensures a secure connection
- Durable construction for industrial environments
- Manufactured by ABB Installation Products
Specifications
Application | To provide a liquidtight, dust tight connection between flexible, non-metallic conduit and a box or an enclosure |
Material | Thermoplastic |
Size | 1/2 Inch |
Standard | UL E23018 |
Type | Connectors-Straight |
Package Dimensions (L x W x H) | 6 IN x 5 IN x 4 IN |
Package Dimensions (L x W x H) | 15.24 cm x 12.7 cm x 10.16 cm |
Package Weight (Imperial) | 0.1000 L |
Package Weight (Metric) | 0.0450 kg |
6305
1-1/4 Inch Non-metallic Type A Liquidtight Connector With Captive Sealing O-ring and Tapered Hub Thread6304
1 Inch Non-metallic Type A Liquidtight Connector With Captive Sealing O-ring and Tapered Hub Thread
6322
1/2 Inch 90 Degree Non-metallic Type A Liquidtight Connector With Captive Sealing O-ring and Tapered Hub Thread6323
3/4 Inch 90 Degree Non-metallic Type A Liquidtight Connector With Captive Sealing O-ring and Tapered Hub Thread
8823-TB
3 Inch Connector, Malleable Iron with Nylon Insulator for Use with Threadless Rigid/IMC Conduit
035-73379-9
Glandnut and Ground Lug, for 3 Inch Liquidtight 45 Degree Angle, Insulated Fitting for Conduit, from 5349GR, 10 PiecesFrequently Asked Questions
Are there any specific installation requirements for the product?
The product must be installed in accordance with applicable national and local electrical codes.
What is the weight of the 6302 fitting?
The 6302 fitting weighs approximately 0.10 lbs.
What standard does the 6302 fitting conform to?
The 6302 fitting conforms to UL 514B, which is the standard for Fittings for Cable and Conduit.
What type of conduit is the 6302 fitting designed for?
The 6302 fitting is a non-metallic liquid-tight Type A fitting, designed for use with non-metallic Type A raceway.
Does the 6302 fitting include a seal and locknut?
Yes, the 6302 fitting is provided with a captive O-ring seal and a locknut.
What is the maximum voltage rating for circuits using this fitting?
The 6302 fitting is designed for use in electrical circuits up to 1,000 V.
What materials are used in the 6302 fitting?
The 6302 fitting features a thermoplastic, glass reinforced body and gland, a Neoprene O-ring, and zinc-plated case-hardened steel locknuts.
What is the trade size of product 6302?
Product 6302 has a trade size of 1/2 inch and an NPT thread size of 1/2 inch.
What materials are used in the 6302 fitting?
The 6302 fitting features a thermoplastic, glass reinforced body and gland, a Neoprene O-ring, and zinc-plated case-hardened steel locknuts.
What is the weight of the 6302 fitting?
The 6302 fitting weighs approximately 0.10 lbs.
How to Install the 6302 Non-Metallic Liquid-Tight Connector
This guide provides step-by-step instructions for installing the 6302 non-metallic liquid-tight connector onto flexible conduit, covering both turning and flexing methods for a secure, liquid-tight connection.
Estimated time: 15m
Tools needed:
Wrench
Supplies needed:
Flexible non-metallic conduit, Electrical box (if pre-mounting)
- Prepare for Installation and Ensure Safety
WARNING: Risk of shock, disconnect power before installation. CAUTION: Product should be installed by a qualified electrician in accordance with national and local electrical codes. Ensure the flexible conduit has a square-cut end for an effective connection.
- Prepare the Conduit with Gland Nut
Slip the gland nut onto the flexible conduit. Ensure the wide end of the gland nut faces towards the connector body. This step is common for both installation methods.
- Attach Connector to Conduit (Method 1: By Turning)
Insert the connector's 'Left Handed Conduit Gripping Thread' into the conduit. Turn the connector counter-clockwise until the conduit touches the straight threaded shoulder of the connector. DO NOT OVER-TIGHTEN.
- Attach Connector to Conduit (Method 2: By Flexing, if Body Pre-Mounted)
If the connector body is pre-mounted to an electrical box, place the conduit over the 'Left Handed Conduit Gripping Thread'. Push the conduit onto the connector using a flexible up-and-down and side-to-side motion until the conduit touches the straight threaded shoulder of the connector. DO NOT OVER-TIGHTEN.
- Secure the Gland Nut
Thread the gland nut onto the fitting body. Tighten it clockwise with a wrench until the base of the gland nut is snug against the hex of the connector body. DO NOT OVER-TIGHTEN to avoid damage.
