UPC: 786210063232
Contact for Pricing
Minimum Qty: 10
Multiplier: 10
*Contact for lower quantities*

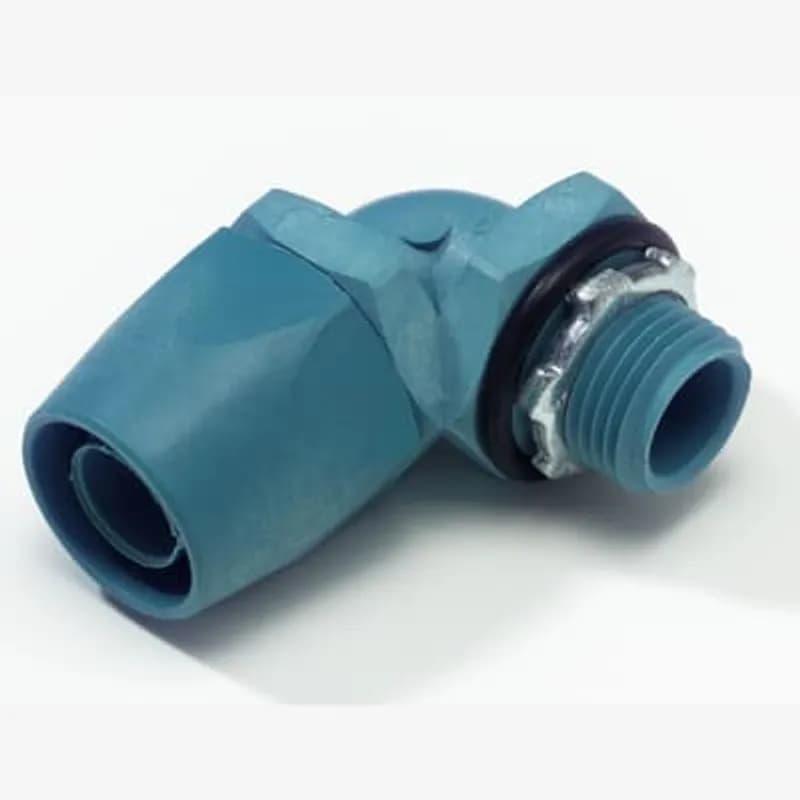

Overview
- 3/4 Inch Trade Size
- 90 Degree Configuration
- Non-metallic Type A Liquidtight Connector
- Captive Sealing O-ring for watertight seal
- Tapered Hub Thread for secure connection
Specifications
Application | To provide a liquidtight, dust tight connection between flexible, non-metallic conduit and a box or an enclosure |
Material | Thermoplastic |
Size | 3/4 Inch |
Standard | UL E23018 |
Type | Connectors-90 Degree |
Package Dimensions (L x W x H) | 8.3 IN x 4.1 IN x 5.4 IN |
Package Dimensions (L x W x H) | 21.082 cm x 10.414 cm x 13.716 cm |
Package Weight (Imperial) | 0.2300 L |
Package Weight (Metric) | 0.1040 kg |
8823-TB
3 Inch Connector, Malleable Iron with Nylon Insulator for Use with Threadless Rigid/IMC Conduit
035-73379-9
Glandnut and Ground Lug, for 3 Inch Liquidtight 45 Degree Angle, Insulated Fitting for Conduit, from 5349GR, 10 Pieces
035-72775-5
Insulated Watertight Strain Relief Connector, Straight, Cable Size 0.500 to 0.625 Inch, Steel, Zinc Plated
Frequently Asked Questions
Are there any special installation requirements for this product?
The product must be installed in accordance with applicable national and local electrical codes.
What certifications does the 6323 fitting conform to?
The 6323 fitting conforms to UL 514B, Fittings for Cable and Conduit, with File E23018.
What is the weight of the 6323 fitting?
The 6323 fitting weighs 0.23 lbs or 0.11 kg.
What are the dimensions of the 6323 fitting?
The 6323 fitting has dimensions of A=1 3/4 in, B=1 3/4 in, and C=5/8 in.
What is the maximum voltage rating for this fitting?
The fitting is suitable for use in electrical circuits up to 1,000 V.
What materials are used in the 6323 fitting?
The body and gland are thermoplastic, glass reinforced. It includes a neoprene O-ring and zinc-plated, case-hardened steel locknuts.
What is the trade size of product 6323?
Product 6323 has a trade size of 3/4 in.
What is the maximum voltage rating for this fitting?
The fitting is suitable for use in electrical circuits up to 1,000 V.
What are the dimensions of the 6323 fitting?
The 6323 fitting has dimensions of A=1 3/4 in, B=1 3/4 in, and C=5/8 in.
Are there any special installation requirements for this product?
The product must be installed in accordance with applicable national and local electrical codes.
How to Install a 6323 Non-Metallic Liquid-Tight 90° Elbow Connector
This guide provides instructions for installing the 6323 3/4" 90° elbow non-metallic liquid-tight connector onto flexible conduit. Installation should be performed by a qualified electrician in accordance with national and local electrical codes.
Estimated time: 15m
Tools needed:
Wrench
Supplies needed:
6323 Non-metallic liquid-tight connector, Flexible conduit
- Disconnect Power and Review Safety
WARNING: Risk of shock. Before beginning installation, disconnect all power to the circuit where the connector will be installed. Read and understand all instructions and safety information. CAUTION: This product should be installed by a qualified electrician in accordance with national and local electrical codes.
- Prepare Flexible Conduit
Ensure the end of the flexible conduit is cut square. A square-cut end is necessary for an effective and liquid-tight connection.
- Position Gland Nut on Conduit
Slip the gland nut onto the flexible conduit. Ensure the wide end of the gland nut is facing towards the connector body, which will be attached next.
- Connect Body to Conduit
Place the 'Left Handed Conduit Gripping Thread' of the 6323 connector body into the conduit. Tighten the connector body by turning it counter-clockwise until the conduit firmly touches the straight threaded shoulder of the connector. DO NOT OVER-TIGHTEN to avoid damage.
- Secure Gland Nut to Body
Thread the gland nut onto the fitting body. Using a wrench, tighten the gland nut clockwise until its base is snug against the hex of the connector body. DO NOT OVER-TIGHTEN to ensure a proper seal without damaging components.
