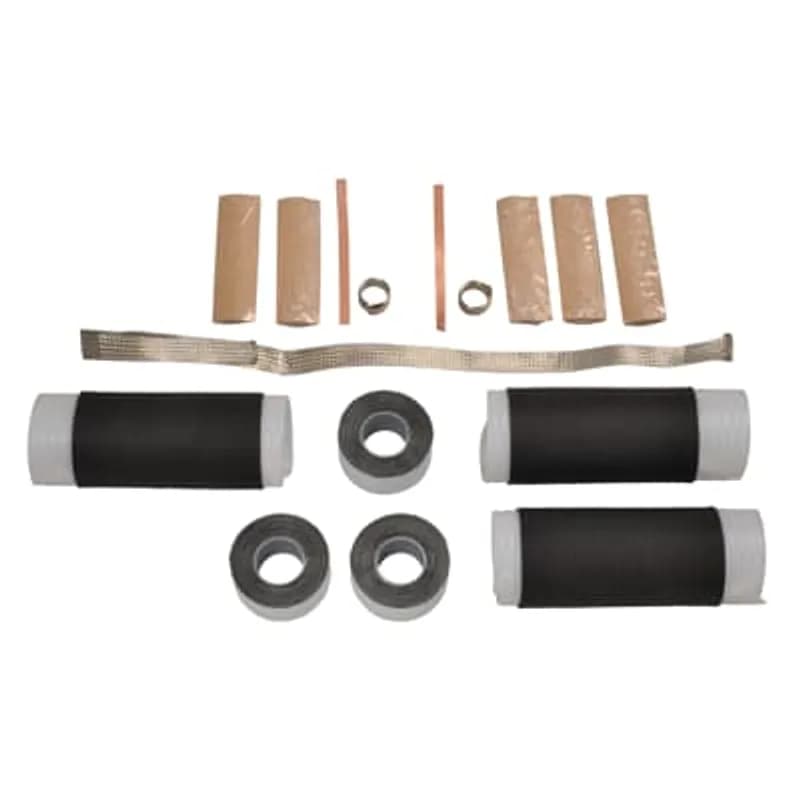

ABB - Installation Products 600ECS-30PCJ - 15-35 kv Sealing Kit 200-600 Amp Connector, includes 600ECS Assembly, Butyl Auto Tape, Instruction Sheet

ABB Installation Products 600ECS-30PCJ 15-35 kv Sealing Kit 200-600 Amp Connector, includes 600ECS Assembly, Butyl Auto Tape…

UPC: 075114169837


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB 600ECS-30PCJ sealing kit is a medium-voltage cable joint sealing solution designed for 15-35 kV applications with 200-600 ampere connectors. This kit provides a permanent, fully shielded, and fully submersible seal for power cable joints, ensuring reliable performance in critical infrastructure environments. The 600ECS-30PCJ is specifically engineered for use with Elastimold’s PCJ (Power Cable Joints) for concentric neutral cables, supporting aluminum-to-aluminum or aluminum-to-copper conductor transitions. The kit includes a cold shrinkable jacket seal with an outside diameter range of 1.28 inches (32.51 mm) to 2.30 inches (58.42 mm), ensuring compatibility with a wide range of cable sizes. The sealing system features butyl auto tape mastic strips for superior dielectric strength and adhesion, creating a watertight, corrosion-resistant barrier against moisture, dust, and environmental contaminants. The 600ECS-30PCJ operates reliably across a temperature range of -40°C to 65°C (-40°F to 149°F), making it suitable for both indoor and outdoor installations. The kit is rated for continuous and loadbreak currents up to 200 amperes, with a momentary fault close rating of 10 kA symmetrical for 10 cycles. The 600ECS-30PCJ is ideal for substations, switchgear, power distribution systems, and utility environments where long-term durability and voltage integrity are essential. Installation is tool-free and straightforward, with an included instruction sheet providing clear, step-by-step guidance to minimize errors and ensure consistent results.
  • Cold shrinkable jacket seal with 1.28"–2.30" O.D. range for medium-voltage cables
  • Butyl auto tape mastic strips for watertight, corrosion-resistant sealing
  • Operating temperature range: -40°C to 65°C (-40°F to 149°F)
  • Rated for 200A continuous/loadbreak current and 10kA momentary fault close
  • Meets ANSI/IEEE Standard 386 for medium-voltage cable joints

Specifications

Amperage Rating
200 to 600 A
Current Rating
200-600 A
Material
BUTYL
Series
600ECS
Type
Sealing Kit
Voltage Rating
15 to 35 kV
Voltage Rating
15-35 kV
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.0000 L
Package Weight (Metric)
0.4540 kg
Sta-Kon Terminal and Splice Organizer Kit contains 6 see-through nylon canisters containing (20) 10RC-10, 10RC-10F, (25) 14RB-10, 2RB14X, 14RB-10F, (15) 2RC-10X

STA-ORG

Sta-Kon Terminal and Splice Organizer Kit contains 6 see-through nylon canisters containing (20) 10RC-10, 10RC-10F, (25) 14RB-10, 2RB14X, 14RB-10F, (15) 2RC-10X
A-Series™ Panelboards. Pro-Stock, Unassembled Lighting Panels. Main Lug Kits. Standard. Lug Type: Pressure. All lugs are suitable for interiors with either copper or aluminum bus.

MLA1

A-Series™ Panelboards. Pro-Stock, Unassembled Lighting Panels. Main Lug Kits. Standard. Lug Type: Pressure. All lugs are suitable for interiors with either copper or aluminum bus.
Compressor Terminal Kit (3 Color Coded Wires, 3 12-10 Shrink Butt Connectors)

NSI33-12

Compressor Terminal Kit (3 Color Coded Wires, 3 12-10 Shrink Butt Connectors)
Aluminum Compression Terminal Lug Kit, with Sleeve - Wire Range 300kcmil - 350kcmil, Die Color Brown, Dies B80EA, 1.1, 655. For Aluminum and Copper Conductors

LAC35WL2P

Aluminum Compression Terminal Lug Kit, with Sleeve - Wire Range 300kcmil - 350kcmil, Die Color Brown, Dies B80EA, 1.1, 655. For Aluminum and Copper Conductors
Power Cable Seal Kit, Cold-Shrinkable Seal with Copper Braid & Constant Force Spring. Size Range .80 inch to 1.50 inch jacket diameters. Maximum installed diameter is approximately 2 inches. 24 inch Braid

200ECSG3-24

Power Cable Seal Kit, Cold-Shrinkable Seal with Copper Braid & Constant Force Spring. Size Range .80 inch to 1.50 inch jacket diameters. Maximum installed diameter is approximately 2 inches. 24 inch Braid
600 ECS Cold Shrinkable Seal with Copper Braid and Constant Spring Force - Shield Adapter Kit, 24 Inch Long, includes (1) Cold Shrink Tube, Conductive Copper Tape, Flat Copper Braid, Spring Coil, Mastic, Instruction Sheet.

600ECSG3-24

600 ECS Cold Shrinkable Seal with Copper Braid and Constant Spring Force - Shield Adapter Kit, 24 Inch Long, includes (1) Cold Shrink Tube, Conductive Copper Tape, Flat Copper Braid, Spring Coil, Mastic, Instruction Sheet.
Jacket Seal, Includes 600ECS Assembly, Jacketing Tape, Braided Ground Strap (Welded), Copper Foil Tape-Cut, Coil Spring, Butyl Auto Tape, Instruction Sheet.

600ECSG3-30PCJ

Jacket Seal, Includes 600ECS Assembly, Jacketing Tape, Braided Ground Strap (Welded), Copper Foil Tape-Cut, Coil Spring, Butyl Auto Tape, Instruction Sheet.
Jacket Seal, Includes 200ECS Assembly, Jacketing Tape, Braided Ground Strap (Welded), Copper Foil Tape-Cut, Coil Spring, Butyl Auto Tape, Instruction Sheet.

200ECSG3-30PCJ

Jacket Seal, Includes 200ECS Assembly, Jacketing Tape, Braided Ground Strap (Welded), Copper Foil Tape-Cut, Coil Spring, Butyl Auto Tape, Instruction Sheet.
