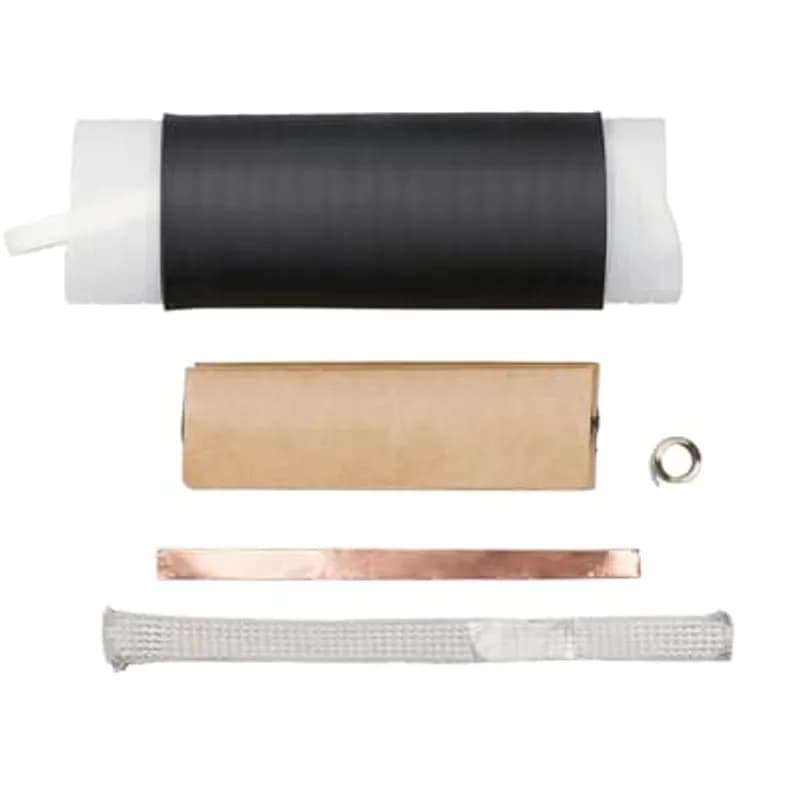

ABB - Installation Products 200ECSG3-24 - Power Cable Seal Kit, Cold-Shrinkable Seal with Copper Braid & Constant Force Spring. Size Range .80 inch to 1.50 inch jacket diameters. Maximum installed diameter is approximately 2 inches. 24 inch Braid

ABB Installation Products 200ECSG3-24 Power Cable Seal Kit, Cold-Shrinkable Seal with Copper Braid & Constant Force Spring.…

UPC: 783786079797


Documents & Media
Manufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB 200ECSG3-24 is a cold-shrinkable power cable seal kit designed for reliable termination and sealing of power cables. This kit features a robust copper braid for effective grounding and a constant force spring to maintain consistent radial pressure, ensuring a secure and long-lasting seal. Engineered for cables with jacket diameters ranging from 0.80 inches to 1.50 inches, the maximum installed diameter capability is approximately 2 inches. The included copper braid measures 24 inches in length, providing ample coverage for grounding connections. This seal kit is suitable for applications requiring a dependable environmental seal and electrical connection. The cold-shrink technology simplifies installation, eliminating the need for heat or special tools. The constant force spring mechanism adapts to cable diameter variations within its specified range, offering flexibility during installation and over the cable's lifespan. ABB Installation Products is a recognized manufacturer in the electrical infrastructure sector, and the SKU 200ECSG3-24 represents a specific solution for cable sealing needs. This product is categorized under UNSPSC code 39121446, indicating its function within electrical wiring and connection systems.
  • Cold-shrinkable seal for easy installation
  • Includes copper braid for grounding
  • Constant force spring for consistent pressure
  • Suitable for jacket diameters from 0.80" to 1.50"
  • Maximum installed diameter approximately 2 inches

Specifications

Material
Copper Braid, Constant Force Spring
Series
200ECSG3
Type
Sealing Kit
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.0000 L
Package Weight (Metric)
0.4540 kg
