UPC: 786210545042
Contact for Pricing
Minimum Qty: 50
Multiplier: 50
*Contact for lower quantities*
Overview
- Tin-plated copper construction for corrosion resistance and optimal conductivity
- Rated for up to 35kV with 90°C temperature rating when crimped properly
- Accommodates 8 AWG stranded copper conductors with internal wire stops
- UL Listed and CSA Certified for high-voltage applications
- Color-coded red barrel with die code 21 for easy identification and tool compatibility
Specifications
Application | Applications certified to 600 V and recommended up to 35 kVÂ¥ |
Application | Applications certified to 600 V and recommended up to 35 kV¥ |
Color | Red |
Finish | Tin-Plated |
Material | Copper |
Special Features | Two-way connectors provide high pullout values, are easy to insulate and provide a low-resistance connection of high quality and low installed cost |
Standard | UL E9809 |
Standard | UL E9809 / UL E9809 |
Type | Splice |
Voltage Rating | 600 V |
Package Dimensions (L x W x H) | 3.3 IN x 2.8 IN x 2.3 IN |
Package Dimensions (L x W x H) | 8.382 cm x 7.112 cm x 5.842 cm |
Package Weight (Imperial) | 0.020 L |
Package Weight (Metric) | 0.009 kg |
2RAA
Nylon Insulated Aircraft Splice, Length 1.52 Inches, Width .25 Inches, Wire Range #22-#18 AWG, Color Red, Copper, Tin Plated
L810
1 Hole Long Barrel Copper Compression Lug 8 AWG - 10 Bolt Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. They are tin-plated to provide corrosion low contact resistance. Marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed and to cable manufacturer instructions. Temperature rating 90 degrees C. .
60930
Aluminum Reducing Splice Connector for Copper Wire Size 2, Aluminum Wire Size 1/0, Tin Plated, Die Code 50, Die Color Code Tan
54508

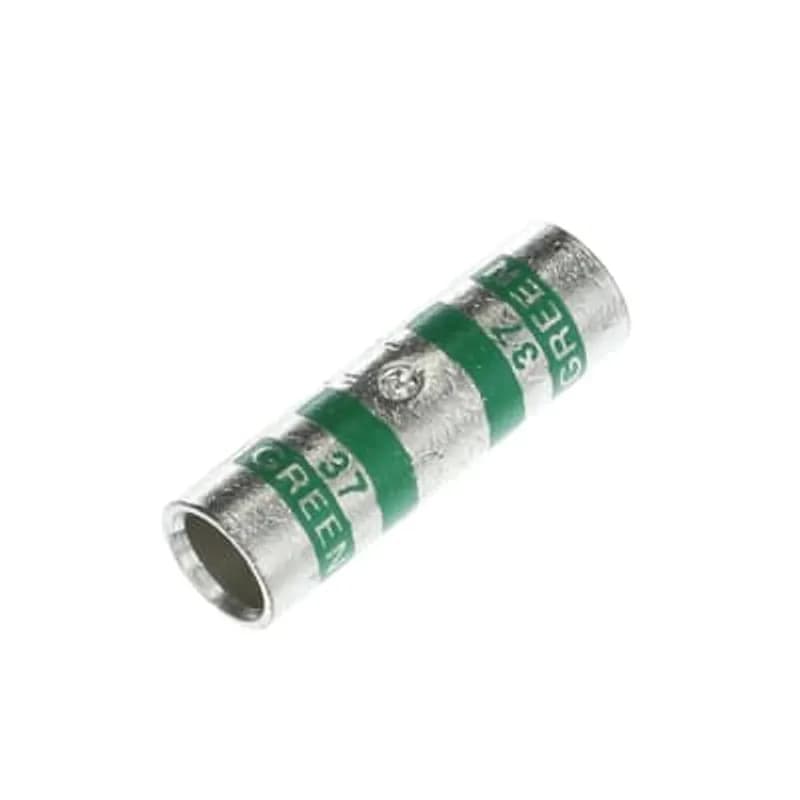

Copper Two-Way Splice Connector, Standard Barrel, Max 35kV, Wire Size 1 AWG, Tin Plated, Die Code 37, Die Color Code Green54511
Copper Two-Way Splice Connector, Standard Barrel, Max 35kV, Wire Size 3/0 AWG, Tin Plated, Die Code 50, Die Color Code Orange
54513
Copper Two-Way Splice Connector, Standard Barrel, Max 35kV, Wire Size 250 kcmil, Tin Plated, Die Code 62, Die Color Code YellowFrequently Asked Questions
What is the cable size range for product 54504?
The product supports wire sizes from 8 AWG to 1250 kcmil.
What is the maximum cable size for installation?
The maximum cable size for installation is 1250 kcmil.
What materials are used in product 54504?
It is made of high conductivity wrought aluminum and electro tin plated.
What certifications does product 54504 have?
It conforms to UL 486 A, UL 486 B, and CSA C22.2 No. 65-18.
What is the installation requirement for product 54504?
The product must be installed in accordance with applicable national and local electrical codes.
What installation tools are compatible with 54504?
Compatible tools include hydraulic tools like TBM6H and battery-operated tools like BPLT6BSCR.
What are the safety standards for product 54504?
The product complies with RoHS3 and the European Directive 2011/65.
What is the design feature of product 54504?
It features a chamfered barrel design to eliminate wire hang-ups.
What is the crimp area maximization feature?
The chamfered barrel design maximizes the crimp area for better performance.
What is the color-coded identification system?
The product features a Color-Keyed® identification system for easy identification.
How to Install the Two Way Splicer Connector
This guide provides step-by-step instructions for installing the Two Way Splicer Connector for copper cables.
Estimated time: 30m
Tools needed:
Wire strippers, Crimping tool, Wire brush
Supplies needed:
Two Way Splicer Connectors, Heat shrink tubing, Cable ties
- Strip the cable insulation
Use wire strippers to remove insulation from the cable ends to the specified length of 7/16 inches. Avoid nicking the cable strands.
- Clean the cable ends
Ensure the cable ends are clean. Use a wire brush or emery cloth to remove any oxidation or debris.
- Insert and crimp the connector
Insert the stripped cable ends into the Two Way Splicer Connector until they stop. Use a crimping tool to compress the connector between the markings, starting near the center.
- Remove sharp edges
After crimping, carefully remove any sharp edges, flash, or burrs from the connector to ensure safety.
- Apply insulation
Use heat shrink tubing to cover the connector and ensure a secure and insulated connection.
