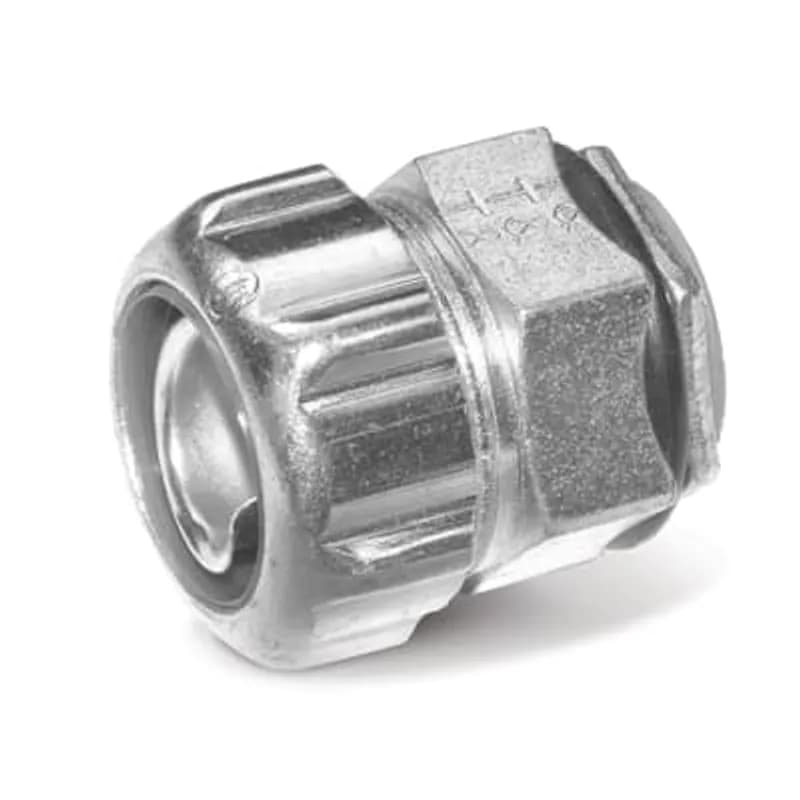

ABB - Installation Products 5362-TB - 1/2 Inch Straight Steel Chase Liquidtight Insulated Connector With Electro-Zinc Plating

ABB Installation Products 5362-TB 1/2 Inch Straight Steel Chase Liquidtight Insulated Connector With Electro-Zinc Plating

UPC: 786210357850


Documents & Media
Installation InstructionsSpecification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 25

Multiplier: 25

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB 5362-TB 1/2 inch straight steel chase liquidtight insulated connector provides a secure termination for liquidtight flexible metal conduit (LFMC) in industrial and commercial electrical installations. Constructed from electro-zinc plated steel, this connector ensures reliable grounding and mechanical strength while resisting rust and oxidation in damp or corrosive environments. The integrated insulated throat prevents conduit damage and maintains consistent electrical continuity. Designed for 1/2 inch trade size LFMC, the 5362-TB features a straight entry configuration for straightforward routing and installation in tight spaces. The electro-zinc plating enhances durability against moisture and chemical exposure, making it suitable for use in manufacturing plants, data centers, food processing facilities, and outdoor enclosures. Part of ABB’s Installation Products line, the 5362-TB is engineered for durability in challenging environments where corrosion resistance and secure conduit termination are critical. The connector’s design includes Safe-Edge™ steel grounding cones to eliminate sharp edges and blue nylon insulated throats for added protection.
  • 1/2 inch trade size for LFMC applications
  • Electro-zinc plated steel construction for corrosion resistance
  • Integrated insulated throat prevents conduit damage
  • Safe-Edge™ steel grounding cones eliminate sharp edges
  • Compatible with standard chase nipples and conduit systems

Specifications

Finish
Electro Zinc Plating
Material
Steel
Material
Electro-Zinc Plated Steel
Series
5362
Size
1/2 Inch
Standard
UL E23018, CSA
Type
Chase Connectors-Straight
Package Dimensions (L x W x H)
4 IN x 6 IN x 4.62 IN
Package Dimensions (L x W x H)
10.16 cm x 15.24 cm x 11.7348 cm
Package Weight (Imperial)
0.2100 L
Package Weight (Metric)
0.0950 kg
Connector, Liquid Tight, 45 Degree, US Steel, Size 3-1/2 Inch, Insulated Throat

458-SLTIUS

Connector, Liquid Tight, 45 Degree, US Steel, Size 3-1/2 Inch, Insulated Throat
Liquidtight Conduit Fitting, Straight, Trade Size 2 Inch, Steel

LT200-SC

Liquidtight Conduit Fitting, Straight, Trade Size 2 Inch, Steel
1/2 Inch 90 Degree Malleable Iron Insulated Liquidtight Connector

5352-TB

1/2 Inch 90 Degree Malleable Iron Insulated Liquidtight Connector
1-1/4 Inch, 90 Degree Connector, Liquidtight, Insulated, British Conduit Electric Threads, for Use In Wet Locations, Use Listed Sealing Ring Between Box and Fitting, 5 Pieces

6355-TB

1-1/4 Inch, 90 Degree Connector, Liquidtight, Insulated, British Conduit Electric Threads, for Use In Wet Locations, Use Listed Sealing Ring Between Box and Fitting, 5 Pieces
1-1/4 Inch PG Thread Insulated Liquidtight Connector to 90 Degree, Steel-galvanized Chromate Finish, Metric PG Thread Size 36 for Use With Flexible Metal Conduit

7356-TB

1-1/4 Inch PG Thread Insulated Liquidtight Connector to 90 Degree, Steel-galvanized Chromate Finish, Metric PG Thread Size 36 for Use With Flexible Metal Conduit
1-1/4 Inch 90 Degree Non-metallic Type A Liquidtight Connector With Captive Sealing O-ring and Tapered Hub Thread

6325-TB

1-1/4 Inch 90 Degree Non-metallic Type A Liquidtight Connector With Captive Sealing O-ring and Tapered Hub Thread
1-1/2 Inch 90 Degree Steel Liquidtight Bullet With Nylon Insert

LT9150M

1-1/2 Inch 90 Degree Steel Liquidtight Bullet With Nylon Insert
1 Inch 45 Degree Steel Liquidtight Bullet With Nylon Insert

LT4100M

1 Inch 45 Degree Steel Liquidtight Bullet With Nylon Insert

Frequently Asked Questions

What is the maximum voltage rating for this fitting?

The fitting is suitable for use in electrical circuits up to 1,000 V.

What thread type does this fitting use?

The fitting bodies have NPT threads.

Does the 1/2 inch fitting meet CSA Heavy Duty requirements?

Yes, trade sizes 1/2 inch to 4 inches meet CSA Heavy Duty requirements when used with T&B HD Certified LFMC.

What seal gasket is required for the 1/2 inch fitting?

The 1/2 inch fitting requires a Series 5260 Seal Gasket, specifically part number 5262.

What standards does this product conform to?

It conforms to UL 514B, CSA C22.2 No. 18.3, IEC/EN 61386-1, -23, RoHS, NEMA FB-1, JIC EGP1, JIC EMP1, Federal Specification A-A 50552, and Federal Specification H-28.

What are the dimensions of the 1/2 inch 90 degree fitting?

The approximate dimensions are A: 1 3/8 inches, B: 1 9/16 inches, and C: 9/16 inches. The weight is 0.29 lbs.

What hazardous locations is this fitting suitable for?

It is suitable for Class I Division 2, Class II Division 1 & 2 Hazardous Locations per NEC® Section 500. It also suits Zone 2, Zone 20, Zone 21, Zone 22, Class I Division 2, Class II Division 1 & 2, and Class III Hazardous locations per CE Code.

What are the ingress protection ratings for this product?

The product has UL Indoor Type 4, 6, 12, 13; Outdoor Type 3, 3R, 4, 6 ratings. It also has CSA Type 3, 3R, 4, 12, 13; NEMA Type 3, 3R, 4, 6, 12, 13; and IEC IP66, IP67, IP68, IP69 ratings.

What materials are used in the construction of the 1/2 inch fitting?

The 1/2 inch fitting is made of Steel with a Zinc Chromate finish. It includes Zinc plated Steel ground cones, thermoplastic nylon seal rings, and heat curled insulators.

What is the operating temperature range for the fitting?

The general working temperature range is -20 to +105°C (-4 to +221°F) for UL/CSA, and -25 to +105°C (-13 to +221°F) for IEC/CE.

How to Install T&B Liquidtight Connectors

This guide outlines the proper method for installing T&B liquidtight connectors with flexible metallic conduit, ensuring high performance and reliability in accordance with electrical codes.

Tools needed:

Hacksaw, Power band saw, Metal jig, Smooth jaw wrench

Supplies needed:

Liquidtight flexible metallic conduit, T&B 140 series locknuts (optional), 5260 series sealing gaskets (optional), PVC cement (optional)

  1. Disconnect Power and Wear Safety Gear

    WARNING: Disconnect all power before beginning installation to prevent risk of shock. Wear hand protection and eye protection throughout the installation process. Ensure the product is installed by a qualified electrician in accordance with national and local electrical codes.

  2. Prepare the Flexible Conduit

    Cut the flexible conduit with a clean, square end cut. For best results, use a metal jig (available from conduit manufacturers) and a 32 Tooth/Inch no. set, sharp hacksaw. For high production, use a 24-32 Tooth/Inch wavy set power band saw, not exceeding 400 feet per minute. Do not use an abrasive wheel.

  3. Assemble the Connector Components

    For 5000, 7000, 9000 series, and PVC coated 3300 series connectors, first slide on the gland nut, then slide on the nylon sealing ring, and finally thread in the Safe Edge™ Cone. For PVC coated connectors, if gouging occurs exposing metal during tightening, PVC cement is recommended.

  4. Install Connector into Knockout Box

    Insert the connector body through the knockout hole in the box wall. For knockout applications, use T&B® 140 series locknuts and 5260 series sealing gaskets (purchase separately) to secure the connector to the box. Ensure the 'O' ring is correctly positioned on the outside of the box for 5365 to 5370 series, or note that 5361 to 5364 series have a captive 'O' ring.

  5. Tighten the Gland Nut and Locknut

    Tighten the gland nut onto the flexible metallic conduit to the specified torque. Refer to the torque table provided in the documentation: 3/8" (200 lb.-in.), 1/2" (300 lb.-in.), 3/4" (500 lb.-in.), 1" (700 lb.-in.), 1 1/4" (1000 lb.-in.), 1 1/2" (1200 lb.-in.), 2" (1600 lb.-in.), 2 1/2" (1600 lb.-in.), 3" (1600 lb.-in.), 3 1/2" (1600 lb.-in.), 4" (1600 lb.-in.). For PVC coated connectors, tighten with a smooth jaw wrench. Ensure the locknut is also securely tightened to the box wall.
