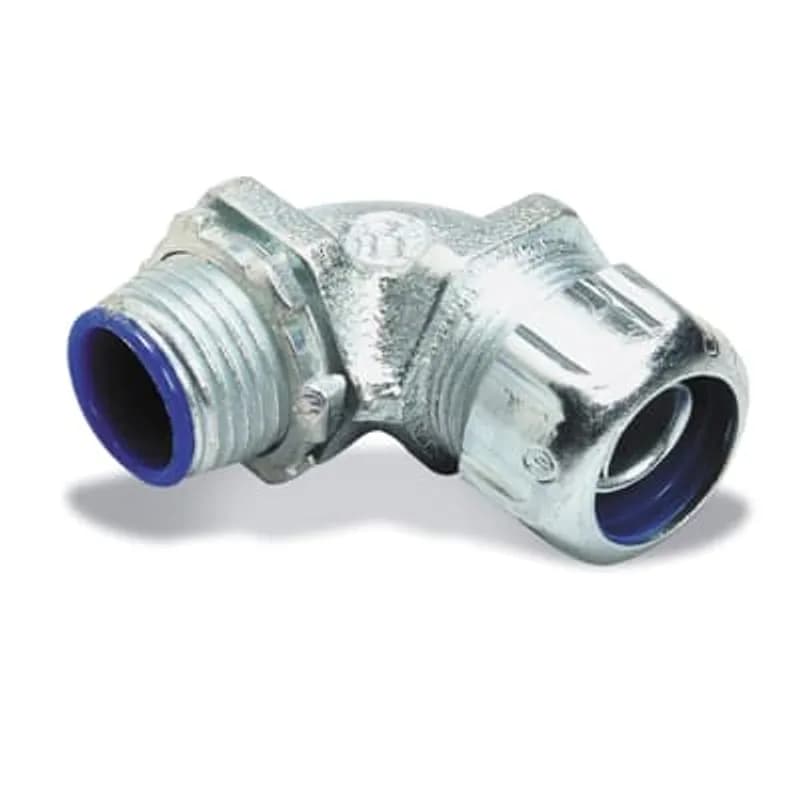

ABB Installation Products 5352-TB 1/2 Inch 90 Degree Malleable Iron Insulated Liquidtight Connector
UPC: 786210357836
Contact for Pricing
Minimum Qty: 50
Multiplier: 50
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 90-degree angle for efficient conduit routing in tight spaces
- Malleable iron construction with nylon-insulated throat for durability and electrical safety
- NPT hub threads (1/2–14) ensure secure female-thread sealing
- Supplied with sealing ring and steel locknut for complete installation kit
Specifications
Application | Used Where Flexible Metal Raceway is Installed in Outdoor or Indoor Locations Where Exposed to Continuous or Intermittent Moisture |
Finish | Electro Zinc Plated/Chromate Coating |
IP Rating | IP66 |
Material | Malleable Iron |
Mounting Type | Threaded |
Series | 5352 |
Size | 1/2 Inch |
Standard | UL E23018, CSA |
Type | Connectors-90 Degree |
Package Dimensions (L x W x H) | 4 IN x 8 IN x 5 IN |
Package Dimensions (L x W x H) | 10.16 cm x 20.32 cm x 12.7 cm |
Package Weight (Imperial) | 0.2900 L |
Package Weight (Metric) | 0.1320 kg |
6355-TB
1-1/4 Inch, 90 Degree Connector, Liquidtight, Insulated, British Conduit Electric Threads, for Use In Wet Locations, Use Listed Sealing Ring Between Box and Fitting, 5 Pieces
7356-TB
1-1/4 Inch PG Thread Insulated Liquidtight Connector to 90 Degree, Steel-galvanized Chromate Finish, Metric PG Thread Size 36 for Use With Flexible Metal Conduit6325-TB
1-1/4 Inch 90 Degree Non-metallic Type A Liquidtight Connector With Captive Sealing O-ring and Tapered Hub Thread
Frequently Asked Questions
What are the dimensions of the 5352-TB 90° fitting?
The approximate dimensions for the 1/2 inch 90° fitting are A: 1 3/8 in, B: 1 9/16 in, and C: 9/16 in.
What is the material of the 5352-TB fitting?
The 5352-TB fitting, being a 1/2 inch trade size, is made of steel with a Zinc Chromate finish.
What is the weight of the 5352-TB 90° fitting?
The 5352-TB 1/2 inch 90° liquid-tight fitting weighs approximately 0.29 lbs (0.13 kg).
Are these fittings halogen free?
Yes, the product is halogen free. Specifically, the seal rings, insulators, and seal gaskets are halogen free.
What standards do these liquid-tight fittings conform to?
They conform to UL 514B, CSA C22.2 No. 18.3, IEC/EN 61386-1, -23, RoHS, NEMA FB-1, JIC EGP1, JIC EMP1, Federal Specification A-A 50552, and Federal Specification H-28.
What are the available trade sizes for these fittings?
The fittings are available in trade sizes from 3/8 in to 6 in (12mm to 153mm).
Can these fittings be used in hazardous locations?
Yes, they are suitable for Class I Division 2, Class II Division 1 & 2 Hazardous Locations per NEC® Section 500. They also meet Zone 2, Zone 20, Zone 21, Zone 22, and Class III Hazardous locations per CE Code.
What ingress protection ratings do these fittings have?
These fittings have UL Type 4, 6, 12, 13 (indoor) and Type 3, 3R, 4, 6 (outdoor) ratings. They also meet CSA Type 3, 3R, 4, 12, 13 and NEMA Type 3, 3R, 4, 6, 12, 13. IEC ratings are IP66, IP67, IP68, IP69.
What materials are used in the construction of these fittings?
Fittings from 3/8 in to 1 1/4 in are steel with a Zinc Chromate finish, while 1 1/2 in to 6 in are malleable iron with Zinc Chromate. Seal rings and insulators are thermoplastic nylon.
What are the general working temperature limits?
The general working temperature range is -20 to +105°C (-4 to +221°F) for UL and CSA, and -25 to +105°C (-13 to +221°F) for IEC/CE.
How to Install T&B Liquidtight Connectors
This guide provides the proper method for installing T&B liquidtight connectors with flexible metallic conduit, ensuring high performance and reliability. Always disconnect power before installation and wear appropriate hand and eye protection. Installation should be performed by a qualified electrician in accordance with national and local electrical codes.
Estimated time: 15m
Tools needed:
Hacksaw (32 Tooth/ln. no. set, sharp), Power band saw (24-32 Tooth/ln. wavy set), Smooth jaw wrench, Torque wrench, Metal jig (optional)
Supplies needed:
T&B Liquidtight Connector, Liquidtight flexible metallic conduit, T&B 140 series locknuts (if not included), T&B 5260 series sealing gaskets (if not included), PVC cement (if needed for PVC coated connectors)
- Prepare the Flexible Conduit
Cut the flexible conduit with a clean, square end. For best results, use a metal jig, a 32 Tooth/ln. sharp hacksaw, or a power band saw with a 24-32 Tooth/ln. wavy set at no more than 400 feet per minute. Do not use an abrasive wheel for cutting.
- Assemble the Liquidtight Connector Components
For 5000, 7000, 9000 series, and PVC coated 3300 series connectors, first slide the gland nut onto the conduit. Next, slide on the nylon sealing ring. Finally, thread in the Safe Edge™ Cone. If installing a PVC coated connector, tighten with a smooth jaw wrench; if gouging occurs exposing metal, apply PVC cement.
- Install the Connector into the Knockout Box
Insert the body of the liquidtight connector through the knockout from the outside of the box. For knockout applications, secure the connector using T&B 140 series locknuts and 5260 series sealing gaskets (purchase separately if not included). Ensure the 'O' ring is correctly positioned on the outside of the box. For 7000 and 9000 series, order the locknut separately. For 'Space Saver' Chase® connector assemblies, lock-up can be made by tightening the Chase® Nipple to the body or by turning the body onto the Chase® Nipple.
- Tighten the Connector to Specification
Tighten the gland nut and locknut to the specified torque values. Refer to the torque table provided in the documentation: 3/8" (200 lb.-in.), 1/2" (300 lb.-in.), 3/4" (500 lb.-in.), 1" (700 lb.-in.), 1 1/4" (1000 lb.-in.), 1 1/2" (1200 lb.-in.), 2" (1600 lb.-in.), 2 1/2" (1600 lb.-in.), 3" (1600 lb.-in.), 3 1/2" (1600 lb.-in.), 4" (1600 lb.-in.).
