Overview

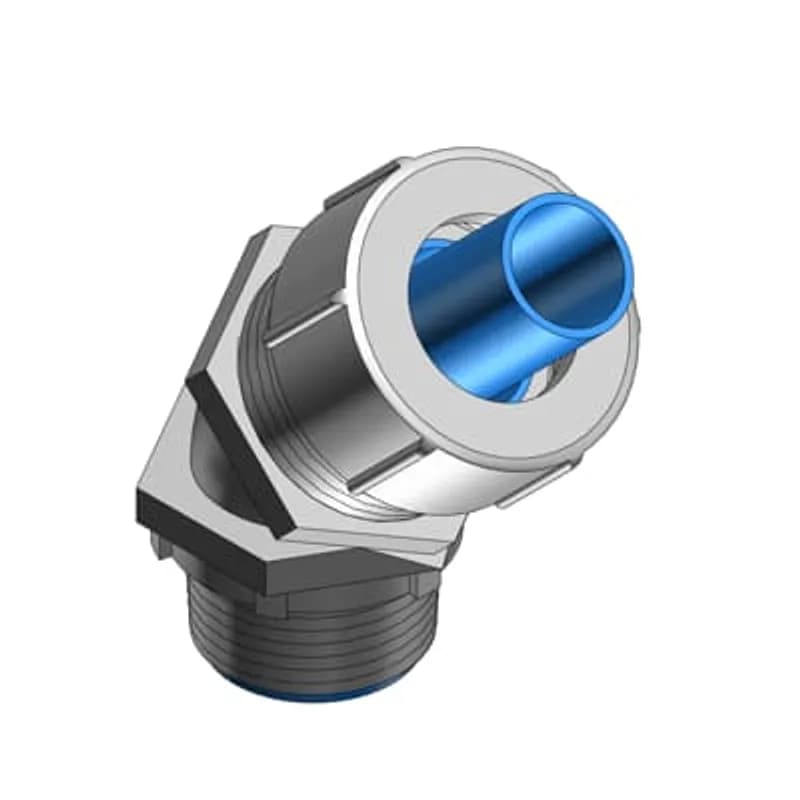

- 1-inch size for standard conduit applications
- 45-degree angle for directional routing flexibility
- Steel construction with corrosion-resistant properties
- Nylon insert prevents conduit damage and secures connections
- Compatible with LFMC and LFNC liquidtight conduits
Specifications
Application | T&B Bullet meets performance requirements when terminating Type B liquidtight non-metallic conduit or flexible non-metallic tubing to a box or enclosure with knockout opening or threaded hub |
Material | Steel |
Size | 1 Inch |
Standard | UL E23018, CSA |
Type | Bullet-45 Degree |
Package Dimensions (L x W x H) | 6 IN x 4 IN x 4 IN |
Package Dimensions (L x W x H) | 15.24 cm x 10.16 cm x 10.16 cm |
Package Weight (Imperial) | 0.5300 L |
Package Weight (Metric) | 0.2400 kg |
How to Assemble Liquid-Tight Conduit and Flexible Tubing
This guide provides step-by-step instructions for the proper assembly of Type B NM Liquid-Tight Conduit and XTRA FLEX® Flexible Tubing. For wet locations, use a 5262 Series Sealing Ring between the box and fitting for knock-out applications.
Estimated time: 10m
Tools needed:
Conduit cutter, Wrench
Supplies needed:
Type B NM Liquid-Tight Conduit, XTRA FLEX® Flexible Tubing, Gland-nut, 5262 Series Sealing Ring (for wet locations)
- Prepare the Conduit
Cut the conduit clean and square to ensure a proper fit and seal for the assembly.
- Insert Conduit into Gland-Nut
Insert the prepared conduit through the gland-nut opening. Push the conduit firmly to the bottom of the fitting with a slight twisting motion to ensure it seats correctly.
- Secure the Gland-Nut
Tighten the gland-nut securely until it bottoms out. Ensure a tight seal to prevent liquid ingress and maintain the integrity of the connection.
