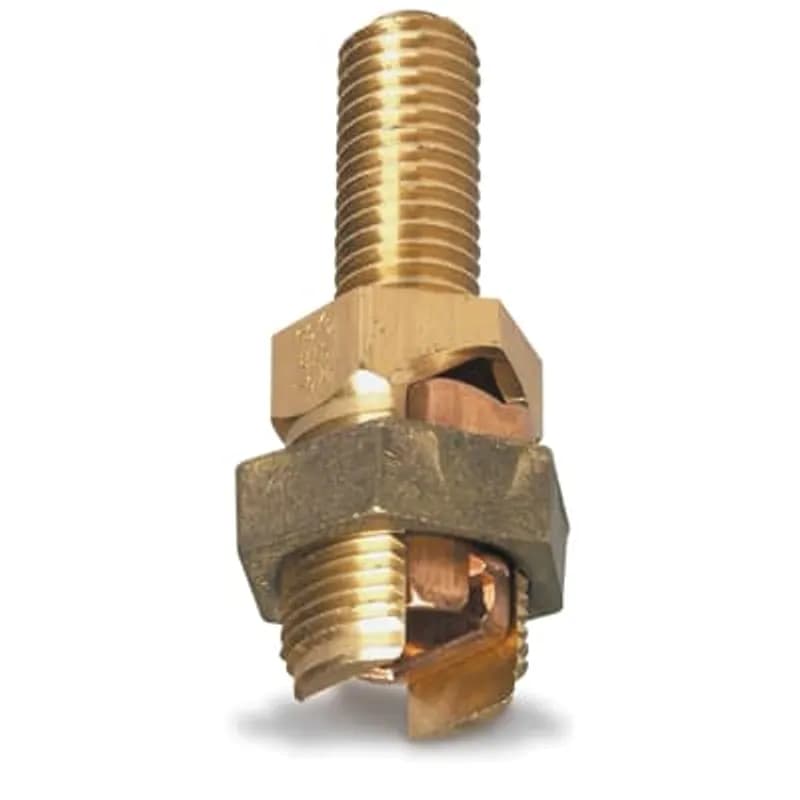

ABB - Installation Products SP1DL - Long Stud Double Service Post Connectors for Conductors 7 - 10 Stranded, 6 - 10 Solid, Stud Size 1/4 - 20 x 1

ABB Installation Products SP1DL Long Stud Double Service Post Connectors for Conductors 7 - 10 Stranded, 6 - 10 Solid…

UPC: 783786805235


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 100

Multiplier: 100

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB SP1DL Long Stud Double Service Post Connector is a precision-engineered electrical termination solution designed for secure, high-integrity connections in industrial and commercial electrical systems. This double-service post connector accommodates a conductor range of 7 to 10 AWG stranded (10mm² max) and 6 to 10 AWG solid (10mm² max), with a conductor diameter range of 0.164 to 0.102 inches. The 1/4-20 x 1 inch stud provides a robust mechanical mounting point for reliable electrical terminations, ensuring stable performance under operational stress. Engineered for versatility, the SP1DL supports both single and double conductor configurations, making it ideal for applications requiring organized wiring and efficient conductor distribution. Its long stud design enhances accessibility for terminations in tight or complex installations, reducing installation time while maintaining connection integrity. The connector’s construction is optimized for moderate conductor sizes, balancing mechanical strength and electrical conductivity. Common applications include control panels, motor starters, distribution boards, and industrial machinery where secure, long-term electrical connections are critical. The SP1DL is part of ABB’s Installation Products catalog, a trusted line of electrical infrastructure components known for consistent performance in demanding environments. With a UNSPSC code of 39121613, this connector aligns with standardized procurement and specification requirements for electrical components. Key benefits include: - Dual conductor support for efficient wiring layouts - Compatibility with stranded and solid conductors within specified AWG ranges - 1/4-20 x 1 inch stud for secure mechanical attachment - Long stud design for improved installation flexibility - Part of a comprehensive service post connector family for scalable solutions
  • Accommodates 7-10 AWG stranded and 6-10 AWG solid conductors
  • 1/4-20 x 1 inch stud for secure mechanical mounting
  • Double service post design for multiple conductor connections
  • Conductor diameter range: 0.164 to 0.102 inches
  • Part of ABB’s Installation Products catalog for electrical infrastructure

Specifications

Application
For copper to copper connections, for grounding of steel structures or transformers using one or two cables, for tapping one or two cables from bus bar
Conductor Material
Copper
Conductor Size
10 - 6 AWG
Connection Type
Double Service Post
Mounting Type
Stud
Series
SP
Series
SP1DL
Size
Stud Size 1/4 - 20 x 1
Size
7-10 AWG Stranded, 6-10 AWG Solid, 1/4-20 x 1" stud
Special Features
Hex design bolts are machined from high-conductivity bronze alloy
Standard
UL E9809, CSA 6591
Type
Mechanical Grounding
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.0500 L
Package Weight (Metric)
0.0230 kg
