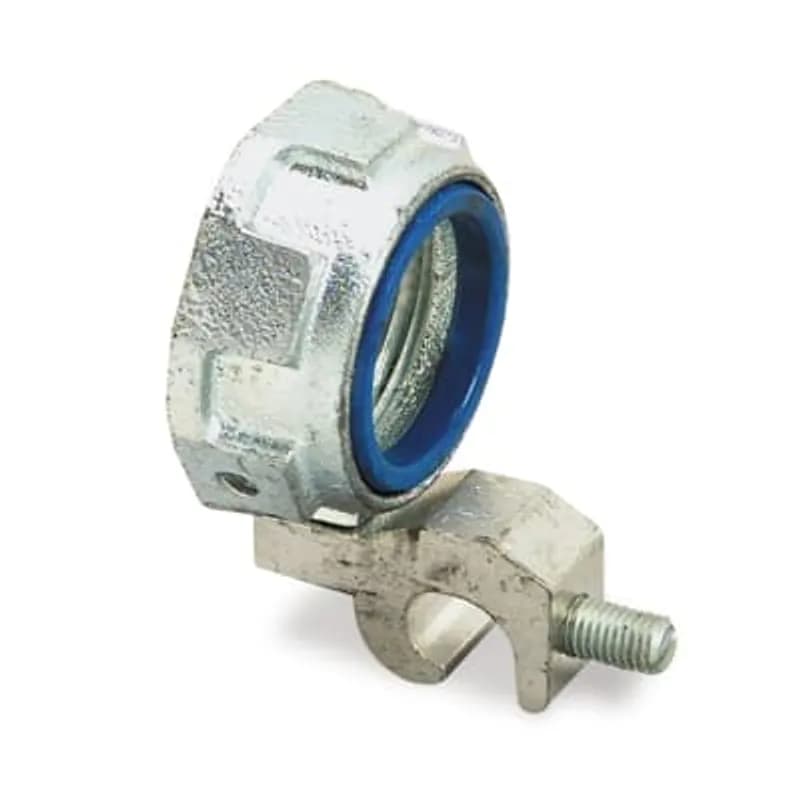

ABB - Installation Products 3887-TB - 3 Inch Threaded Insulated Grounding Bushing, Aluminum, Electro Zinc Plated, Wire Range 8 to 2/0, Thermoplastic Insulator for Use with Rigid/IMC Conduit

ABB Installation Products 3887-TB 3 Inch Threaded Insulated Grounding Bushing, Aluminum, Electro Zinc Plated, Wire Range 8…

UPC: 786210357546


Documents & Media
Installation InstructionsSpecification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 10

Multiplier: 10

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB 3887-TB is a 3-inch threaded insulated grounding bushing designed for reliable electrical grounding and mechanical protection of Rigid and Intermediate Metal Conduit (IMC) systems. Constructed from durable aluminum with an electro-zinc plated finish, this bushing offers excellent corrosion resistance for long-term performance in industrial and commercial environments. The integrated thermoplastic insulator is rated for 150°C (302°F) and accommodates wire sizes ranging from 8 AWG to 2/0 AWG, ensuring compatibility with a broad spectrum of grounding conductor requirements. Its lay-in lug design facilitates quick installation of bonding jumpers. The malleable iron body is engineered to securely lock the insulator in place, preventing dislodging and common assembly issues. This bushing is specifically designed for use with 3-inch Rigid and IMC conduit, meeting industry standards for grounding safety and electrical continuity. The threaded design ensures a secure installation, minimizing the risk of loosening over time. Ideal for applications in electrical panels, switchgear, and distribution systems where robust grounding is essential. Manufacturer: ABB - Installation Products. SKU: 3887-TB. UL File No. E 13938, CSA File No. 2884. Insulator flammability rating: 94V-0.
  • 3-inch threaded insulated grounding bushing for Rigid and IMC conduit
  • Durable aluminum construction with electro-zinc plated finish for corrosion resistance
  • Thermoplastic insulator rated for 150°C (302°F) and 94V-0 flammability
  • Accommodates wire sizes from 8 AWG to 2/0 AWG
  • Lay-in lug design for quick bonding jumper installation

Specifications

Application
For Quick Installation of Bonding Jumper to Multiple Metal Conduits (Rigid and IMC)
Material
Aluminum
Material
Malleable Iron
Size
3 Inch
Standard
UL E3060, CSA
Type
Grounding Bushings & Accessories
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.7400 L
Package Weight (Metric)
0.3360 kg
2 Inch, Non-Metallic Insulated Bushing, For Use with Rigid/IMC Conduit

BU 506

2 Inch, Non-Metallic Insulated Bushing, For Use with Rigid/IMC Conduit
Threadless Bushing, Insulated, Grounding, Malleable Iron, Size 1/2 Inch

TL-381

Threadless Bushing, Insulated, Grounding, Malleable Iron, Size 1/2 Inch
3 Inch Threaded Insulated Grounding Bushing, Malleable Iron, Electro Zinc Plated, Wire Range 14 to 4, Thermoplastic Insulator for Use with Rigid/IMC Conduit

3877-TB

3 Inch Threaded Insulated Grounding Bushing, Malleable Iron, Electro Zinc Plated, Wire Range 14 to 4, Thermoplastic Insulator for Use with Rigid/IMC Conduit
PVC Coated Ground Bushing, 3-1/2 Inch/91 Metric, Malleable Iron, Gray

GRBUSHING31/2-G

PVC Coated Ground Bushing, 3-1/2 Inch/91 Metric, Malleable Iron, Gray
Urethane Coated Reducing Bushing, Pipe Size 1 Inch/27 Metric Reducing to 1/2 Inch/16 Metric, Aluminum, Gray

RE31SA-G

Urethane Coated Reducing Bushing, Pipe Size 1 Inch/27 Metric Reducing to 1/2 Inch/16 Metric, Aluminum, Gray
Urethane Coated Reducing Bushing, Pipe Size 2-1/2 Inch/63 Metric Reducing to 1-1/2 Inch/41 Metric, Gray

RE75-G

Urethane Coated Reducing Bushing, Pipe Size 2-1/2 Inch/63 Metric Reducing to 1-1/2 Inch/41 Metric, Gray
Urethane Coated Reducing Bushing, Pipe Size 1-1/2 Inch/41 Metric Reducing to 3/4 Inch/21 Metric, Gray

RE52-G

Urethane Coated Reducing Bushing, Pipe Size 1-1/2 Inch/41 Metric Reducing to 3/4 Inch/21 Metric, Gray
PVC Bushing, 3/4 Inch, Gray

BU3/4-G

PVC Bushing, 3/4 Inch, Gray

Frequently Asked Questions

What conduit types are compatible with this bushing?

The 3887-TB is designed for use with Rigid and IMC conduit systems.

What wire sizes does this grounding bushing support?

The bushing accommodates wire sizes ranging from 8 AWG to 2/0.

Is this grounding bushing corrosion-resistant?

Yes, the bushing is made of aluminum with electro-zinc plating to resist corrosion.

What is the material of the insulator?

The insulator is made of thermoplastic, providing durable electrical insulation.

Does this bushing meet electrical safety standards?

Yes, it ensures electrical continuity and grounding safety, meeting NEC and OSHA compliance.

How to Install a Thomas & Betts 3887-TB Insulated Grounding Bushing

This guide provides step-by-step instructions for installing the 3887-TB insulated grounding bushing onto a conduit and connecting a bonding jumper.

Estimated time: 15m

Tools needed:

Screwdriver, Torque wrench, Wrench or pliers

Supplies needed:

Bonding jumper, Conduit, Copper or Aluminum wire

  1. Thread Bushing onto Conduit

    Thread the 3887-TB insulated grounding bushing onto the conduit until it bottoms out. If necessary, slightly back off the bushing to align the lay-in lug in the desired position.

  2. Secure Bushing to Conduit

    Tighten the set screw on the bushing to firmly secure it onto the conduit.

  3. Connect Bonding Jumper

    Install a bonding jumper (not supplied) into the lay-in lug. Torque the wire clamping screw to 120 Lb.In for copper (CU) conductors or 35 Lb.In for aluminum (AL) conductors. Ensure the bonding jumper is suitable for the application.

Frequently Asked Questions about ABB - Installation Products

How are Thomas and Betts products typically installed?

Thomas and Betts products are installed using a variety of methods tailored to specific applications, including the use of flexible cords and cable fittings, non-metallic cable glands, and armored cable fittings. Proper selection of fittings is crucial to match the cable type and installation environment, ensuring durability and preventing physical damage. Tools such as the Blackburn® Comfort Crimp® and HEX-FLEX® systems enhance installation efficiency and reliability, reducing labor time and ensuring secure connections.

What accessories are available for Thomas and Betts products?

Thomas and Betts offers a comprehensive range of accessories for their products, including various cord and cable fittings, non-metallic cable glands, service entrance cable fittings, and armored cable fittings. Their accessories are designed to enhance installation efficiency and ensure compatibility with different cable types and environmental conditions, providing reliable connections for a wide array of applications.

What environmental ratings do Thomas and Betts products have?

Thomas and Betts products feature robust environmental ratings, including NEMA Type 1, 2, 3, 4, 4X, 12, and 13 certifications, as well as IEC 60529 IP66 protection. These ratings ensure that their products are designed to withstand harsh industrial environments, with capabilities to resist dust, water, and corrosion, and operate effectively in a wide temperature range.

What communication protocols do Thomas and Betts products support?

Thomas and Betts products support a wide range of industrial communication protocols, including Ethernet, DeviceNet, PROFIBUS, Modbus, CANopen, and others. This extensive compatibility ensures seamless integration and reliable communication across various industrial automation systems, catering to diverse application needs.

What are the key features of Thomas and Betts products?

Thomas and Betts products are known for their innovative designs, high performance, and compliance with industry standards such as the National Electrical Code and Underwriters' Laboratories. They offer a comprehensive range of rugged and reliable electrical fittings, including liquidtight and dust-tight connections, which enhance installation efficiency and reduce overall project costs. Their products are engineered for durability in harsh environments, ensuring long-term reliability and lower installed costs.

What are the main product lines offered by Thomas and Betts?

Thomas and Betts offers a comprehensive range of product lines including electrical connectors, cable management systems, grounding and bonding solutions, and industrial automation components. Their products are designed for durability and reliability in demanding industrial environments, ensuring optimal performance and safety across various applications.

What technical support does Thomas and Betts offer?

Thomas and Betts offers comprehensive technical support, including access to field application engineers for onsite training and installation assistance. Their technical support staff is available to address inquiries related to product specifications and installation practices, ensuring optimal performance and safety of electrical systems. Additionally, they provide a variety of training programs to enhance the knowledge and skills of users in the field.

What industries and applications are Thomas and Betts products used for?

Thomas and Betts products are utilized across various industries including electrical construction, industrial automation, telecommunications, and utilities. Their extensive range of cord and cable fittings, electrical boxes, and metal framing systems are designed for applications that require durability and reliability in harsh environments, ensuring optimal performance in both permanent and temporary installations.

What certifications and standards do Thomas and Betts products comply with?

Thomas and Betts products comply with critical international certifications including UL (Underwriters Laboratories), CSA (Canadian Standards Association), and CE (European Community). Our products are designed to meet rigorous industrial standards such as NEMA enclosure ratings and IEC 60529 IP ratings, ensuring safety and reliability across various industrial applications.
