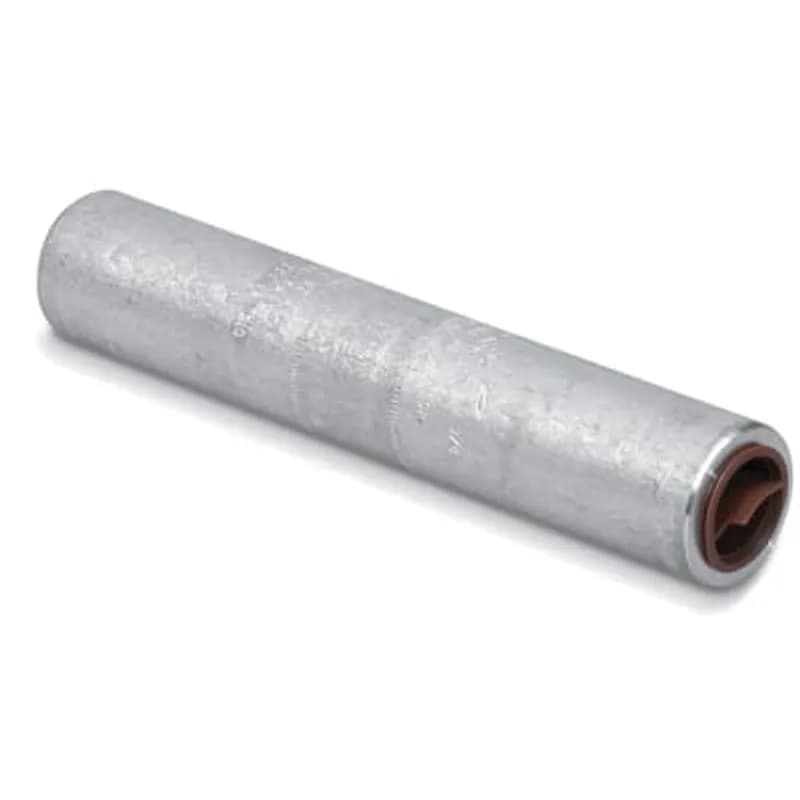

ABB - Installation Products 3000-9-HM - Aluminum Compression Splice Reducer, 350 MCM to 1/0 Stranded, Aluminum and Copper. Length 4 inch. Oxide Inhibitor, Brown 350 Cap, Yellow 1/0 Cap. Oil Stop. Dies 96 299 321 1 1/8-1 13A.

ABB Installation Products 3000-9-HM Aluminum Compression Splice Reducer, 350 MCM to 1/0 Stranded, Aluminum and Copper.…

UPC: 783786765966

Documents & Media
Manufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB 3000-9-HM Aluminum Compression Splice Reducer is a precision-engineered connector for transitioning between 350 MCM and 1/0 AWG stranded conductors in aluminum or copper applications. This splice reducer measures 4 inches in length and features an oxide inhibitor to prevent corrosion at the connection point, ensuring long-term conductivity and reliability. The product includes color-coded caps—brown for the 350 MCM side and yellow for the 1/0 side—for easy identification during installation. It is compatible with standard compression dies (96, 299, 321, 1 1/8-1, and 13A) and includes an oil stop to prevent fluid ingress, making it suitable for use in environments where moisture or contaminants may be present. Designed for electrical distribution systems, this splice reducer is ideal for applications requiring secure, low-resistance connections between different conductor sizes. It meets industry standards for compression splicing and is manufactured by ABB Installation Products, a trusted name in electrical infrastructure solutions. The UNSPSC code 39121449 classifies it as a power wire connector, confirming its role in electrical installation and maintenance.
  • Transition between 350 MCM and 1/0 AWG stranded aluminum or copper conductors
  • 4-inch length with oxide inhibitor to prevent corrosion
  • Color-coded caps (brown for 350 MCM, yellow for 1/0) for easy identification
  • Oil stop included to prevent fluid ingress
  • Compatible with compression dies: 96, 299, 321, 1 1/8-1, 13A

Specifications

Conductor Range
1/0 STR AWG , 350 kcmil
Connection
Compression
Finish
Bare
Insulation
None
Material
Aluminum
Number Of Conductors
2
Size
Length 4.000 inch, Outside Diameter 1.125 inch
Special Features
Marked with Conductor Sizes and Dies References. Dual Rated for Aluminum and Copper Conductors. Brown and Yellow Caps, Oxide Inhibiting Compound. Center Stop
Type
Compression Splice Service Entrance Insulated
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.3100 L
Package Weight (Metric)
0.1410 kg
