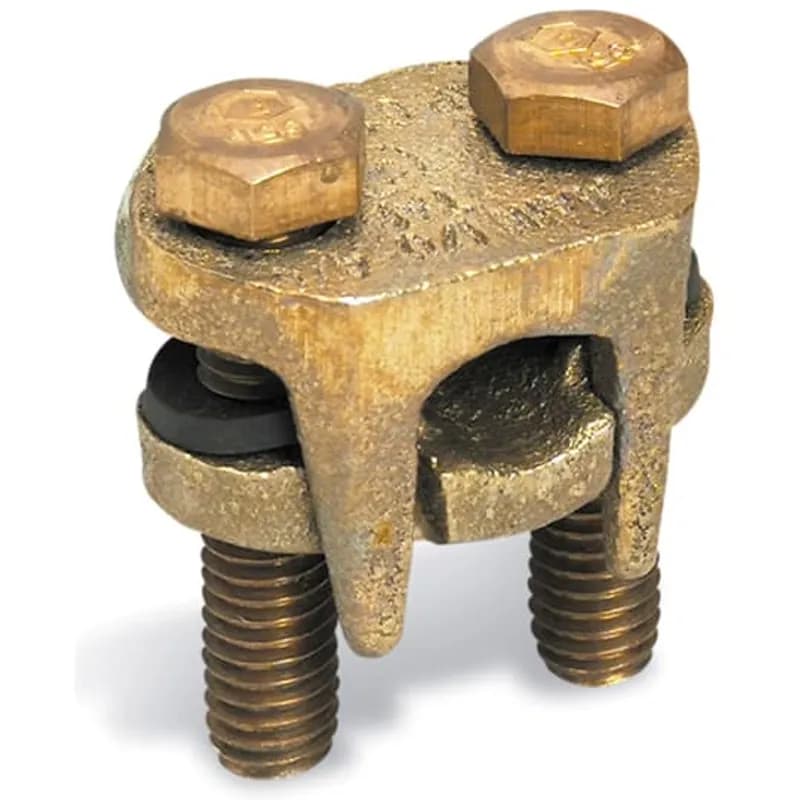

ABB - Installation Products 2B1000 - Copper Type 2B - Two-Bolt Connector without Spacer for Wire Range Main: 750 - 1000 kcmil Tap: 2 Sol. - 1000 kcmil , Bolt Size 15/16

ABB Installation Products 2B1000 Copper Type 2B - Two-Bolt Connector without Spacer for Wire Range Main: 750 - 1000 kcmil…

UPC: 783786400072

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 4

Multiplier: 4

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB 2B1000 is a robust two-bolt copper connector designed for reliable electrical connections in industrial applications. Manufactured by ABB Installation Products, this connector (SKU: 2B1000) is engineered for substantial wire ranges, accommodating main conductors from 750 to 1000 kcmil. The tap conductor range is equally impressive, supporting wires from 2 Sol. up to 1000 kcmil. This configuration ensures versatility for various power distribution and grounding needs. The connector features a two-bolt design, providing secure and stable clamping force essential for maintaining low resistance and preventing thermal expansion issues. The bolt size is 15/16, indicating a substantial fastener suitable for high-current applications. Constructed from copper, it offers excellent conductivity and corrosion resistance, critical for long-term performance in demanding environments. The absence of a spacer in this model (Type 2B) simplifies installation for specific configurations where direct contact between conductors is intended or where the application dictates. This connector is suitable for applications requiring high ampacity and dependable termination. Its UNSPSC code is 39121408, categorizing it within electrical connectors and accessories. The specific country of origin is not provided in the catalog description.
  • Two-bolt copper connector for secure electrical terminations.
  • Accommodates main conductors from 750 to 1000 kcmil.
  • Supports tap conductors from 2 Sol. to 1000 kcmil.
  • 15/16 inch bolt size for robust clamping.
  • Durable copper construction for excellent conductivity and corrosion resistance.

Specifications

Bolt Size
15/16 in
Connection Type
Two-Bolt Connector
Material
Copper
Size
Main: 750 - 1000 kcmil, Tap: 2 Sol. - 1000 kcmil
Special Features
Castings and bolts of high-strength copper alloy. Removable cap
Standard
UL E9809
Type
Two-Bolt Connector
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.8000 L
Package Weight (Metric)
0.8170 kg
Heat Shrink Ring Terminal 12 10 AWG, 3/8" stud size.

PH10-38R-E

Heat Shrink Ring Terminal 12 10 AWG, 3/8" stud size.
Service Post Connector - Two Wire Type 4 STR Service Post Connectors is used for connecting one or two conductors. Made from high copper content hard-drawn rod. Lay-in feature makes them excellent for continuous loop grounding and bonding. Used to ground to bar or plate. Suitable for direct burial in earth or concrete.

SPM-24L

Service Post Connector - Two Wire Type 4 STR Service Post Connectors is used for connecting one or two conductors. Made from high copper content hard-drawn rod. Lay-in feature makes them excellent for continuous loop grounding and bonding. Used to ground to bar or plate. Suitable for direct burial in earth or concrete.
Copper Blank Tongue Lug, Standard Barrel, Peep Hole, Max 35kV, Wire Size #2 AWG, Tin Plated, Die Code 33, Die Color Code Brown

54143BT

Copper Blank Tongue Lug, Standard Barrel, Peep Hole, Max 35kV, Wire Size #2 AWG, Tin Plated, Die Code 33, Die Color Code Brown
Set Screw Two-Piece Pressure Type Connector Solid Brass Insert with a Screw-on Insulating Cap Vibration Proof Visible Connection Insert Screw and Brass Barrel Only #18 - #12

1SHD

Set Screw Two-Piece Pressure Type Connector Solid Brass Insert with a Screw-on Insulating Cap Vibration Proof Visible Connection Insert Screw and Brass Barrel Only #18 - #12
Set Screw Two-Piece Pressure Type Connector Solid Brass Insert with a Screw-on Insulating Cap Vibration Proof Visible Connection Insert Screw and Brass Barrel Only #16 - #10

2SHD

Set Screw Two-Piece Pressure Type Connector Solid Brass Insert with a Screw-on Insulating Cap Vibration Proof Visible Connection Insert Screw and Brass Barrel Only #16 - #10
Two Piece Inner Sleeve Connector for Hexagonal Range, Length 5/16 Inch/7.9mm, Inner Diameter .165 Inches/4.20mm, Outer Diameter .194 Inches/4.92mm, Color Silver, Hard Bronze, Nickel Plated

GSB165NP

Two Piece Inner Sleeve Connector for Hexagonal Range, Length 5/16 Inch/7.9mm, Inner Diameter .165 Inches/4.20mm, Outer Diameter .194 Inches/4.92mm, Color Silver, Hard Bronze, Nickel Plated
Two Piece Flared Inner Sleeve Connector for Hexagonal Range, Length 5/16 Inch/7.9mm, Inner Diameter .165 Inches/4.20mm, Outer Diameter .194 Inches/4.92mm, Color Silver, Hard Bronze, Tin Plated

GSB165X

Two Piece Flared Inner Sleeve Connector for Hexagonal Range, Length 5/16 Inch/7.9mm, Inner Diameter .165 Inches/4.20mm, Outer Diameter .194 Inches/4.92mm, Color Silver, Hard Bronze, Tin Plated
Aluminum Lay-in-Lug Connector, Conductor Range 6-250 AWG, Stud Size 0.33 Inches

LL2506

Aluminum Lay-in-Lug Connector, Conductor Range 6-250 AWG, Stud Size 0.33 Inches

Frequently Asked Questions

What is the main wire range for the ABB 2B1000 connector?

The ABB 2B1000 connector is designed for main conductors ranging from 750 to 1000 kcmil.

What tap wire range does the 2B1000 connector support?

The ABB 2B1000 connector supports tap conductors from 2 Sol. up to 1000 kcmil.

What is the bolt size for the ABB 2B1000 connector?

The ABB 2B1000 connector features a 15/16 inch bolt size.

What material is the ABB 2B1000 connector made from?

The ABB 2B1000 connector is constructed from copper for excellent conductivity and corrosion resistance.

Does the ABB 2B1000 connector include a spacer?

No, the ABB 2B1000 is a Type 2B connector, meaning it is designed without a spacer.
