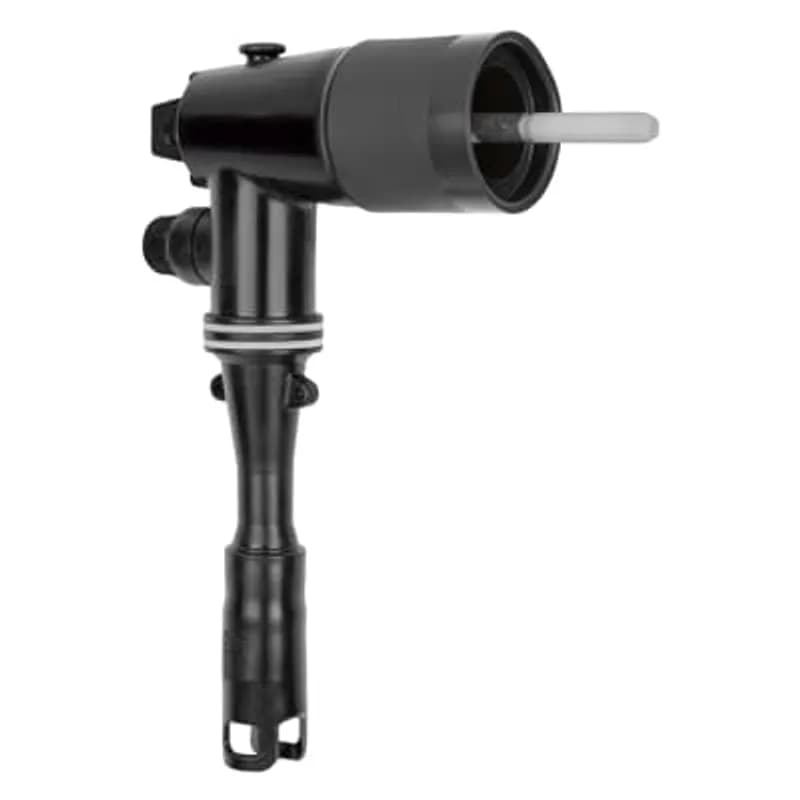

Overview
- 25kV voltage rating
- 200 Amp current rating
- Loadbreak capability
- Jacket seal for environmental protection
- Integrated test point for diagnostics
Specifications
Amperage Rating | 200 A |
Application | 25 kV, 200 Amp |
Color | Black |
Conductor Range | #1 STR/COMPR AWG , 1/0 SOL/COMPT AWG |
Connection | Compression |
Connection Type | Compression Lug |
Current Rating | 200 A |
Environmental Conditions | All Weather Conditions |
Insulation | True |
Length | 11.47 in |
Length | 291.338 mm |
Material | Bi-Metal |
Material | Housing - EPDM-Rubber |
Mounting Type | Loadbreak Jacket Seal Elbow Connector |
Size | 0.890 inch to 1.220 inch |
Special Features | 25kV, 200 Amp Loadbreak Elbow. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provision for hot stick operation. Provision for ground wire connection. Wide cable range with minimum number of sizes. Long bi-metal compression lug is standard. Built in cable jacket seal. Non-corrosive capacitive test point |
Standard | ANSI/IEEE Standard 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Loadbreak Elbow Connector with Test Point and Jacket Seal |
Voltage Rating | 28 kV |
Voltage Rating | 25 kV |
Width | 8.2 in |
Width | 208.28 mm |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 2.4000 L |
Package Weight (Metric) | 1.0890 kg |
262LR-E5230
25kV, 200 Amps, Loadbreak Elbow, no Sealing Kit, Cable Insulation Diameter 1.090-1.310 inches, (27.69-33.27 mm), Bi-Metal Conductor, Conductor Size #1 Stranded/Compressed, 1/0 Solid/Compact. With Test Point. Kit Contains Elbow Connector Housing, Compression Lug, Probe, Probe Wrench, Lubricant, Installion Instruction Sheet and Crimp Chart.
K656CETP-H0240-DRG
25kV, 600 Amp, Combo T Elbow Reducing Tap Plug with Test Point, includes Stud, Cable Adapter, Lug and Insulated Cap Kit, Cable Insulation Diameter .850-1.050 inches (21.6-26.7 mm), Universal Aluminum Connector Type, Connector Size 1/0 Stranded/Compressed or 2/0 Solid/Compact. With Insulating Cap.K656CETP-P0410-DRG
25kV, 600 Amp, Combo T Elbow Reducing Tap Plug with Test Point, includes Stud, Cable Adapter, Lug and Insulated Cap Kit, Cable Insulation Diameter 1.725-1.935 inches, Universal Aluminum Connector Type, Connector Size 1000 kcmil Stranded/Compressed. With Insulating Cap.
376LR-H5220
35kV 200 Amp, Loadbreak Elbow Connector with Test Point, Cable Insulation Diameter 0.850 inch to 1.050 inch. Bi-Metal Compression Lug. Conductor Size AWG Compressed Stranded #2 or Solid #1.
K655LR-G0330-SG3
600 Amp, 15/25kV, 600 Series Deadbreak, Elbow with Insulated Plug, Cap, Stud, Lug and Cable Adapter. Aluminum Compression Lug. Cable Insulation Diameter 0.760 inch to 0.950 inch. Conductor Size AWG Compressed Stranded #1 or Compacted Solid 1/0. Cold-Shrinkable Seal with Copper Braid and Constant Force Spring.
K655DLR-L0290
15/25kV, 600 Amp, Direct Test Elbow, DeadBreak, Cable Insulation 1.180-1.465 inches, Aluminum Compression Lug, Conductor Size 300 kcmil Stranded/Compressed or 350 kcmil Solid/Compact. Width 10.36 inch, Length 13 inch from bottom edge to Center of Bushing. Diameter 3.83 inch.
756LR-G0250-SG3
35kV 600 Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and Cable Adapter). Aluminum Compression Lug. Cable Insulation Diameter 0.760 inch to 0.950 inch. Conductor Size AWG or kcmil, Compressed Stranded 2/0 or Compacted Solid 3/0. Cold Shrinkable Seal with Copper Braid and Constant Force Spring. Width 12.28 inch, Length 13.93 inch from bottom edge to Center of Bushing. Diameter 3.83 inch.Frequently Asked Questions
Does the Elastimold loadbreak elbow have any certifications?
Yes, it has Rural Utilities Service (RUS) acceptance from the USDA, IEEE 386 compliant, and ANSI certification.
What are the voltage ratings for the Elastimold loadbreak elbow?
The Elastimold 200 amp loadbreak elbow is available in 15 kV and 25 kV series.
Is an integral jacket seal available for the elbow?
Yes, an optional integral jacket seal is available for the Elastimold loadbreak elbow.
Is the Elastimold elbow optimized for switching?
Yes, the enhanced Elastimold 200 amp loadbreak elbow is optimized for switching operations.
Does the Elastimold loadbreak elbow have any certifications?
Yes, it has Rural Utilities Service (RUS) acceptance from the USDA, IEEE 386 compliant, and ANSI certification.
Is the Elastimold elbow optimized for switching?
Yes, the enhanced Elastimold 200 amp loadbreak elbow is optimized for switching operations.
Is an integral jacket seal available for the elbow?
Yes, an optional integral jacket seal is available for the Elastimold loadbreak elbow.
What are the voltage ratings for the Elastimold loadbreak elbow?
The Elastimold 200 amp loadbreak elbow is available in 15 kV and 25 kV series.
What is the Elastimold 200 amp loadbreak elbow?
It is an enhanced loadbreak elbow for 15 kV and 25 kV series, incorporating innovative design for switching operations.
What are the voltage ratings for this elbow?
The enhanced Elastimold 200 amp loadbreak elbow is available for 15 kV and 25 kV series.
How to Install Elastimold 261LRJS/262LRJS Loadbreak Elbow Connectors
This guide provides step-by-step instructions for the safe and proper installation of Elastimold 261LRJS and 262LRJS Loadbreak Elbow Connectors with Jacket Seal on UD cable.
Estimated time: 1h 30m
Tools needed:
Probe Wrench, Crimp tool, Wire brush, Hotstick
Supplies needed:
Lubricant (supplied, do not substitute), Mastic sealing strips (3 supplied), Vinyl tape, Compression lug (supplied), Probe (supplied), No. 14 AWG (2.5mm) copper wire or equivalent, Appropriate ground connector, HV insulated cap(s) or connector(s) (if replacing shipping covers)
- Initial Safety and Component Check
Ensure all apparatus is de-energized before beginning installation to prevent serious injury. Inspect all package contents for completeness and damage. Verify proper fit of components with the cable and mating products. If a test point cap is not installed, lubricate and install it.
- Train and Cut Cable
Train the cable to allow sufficient slack for operation. Pull extra cable 24-26 inches beyond the bushing centerline and place a tape mark at the centerline. Remove the outer jacket 7-3/4 to 8 inches back from this tape mark. Unwrap neutral wires back past the bushing centerline and cut the excess cable squarely at the bushing centerline.
- Prepare Cable Jacket and Neutral Wires
Wrap one mastic strip, stretching slightly, around the cable jacket. Bend all neutral wires straight back over the mastic and press them firmly into it. Wrap a second mastic strip completely around the outer jacket, overlapping the imbedded neutral wires. Use a third strip if needed to build up the outer diameter in the area of the first mastic location, then cover all mastic with vinyl tape.
- Prepare Cable Insulation and Install Lug
Remove the insulation shield and insulation from the cable end, cutting squarely and taking care not to nick the conductor. Wire brush bare aluminum conductors and immediately install the compression lug. Rotate the lug to spread inhibitor. Position the compression lug so its contact threaded hole aligns with the bushing bore. Crimp the lug according to the provided crimp chart, starting at the crimp line mark and rotating 180 degrees for each successive crimp. Carefully wipe off any excessive inhibitor from the outside of the lug and cable. Remove the remaining insulation shield and bevel the insulation end by a maximum of 1/8 inch. Thoroughly clean the insulation to remove all traces of conductive residue.
- Assemble Elbow Connector
Lubricate the cable insulation and the inside of the elbow housing with the supplied lubricant; DO NOT SUBSTITUTE. Other lubricants may be harmful to this product or its mating product(s). Keep insulation clean of dirt and grime. Slide the elbow connector onto the cable with a back-and-forth twisting motion and wipe off all excess lubricant. Align the elbow with the compression lug’s threaded hole. Thread the probe into the lug by hand, taking care not to cross-thread. The probe must turn freely for approximately four turns before becoming snug. Tighten the probe with the wrench until the wrench bends.
- Connect Concentric Neutral
Insert one end of a separate No. 14 AWG (2.5mm) copper wire or equivalent through the grounding eye on the elbow and twist it tightly, taking care not to damage the eye. Pull the hood over the concentric neutral seal area on the cable by pulling the tabs and/or rolling the seal down. Twist all neutral wires together and connect them to ground using an appropriate connector, ensuring adequate slack in wires for elbow operation.
- Connect Elbow to Bushing
Lubricate the receptacle portion of the elbow connector and the mating bushing with the supplied lubricant. LUBRICATE ONLY IF THE TRANSFORMER AND ELBOW ARE KNOWN TO BE DE-ENERGIZED. Operate per the following instructions, using a hotstick. DO NOT OPERATE BY HAND.
