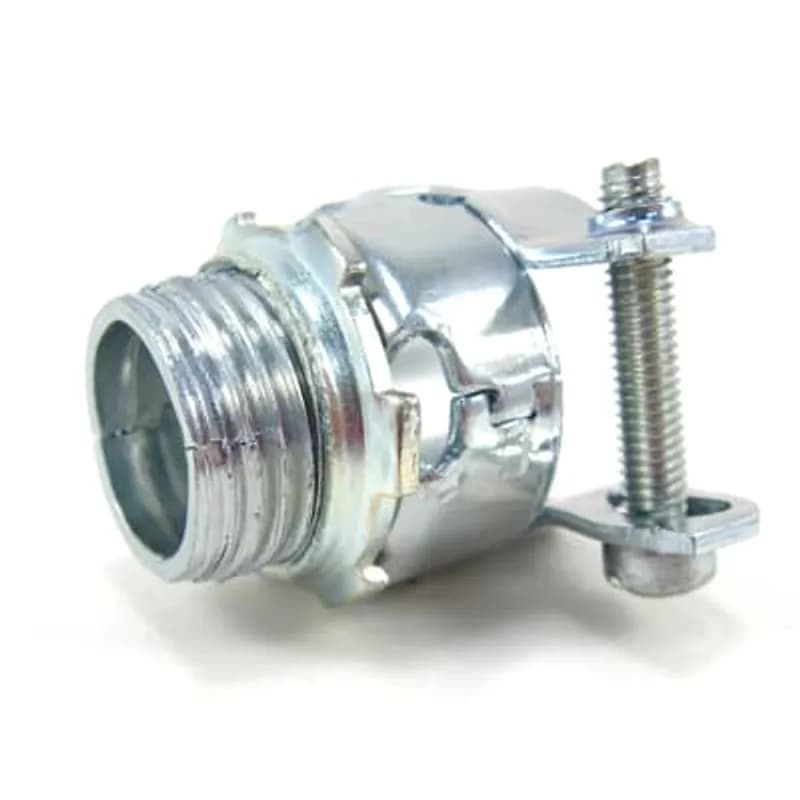

ABB - Installation Products 253-TB - Squeeze Connector, Straight, Trade Size 3/8 Inch, Knockout Size 1/2 Inch, Cable Range 0.455 to 0.585 Inch, Steel

ABB Installation Products 253-TB Squeeze Connector, Straight, Trade Size 3/8 Inch, Knockout Size 1/2 Inch, Cable Range…

UPC: 786210002538


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 100

Multiplier: 100

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB 253-TB squeeze connector is a straight, steel compression fitting designed for secure cable terminations in trade size 3/8 inch applications. This connector accommodates a cable range from 0.455 to 0.585 inches, making it compatible with a variety of wire gauges commonly used in industrial and commercial installations. The knockout size of 1/2 inch ensures compatibility with standard electrical enclosures and junction boxes. Engineered for reliable mechanical and electrical connections, the 253-TB provides a permanent, vibration-resistant termination that meets NEC and UL requirements for grounding and bonding applications. The steel construction offers corrosion resistance and mechanical strength, suitable for indoor and protected outdoor environments where UL-listed components are required. This connector is part of ABB’s Installation Products line, a trusted manufacturer in electrical infrastructure solutions. The squeeze design eliminates the need for solder or tape, reducing installation time and improving consistency. Ideal for use in panelboards, motor control centers, and distribution equipment where secure, code-compliant terminations are essential. Key specifications: - Trade size: 3/8 inch - Knockout size: 1/2 inch - Cable range: 0.455 to 0.585 inch diameter - Material: Steel - SKU: 253-TB - UNSPSC: 39121419
  • Straight squeeze connector for secure cable terminations
  • Trade size 3/8 inch, knockout size 1/2 inch
  • Cable range: 0.455 to 0.585 inch diameter
  • Steel construction for corrosion resistance and strength
  • UL-listed for grounding and bonding applications

Specifications

Material
Steel
Size
Trade Size 3/8 Inch, Knockout Size 1/2 Inch
Package Dimensions (L x W x H)
4 IN x 5 IN x 8 IN
Package Dimensions (L x W x H)
10.16 cm x 12.7 cm x 20.32 cm
Package Weight (Imperial)
0.0600 L
Package Weight (Metric)
0.0270 kg
