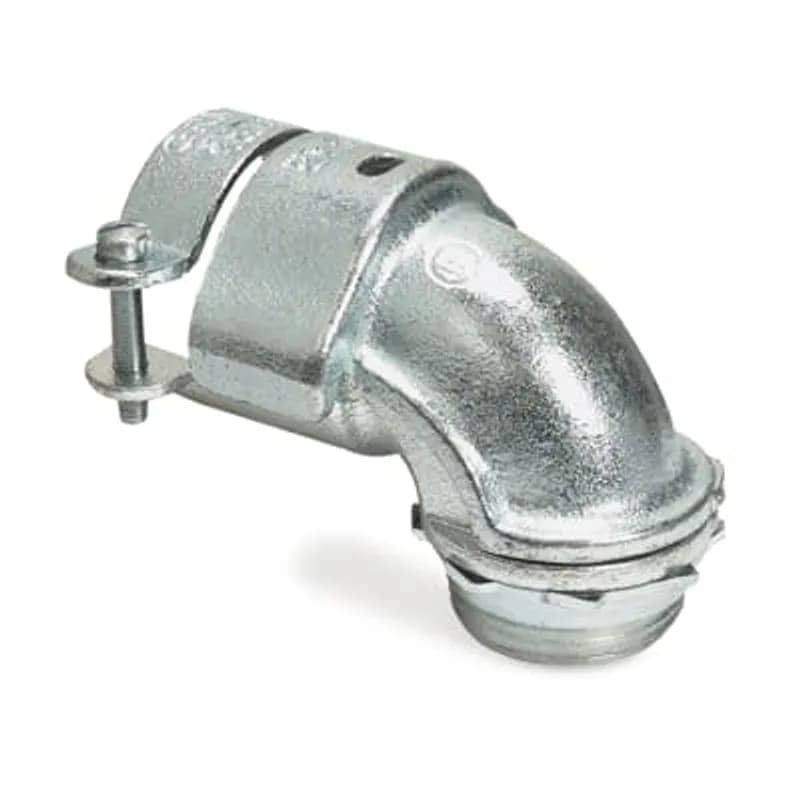

ABB - Installation Products 273-TB - Squeeze Connector, 90 Degree Bend, Trade Size 1 Inch, Knockout Size 1 Inch, Cable Range 1.187 to 1.406 Inch, Malleable Iron

ABB Installation Products 273-TB Squeeze Connector, 90 Degree Bend, Trade Size 1 Inch, Knockout Size 1 Inch, Cable Range…

UPC: 786210002736


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 5

Multiplier: 5

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB 273-TB Squeeze Connector is a 90-degree angle fitting meticulously engineered for secure and efficient conduit terminations within demanding industrial electrical installations. Manufactured by ABB - Installation Products, this robust connector is constructed from high-quality malleable iron, a material chosen for its inherent durability, ensuring exceptional performance and superior resistance to physical impact and environmental stresses. The 273-TB features a precise 1-inch trade size and a corresponding 1-inch knockout size, guaranteeing a snug and reliable fit for conduit systems that necessitate a directional change in their layout. This specific design is optimized to accommodate a wide cable opening range, extending from 1.187 inches to 1.406 inches. This broad compatibility makes the 273-TB an ideal solution for a variety of cable types commonly found in industrial settings, including armored cable, metal-clad cable, and flexible metal conduit, offering significant versatility to installers. The innovative squeeze connector design significantly simplifies the installation process, requiring only two screws for tightening. This streamlined approach not only reduces the time and effort required for installation but also minimizes the complexity of the task, contributing to overall project efficiency. The 273-TB is an integral part of the comprehensive ABB T&B Fittings product line, a range renowned for its adaptability and capacity to accommodate a diverse array of cable and conduit sizes, providing a unified solution for electrical infrastructure needs. The strategically designed 90-degree angle of the fitting is crucial for facilitating smooth and unimpeded navigation around corners, through tight spaces, and past obstacles, thereby ensuring the continuous integrity and protection of the electrical pathway. This connector is listed under UL File No. E 23018 and CSA File No.
  • Malleable iron construction for durability
  • 90-degree angle for directional conduit changes
  • 1-inch trade size and 1-inch knockout size
  • Accommodates cable opening range of 1.187 to 1.406 inches
  • Suitable for armored cable, metal-clad cable, and flexible metal conduit
  • Features a two-screw tightening design for simplified installation
  • UL File No. E 23018, CSA File No. 2884

Specifications

Material
Malleable Iron
Size
1 Inch
Package Dimensions (L x W x H)
6 IN x 4 IN x 4 IN
Package Dimensions (L x W x H)
15.24 cm x 10.16 cm x 10.16 cm
Package Weight (Imperial)
0.6200 L
Package Weight (Metric)
0.2810 kg
