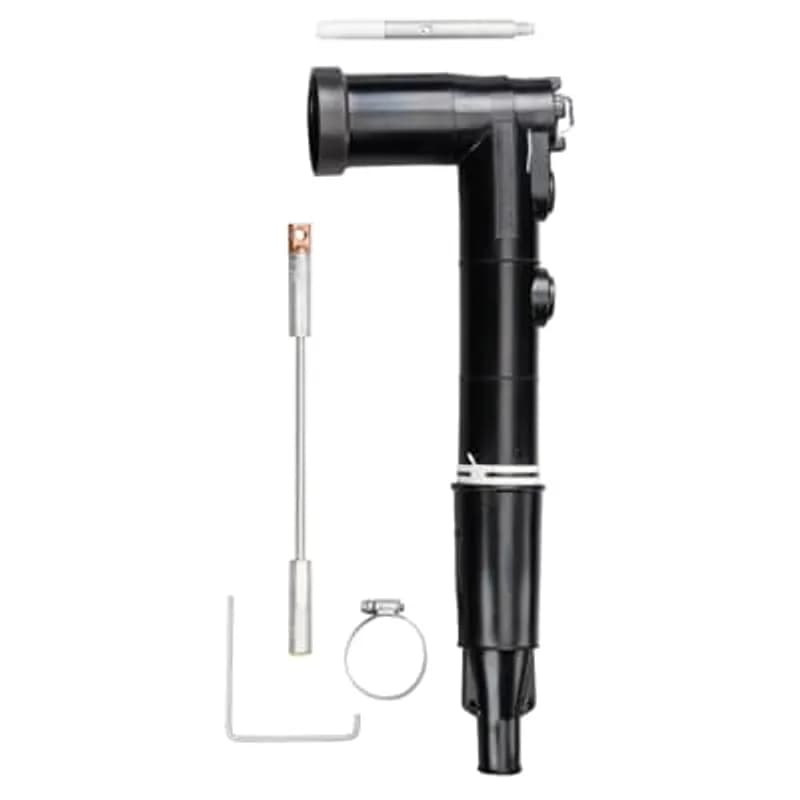

ABB Installation Products 167RLR-H-5260 200 Amp LoadBreak Replacement Elbow without Test point, Cable Insulation Diameter 0.850…
UPC: 075114264433
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 200 Amp continuous and loadbreak rating for medium-voltage applications
- Accommodates cable insulation diameters from 0.850" to 1.050"
- Bi-metal compression lug for 3/0-4/0 AWG compressed stranded or solid 4/0 conductors
- Extended length housing (+10.5") for cables too short for standard elbows
- Fully shielded, submersible molded rubber housing with peroxide-cured insulation
Specifications
Amperage Rating | 200 A |
Application | Designed for connecting to and operating 15kV Class, 95kV BIL apparatus |
Color | Black |
Conductor Range | 3/0 STR/COMPR AWG , 4/0 SOL/COMPT AWG |
Connection Type | Compression Lug |
Current Rating | 200 A |
Environmental Conditions | Fully Submersible |
Insulation | True |
Material | Bi-Metal |
Material | Housing - EPDM-Rubber |
Series | 167RLR |
Size | Cable Insulation Diameter 0.850 inch to 1.050 inch |
Size | 0.850-1.050 inch (cable insulation diameter) |
Special Features | Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured insulation, insert and jacket. Provision for hot stick operation, Provision for ground wire connection. Wide cable range with minimum number of sizes. Extended length housing and compression lug plus 10-1/2 inch (266.7mm) |
Standard | ANSI/IEEE Standard 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Loadbreak Replacement Elbow Connector |
Voltage Rating | 15 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |

161LR-B5260
15KV, 200 Amp, Loadbreak Elbow, Cable Insulation Diameter 0.635 inch to 0.905 inch. Bi-Metal Compression Lug. Conductor Size AWG Compressed Stranded 3/0 /Solid 4/0 /mmSquared 85.01.
655CETPL0330
600 Amp, 15KV, Combo T Elbow Reducing Tap Plug with stud, cable adapter, Lug and Insulated Cap kit, No Test Point, Cable Insulation Diameter Range - 1.180 ti 1.465 inches, Connector Type - Universal Aluminum, Connector Size - AWG or Kcmil - Stranded Compressed 500, Solid/Compact 600, MMSQ Compact only 300.
K655CETP-M0380
15/25kV, 600 Amp, no test point, Combo T Elbow Reducing Plug with Stud, Cable Adapter, Lug and Insulated Cap Kit. Cable Insulation Diameter 1.370 inch to 1.630 inch. Aluminum Compression Lug. Conductor Size kcmil Compressed/Stranded 700/750 kcmil or Solid/Compact 900 kcmil.
655CETP-J0270-DRG
600 Amp, 15kV, Combo T Elbow Reducing Tap Plug with Stud, Cable Adapter, Lug, No Test Point, Aluminum, Cable Insulation Diameter 0.980 inch to 1.180 inch. Conductor Size AWG or kcmil, Compressed Stranded 4/0 /Compacted Solid 250 /mmSquared Compact 125. With Insulated Cap
655CETP-L0380
15kv, 600 Amp (base aluminum) No Test Point, Combo T Elbow Reducing Tap Plug with Stud, Cable Adapter, Lug and Insulated Cap Kit, Cable Insulation Diameter Range - 1.180 to 1.465 inches (30.0 to 37.2 mm), Universal Aluminum Connector Type, Connector Sizing - 750 Stranded/Compressed, 900 Solid/Compact. No Sealing Kit.
655CETP-K0300S
15kv 600 Amp Dead Break Combo T Elbow with 200 Amp Reducing Tap Plug, Stud, Cable adapter and Lug Kit without Test Point. Cable Insulation Diameter 1.090 inch to 1.310 inch. Universal Aluminum Compression Lug. Conductor Size Compressed Stranded 350 kcmil or Solid Compact 400 kcmil. Includes Cold-Shrinkable Jacket Seal.
K656CETP-N0410-DRG
15/25kV, 600 Amp Base Aluminum, includes test point, Combo T Elbow Reducing Tap Plug with Stud, Cable Adapter, Lug and Insulated Cap Kit. Cable Insulation Diameter 1.515 inch to 1.780 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 1000. With Insulated Cap.
655CETP-M0380-S
600 Amp, 15kV, Combo T Elbow Reducing Tap Plug with Stud, Cable Adapter, Lug, No Test Point, Aluminum, Cable Insulation Diameter 1.370 inch to 1.630 inch. With Shrink-Fit Jacket Seal Kit. Aluminum Compression Lug, 700/750 kcmil Stranded/Compressed or 900 kcmil Solid/Compact.Frequently Asked Questions
What is the primary use of these elbow connectors?
These elbow connectors are used for switchgear and transformer replacement, especially for live-front to dead-front conversions, addressing varying bushing heights and insufficient cable length.
Where are these elbow connectors manufactured?
Elastimold 200 A repair and replacement elbows are designed, molded, and tested in Albuquerque, New Mexico, USA.
Can a jacket seal be included with the connectors?
Yes, a 200ECS jacket seal can be included by adding an "-S" suffix to the catalog number, which is highly recommended.
What is the catalog number for the test point cap?
The catalog number for the test point cap is 156-7.
Are these connectors compliant with industry standards?
Yes, these connectors are IEEE 386 compliant, ANSI certified, and Rural Utilities Service (RUS) accepted.
What is the purpose of the capacitive test point?
The capacitive test point allows for testing of the circuit to determine the presence of voltage.
Do these elbows have an optional test point?
Yes, both repair and replacement elbows are available with an optional built-in capacitive test point to allow testing of the circuit for voltage presence.
How much extra length does the replacement elbow provide?
The replacement elbow provides a net gain of 8 7⁄8 inches in length due to its extended-length contact and elbow housing.
How much extra length does the repair elbow provide?
The repair elbow provides a net gain of 3 1⁄4 inches in length due to its extended housing and compression lug.
What voltage classes do these elbows support?
The ABB Elastimold loadbreak repair and replacement elbows are available for 15 kV and 25 kV voltage classes.
How to Install Elastimold 167RLR/168RLR Loadbreak Replacement Elbow Connectors
This guide provides step-by-step instructions for the safe installation, cable preparation, and connection of Elastimold 167RLR and 168RLR Loadbreak Replacement Elbow Connectors, converting livefront terminations to deadfront.
Estimated time: 2h
Tools needed:
Probe Wrench, Wire brush, Hotstick, Wire strippers, Cutting tool, Suitable sensing device (for 168RLR voltage test)
Supplies needed:
Elastimold 167RLR or 168RLR Replacement Elbow Connector Housing, Compression Lug, Probe, Lubricant (supplied, do not substitute), Hose Clamp, No. 14 AWG / 2.5mm copper wire (or equivalent), Appropriate connector for neutral to ground, Silicone grease (for 168RLR test point cap)
- Perform Pre-Installation Checks and De-energize Apparatus
DANGER: All apparatus must be de-energized during installation or removal of part(s). Check contents of package to ensure they are complete and undamaged. Check all components for proper fit with cable and/or mating products. Check probe threads by threading the probe into the compression lug; if resistance is encountered, check for damage and replace. Read entire installation instructions before starting and have all required tools at hand, maintaining cleanliness throughout the procedure.
- Remove Existing Livefront Termination
Remove the rubber cap from the terminator. Cut off the connector at the top of the terminator. Disconnect the ground lead from the base of the terminator. Finally, remove the terminator housing from the cable.
- Prepare Cable for Termination
Train cables to be straight and in-line with the bushing centerline. Cut the cable to measure 10-1/2 inches from the bushing centerline. If the insulation shield measures less than 6-1/2 inches, continue. If greater, consult an ELASTIMOLD representative. Remove 1-3/8 inches of cable insulation from the end of the cable, ensuring to cut squarely and without nicking the conductor.
- Install Compression Lug
Wire brush the bare aluminum conductor and immediately install the compression lug. Rotate the lug to spread the inhibitor. Position the compression lug so its contact threaded hole aligns with the bushing bore. Start crimping at the crimp line mark, rotating 180 degrees for each successive crimp. Carefully wipe any excessive inhibitor from the outside of the lug and cable.
- Assemble Elbow Housing
Lubricate the cable insulation and the inside of the elbow housing with the supplied lubricant; do not substitute. Slide the elbow connector onto the cable using a back and forth twisting motion, then wipe off all excess grease. Align the elbow with the compression lug’s threaded hole. Thread the probe into the lug by hand, taking care not to cross-thread. The probe should turn freely for approximately four turns before becoming snug. Tighten with the probe wrench until the wrench bends.
- Connect Concentric Neutral
Using a separate copper wire (No. 14 AWG / 2.5mm) or equivalent, insert one end through the grounding eye on the elbow and twist it tight, taking care not to damage the eye. Twist all neutral wires together and connect them to ground using an appropriate connector, providing adequate slack in the wires for elbow operation. Add the supplied hose clamp as shown in the diagram and tighten it snugly, but do not overtighten.
- Connect Elbow to Bushing Plug (Loadmake Operation)
Lubricate the receptacle portion of the elbow connector and the mating bushing with the supplied lubricant ONLY IF THE TRANSFORMER AND ELBOW ARE KNOWN TO BE DE-ENERGIZED. Securely fasten a hotstick to the loadbreak connector pulling eye. Place the elbow connector receptacle area over the bushing plug, inserting the elbow male contact into the bushing until the first slight resistance is felt. Immediately push the elbow home with a fast, firm, straight motion to engage the internal lock on the elbow and bushing interface, applying sufficient force.
- Perform Voltage Test (168RLR ONLY)
If using a 168RLR model, remove the test point cap with a hotstick, peeling it off at an angle. WARNING: The voltage test point is a capacitance device, not directly connected to the conductor. Do not use conventional voltage measuring equipment. Test with a suitable sensing device made for use with capacitive test points. Treat the elbow as energized until the 'no voltage' indication is confirmed by other means to prevent serious injury. After testing, clean and lubricate the inside surface of the cap with silicone grease and replace it on the test point.
