Contact for Pricing
Minimum Qty: 15
Multiplier: 15
*Contact for lower quantities*

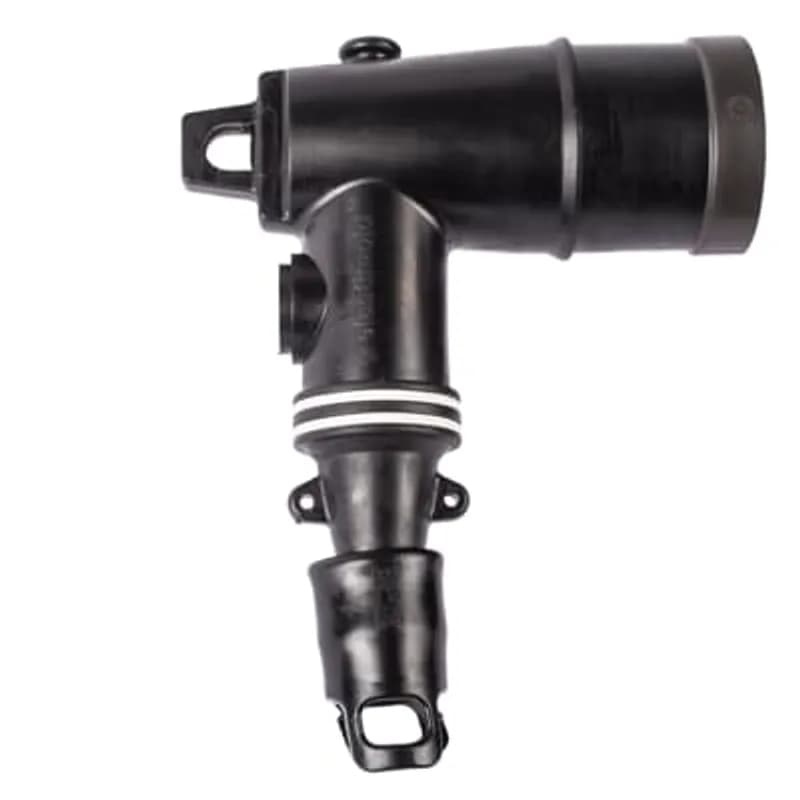

Overview
- 15kV operating voltage
- 200 Amp current rating
- Accommodates .890 - 1.220 inch cable insulation diameter
- Designed for 4/0 stranded wire size
- Bi-metal compression lug for versatile conductor connection
Specifications
Amperage Rating | 200 A |
Application | The 161LRJS is designed for Connecting to and Operating 15kV Class, 200 Amp Distribution apparatus. It Provides a Convenient Method to Connect/Disconnect Cable and Equipment on Power Distribution Systems |
Color | Black |
Conductor Range | 4/0 STR/COMPR AWG , 250 kcmil |
Environmental Conditions | Products are designed and constructed for all applications including Padmount, Subsurface, Vault, Indoor, Outdoor, Direct Sunlight, Direct Buried and Continuously Submerged in Water |
Insulation | True |
Material | Housing - EPDM-Rubber |
Special Features | Fully Shielded, Fully Submersible Molded Rubber Housing, 100 Percent Peroxide-Cured Construction includes Insulation and Conductive EPDM Materials. Provision for Hot Stick Operation. Provision for Ground Wire Connection. Built in Cable Jacket Seal |
Standard | ANSI/IEEE Standard 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Loadbreak Elbow Connector and Jacket Seal |
Voltage Rating | 15 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |
656ETP-H0270-DRG-S
600 Series Elbows with IEEE 386 Capacitive Test Points, 600 Amp, 15kV, Test and Ground Connector Kit, Insulated Cap. 200ECS Cold-Shrinkable Jacket Seal Included. Cable Insulation Diameter 0.850 inch to 1.050 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 4/0 /Compacted Solid 250 /mmSquared Compact 125.
162LR-A-5200
15kV 200 Amp, Loadbreak Elbow Connector with Test Point, .575 inch - .740 Inch Cable Insulation Diameter, #4 Stranded Wire Size, Bi-Metal Compression Lug
755LR-M0320-SG3
35kv, 600 Amp, Loadbreak, Elbow, with Sealing Kit, Cable Insulation Diameter 1.370-1.630 inches, Aluminum Lug, Conductor Size 500 Compact/Solid.755LR-M0290
600 Amp, 35kV, 600 Series Deadbreak Elbow (with Insulated Plug, Cap, Stud, Lug and Cable Adapter). Cable Insulation Diameter 1.370 inch to 1.630 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 300 /Compacted Solid 350 /mmSquared Compact 150.755LR-L2290
600 Amp, 35kV, 600 Series Deadbreak Elbow (with Insulated Plug, Cap, Stud, Lug and Cable Adapter). Cable Insulation Diameter 1.180 inch to 1.465 inch. Copper Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 300 /Compacted Solid 350 /mmSquared Compact 150.755LR-M0260
600 Amp, 35kV, 600 Series Deadbreak Elbow (with Insulated Plug, Cap, Stud, Lug and Cable Adapter). Cable Insulation Diameter 1.370 inch to 1.630 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 3/0 /Compacted Solid 4/0 /mmSquared Compact 95.755LR-L0330
600 Amp, 35kV, 600 Series Deadbreak Elbow (with Insulated Plug, Cap, Stud, Lug and Cable Adapter). Cable Insulation Diameter 1.180 inch to 1.465 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 500 /Compacted Solid 600 /mmSquared Compact 250/300.Frequently Asked Questions
What is the cable insulation diameter range for this elbow connector?
The ABB 161LRJS-D-5270 elbow connector is designed to accommodate cable insulation diameters ranging from .890 inches to 1.220 inches.
What wire size is this connector suitable for?
This connector is specified for use with 4/0 stranded wire size.
What type of lug does the 161LRJS-D-5270 feature?
The 161LRJS-D-5270 features a bi-metal compression lug.
What is the current rating of this ABB elbow connector?
The ABB 161LRJS-D-5270 elbow connector has a current rating of 200 Amps.
What is the voltage rating for the 161LRJS-D-5270 connector?
The 161LRJS-D-5270 connector has a voltage rating of 15kV.
How to Install 161LRJS/162LRJS Loadbreak Elbow Connectors
This guide provides step-by-step instructions for the safe and proper installation of 161LRJS (without test point) and 162LRJS (with test point) Loadbreak Elbow Connectors with Jacket Seal on UD cable.
Estimated time: 1h 30m
Tools needed:
Probe wrench, Wire brush, Crimp tool, Wrench, Hotstick
Supplies needed:
161LRJS or 162LRJS Elbow Connector Housing, Compression Lug, Probe, Lubricant (supplied), Sealing strips (mastic), Vinyl tape, Copper wire (No. 14 AWG / 2.5mm), Appropriate connector (for neutral to ground)
- Perform Pre-Installation Checks and Safety Measures
DANGER: Ensure all apparatus is de-energized during installation or removal. Do not touch or move energized products. Inspect all parts for damage, proper rating, and compatibility with mating parts. Check package contents for completeness and ensure proper fit with cable and/or mating products. Thread the probe into the compression lug to check for resistance; replace damaged components if resistance is encountered. Read all instructions thoroughly before beginning. Gather all required tools and maintain cleanliness throughout the procedure. If a test point cap is not installed, lubricate the cap and test point, then install the cap.
- Train the Cable
Train the cable to ensure sufficient slack for ease of operation. Mark the centerline of the bushing with tape. Pull extra cable 24-26 inches beyond the centerline to provide extra length for concentric neutral wires or grounding braid. Remove the outer jacket 7 3/4 to 8 inches back from the centerline. Unwrap the neutral wire back past the bushing centerline. Cut the excess cable squarely at the centerline of the bushing.
- Prepare the Cable End
Wrap one strip of mastic, stretching slightly, around the cable jacket. Bend all neutral wires straight back over the mastic and along the cable, pressing them firmly into the mastic. Wrap a second strip of mastic completely around the outer jacket, overlapping the imbedded neutral wires. Use a third strip of mastic if needed to build up the outer diameter in the area of the first mastic location. Cover all mastic with vinyl tape. Remove the insulation shield and insulation from the cable end, cutting squarely and taking care not to nick the conductor. Wire brush bare aluminum conductors and immediately install the compression lug. Rotate the lug to spread the inhibitor. Position the compression lug so its contact threaded hole aligns with the bushing bore. Crimp the lug according to the crimp chart, starting at the crimp line mark and rotating 180 degrees for each successive crimp. Carefully wipe any excessive inhibitor from the outside of the lug and cable. Remove the insulation shield as shown in the template and bevel the insulation end a maximum of 1/8 inch. Thoroughly clean the insulation to remove all traces of conductive residue.
- Assemble the Elbow
Lubricate the cable insulation and the inside of the elbow housing with the supplied lubricant. DO NOT SUBSTITUTE other lubricants, as they may be harmful to the product or its mating parts. Keep the insulation clean and free of dirt and grime. Slide the elbow connector onto the cable using a back-and-forth twisting motion. Wipe off all excess lubricant. Align the elbow with the compression lug’s threaded hole. Thread the probe into the lug by hand, ensuring not to cross-thread. The probe must turn freely for approximately four turns before becoming snug. Tighten the probe with a wrench until the wrench bends, indicating sufficient torque.
- Connect the Concentric Neutral
Pull the hood over the concentric neutral seal area on the cable by pulling the tabs and/or rolling the seal down. Insert one end of a separate copper wire (No. 14 AWG / 2.5mm) or equivalent through the grounding eye on the elbow. Twist the wire tightly, taking care not to damage the eye. Twist all neutral wires together and connect them to ground using an appropriate connector. Ensure adequate slack in the wires for future elbow operation.
- Connect Elbow to Bushing Plug
Lubricate the receptacle portion of the elbow connector and the mating bushing with the supplied lubricant. LUBRICATE ONLY IF THE TRANSFORMER AND ELBOW ARE KNOWN TO BE DE-ENERGIZED. Operate the connection using a fully insulated hotstick type live-line tool, following utility safe work practices for required tool length. Securely fasten the hotstick to the loadbreak connector pulling eye. Insert the probe tip approximately 2 inches (50mm) into the bushing. Immediately push the elbow home with a fast, firm, straight motion, using sufficient force to engage the internal lock on the elbow connector and bushing interface.
