Contact for Pricing

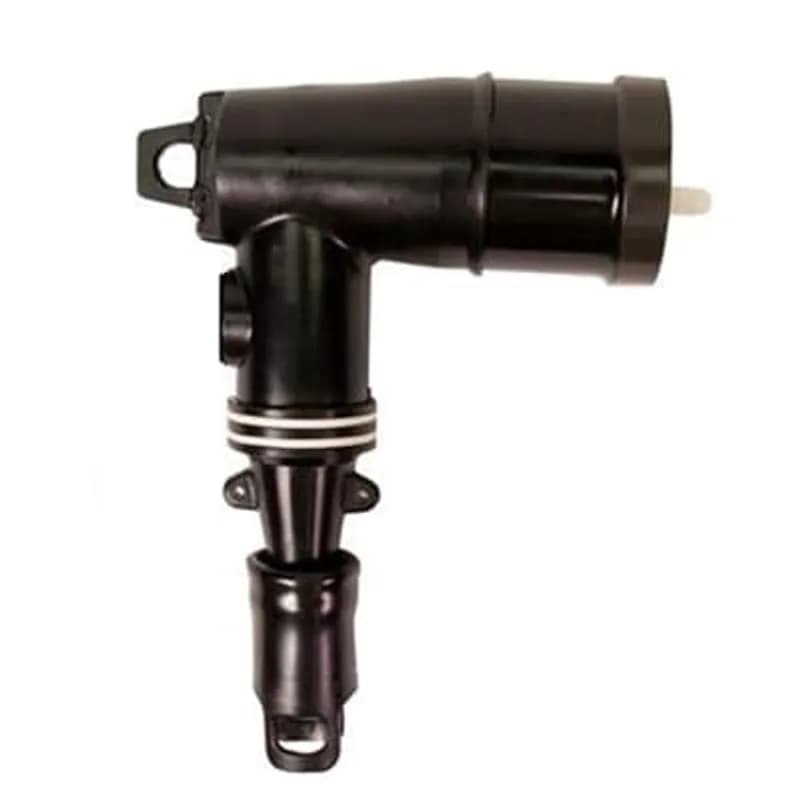

Overview
- 15KV rated, 200 Amp continuous current capacity
- Loadbreak design for safe energized connections/disconnections
- Sealing jacket protects against moisture and contaminants
- Bi-metal compression lug for #1/Solid 1/0 AWG conductors (42.41 mm²)
- Cable insulation diameter range: 0.890" to 1.220"
Specifications
Amperage Rating | 200 A |
Application | The 161LRJS is designed for Connecting to and Operating 15kV Class, 200 Amp Distribution apparatus. It Provides a Convenient Method to Connect/Disconnect Cable and Equipment on Power Distribution Systems |
Color | Blue |
Color | Black |
Conductor Range | #1 STR/COMPR AWG , 1/0 SOL/COMPT AWG |
Connection | Compression |
Connection Type | Compression Lug |
Current Rating | 200 A |
Environmental Conditions | Products are designed and constructed for all applications including Padmount, Subsurface, Vault, Indoor, Outdoor, Direct Sunlight, Direct Buried and Continuously Submerged in Water |
Insulation | True |
Material | Bi-Metal |
Material | Housing - EPDM-Rubber |
Series | Loadbreak Elbow |
Size | Cable Insulation Diameter 0.890 inch to 1.220 inch |
Special Features | Fully Shielded, Fully Submersible Molded Rubber Housing, 100 Percent Peroxide-Cured Construction includes Insulation and Conductive EPDM Materials. Provision for Hot Stick Operation. Provision for Ground Wire Connection. Built in Cable Jacket Seal |
Standard | ANSI/IEEE Standard 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Loadbreak Elbow Connector and Jacket Seal |
Voltage Rating | 15 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |
167RLR-G-5230
15kV 200 Amp, Loadbreak Replacement Elbow Connector, Repair Elbow has extended length contact and elbow housing resulting in a net gain of 8-7/8 inches in length. Bi-Metal Contact. Cable Insulation Diameter 0.760 inch to 0.950 inch. Conductor Size AWG Compressed Stranded #1/Solid 1/0 /mmSquared 42.41.
755LRTP-L0280-DRG
600 Amp, 35kV, Stick-Op Connector Kit with Test Point, Insulated Cap and Reducing Tap Plug. Cable Insulation Diameter 1.180 inch to 1.465 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 250 or Compacted Solid 300.
755LR-N2320
600 Amp, 35kV, 600 Series Deadbreak Elbow (with Insulated Plug, Cap, Stud, Lug and Cable Adapter). Cable Insulation Diameter 1.515 inch to 1.780 inch. Copper Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 450 /Compacted Solid 500/550.755LRTP-P0410-DRG
600 Amp, 35kV, Stick-Op Connector Kit with Test Point, Insulated Cap and Reducing Tap Plug. Cable Insulation Diameter 1.725 inch to 1.935 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 1000.
161LRJS-C-5230
15kV 200 Amp, Loadbreak Jacket Seal Elbow Connector, .805 inch - 1.060 Inch Cable Insulation Diameter, #1 Stranded Wire Size, Bi-Metal Compression Lug161LRJS-C-5240
15kV 200 Amp, Loadbreak Jacket Seal Elbow Connector, .805 inch - 1.060 Inch Cable Insulation Diameter, 1/0 Stranded Wire Size, Bi-Metal Compression Lug755LRTP-M0330-DRG
600 Amp, 35kV, Stick-Op Connector Kit with Test Point, Insulated Cap and Reducing Tap Plug. Cable Insulation Diameter 1.370 inch to 1.630 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 500 /Compacted Solid 600 /mmSquared Compact 250/300.Frequently Asked Questions
What material is the pulling eye made from?
The pulling eye is made from robust stainless steel, promoting durable hotstick control.
What is the Elastimold 200 amp loadbreak elbow?
It is an enhanced loadbreak elbow for 15 kV and 25 kV series, incorporating innovative design for safety, flexibility, and cost reduction.
What are the voltage ratings for this loadbreak elbow?
The Elastimold 200 amp loadbreak elbow is designed for 15 kV and 25 kV series applications.
What are the key safety features of the enhanced elbow?
It features improved insulation for 15 kV elbows, rigid probe support for proper switching, and dual grounding eye positions.
Does the elbow have a no-stick interface, and what is its benefit?
Yes, it has a no-stick interface when used with Elastimold bushings, ensuring lifetime ease of operation and preventing sticking.
What flexibility features does the enhanced elbow offer?
It offers additional sizes, improved wider cable ranges, an easy order system, and an optional integral jacket seal.
How does the enhanced elbow reduce life cycle costs?
It is optimized for switching operations, provides lifetime ease of operation and non-stick performance with Elastimold bushings, and has an improved seal system.
What standards and certifications does the product meet?
The enhanced Elastimold loadbreak elbow is IEEE 386 compliant, ANSI certified, and has Rural Utilities Service (RUS) acceptance.
What is the significance of RUS acceptance?
RUS acceptance from the USDA authorizes its use in rural infrastructure construction and improvements.
What is the purpose of the rigid probe support?
The rigid probe support ensures proper switching and easy probe installation.
How to Install 161LRJS/162LRJS Loadbreak Elbow Connectors
This guide provides step-by-step instructions for the safe installation and assembly of 161LRJS (without test point) and 162LRJS (with test point) Loadbreak Elbow Connectors, including cable preparation, elbow assembly, and neutral connection.
Estimated time: 1h 30m
Tools needed:
Probe Wrench, Crimp tool, Wire brush, Hotstick, Suitable voltage sensing device (for 162LRJS test point)
Supplies needed:
161LRJS or 162LRJS Elbow Connector Kit (includes Housing, Compression Lug, Probe, Lubricant, Sealing strips), Mastic strips (if not included in kit or additional needed), Vinyl tape, No. 14 AWG / 2.5mm copper wire or equivalent, Appropriate connector for neutral wires, HV insulated cap(s) or connector(s) (if replacing shipping covers), Silicone lubricant (for test point cap, if not supplied with kit)
- Perform Initial Safety Checks and Component Inspection
DANGER: Ensure all apparatus is de-energized before beginning installation. Do not touch or move energized products. This product must be installed only by competent personnel trained in high voltage electrical equipment safety practices. Inspect all parts for damage, proper rating, and compatibility with the cable and mating products. Check package contents for completeness. If supplied with protective shipping covers, remove them and replace with appropriate HV insulated cap(s) or connector(s) before submerging or energizing. Check threads by threading the probe into the compression lug; replace damaged components if resistance is encountered. If installing a 162LRJS, lubricate the test point and cap, then install the cap if it's not already installed.
- Train and Prepare the Cable
Train the UD cable to ensure sufficient slack for ease of operation. Provide an extra length of 24-26 inches of concentric neutral wires or grounding braid beyond the bushing centerline. Remove the outer jacket 7 3/4 to 8 inches back from the centerline. Unwrap the neutral wire past the bushing centerline. Cut the excess cable squarely at the centerline of the bushing.
- Prepare Cable Insulation and Install Lug
Wrap one strip of mastic, stretching slightly, around the cable jacket. Bend all neutral wires straight back over the mastic and along the cable, pressing them into the mastic. Wrap a second strip of mastic completely around the outer jacket, overlapping the imbedded neutral wires. Use a third strip if needed to build up the outer diameter. Cover all mastic with vinyl tape. Remove the insulation shield and insulation from the cable end, cutting squarely without nicking the conductor. Wire brush bare aluminum conductors immediately and install the compression lug. Position the lug so the contact threaded hole aligns with the bushing bore. Crimp the lug according to the crimp chart, starting at the crimp line mark and rotating 180 degrees for each successive crimp. Carefully wipe excessive inhibitor from the outside of the lug and cable. Remove the insulation shield as shown in the template and bevel the insulation end a maximum of 1/8 inch. Thoroughly clean the insulation to remove all traces of conductive residue.
- Assemble the Elbow Connector
Lubricate the cable insulation and the inside of the elbow housing with the supplied lubricant. DO NOT SUBSTITUTE other lubricants, as they may be harmful. Keep the insulation clean. Slide the elbow connector onto the cable using a back-and-forth twisting motion. Wipe off all excess lubricant. Align the elbow with the compression lug's threaded hole. Thread the probe into the lug by hand, ensuring not to cross-thread. The probe should turn freely for approximately four turns before becoming snug. Tighten the probe with the supplied wrench until the wrench bends, indicating proper torque.
- Connect the Concentric Neutral Wires
Pull the hood over the concentric neutral seal area on the cable by pulling the tabs or rolling the seal down. Insert one end of a separate No. 14 AWG (2.5mm) copper wire or equivalent through the grounding eye on the elbow, twisting tightly without damaging the eye. Twist all neutral wires together and connect them to ground using an appropriate connector. Ensure adequate slack in the wires to allow for elbow operation.
- Connect Elbow to Mating Bushing
Lubricate the receptacle portion of the elbow connector and the mating bushing with the supplied lubricant. IMPORTANT: Lubricate only if the transformer and elbow are known to be de-energized. Use a fully insulated hotstick tool for operation; DO NOT OPERATE BY HAND. Refer to the operating instructions for proper loadmake or loadbreak procedures.
- Perform Voltage Test (162LRJS Only)
If installing a 162LRJS with a test point, perform a voltage test to determine if the circuit is energized. Remove the test point cap with a hotstick, peeling it off at an angle. WARNING: The voltage test point is a capacitance device, not directly connected to the conductor. Do not use conventional voltage measuring equipment. Follow the manufacturer's directions for the specific sensing device used. Treat the elbow as energized until the 'no voltage' indication is confirmed by other means, as contamination or incorrect equipment can provide a false reading. After testing, clean and lubricate the inside surface of the cap with silicone lubricant and replace it on the test point.
